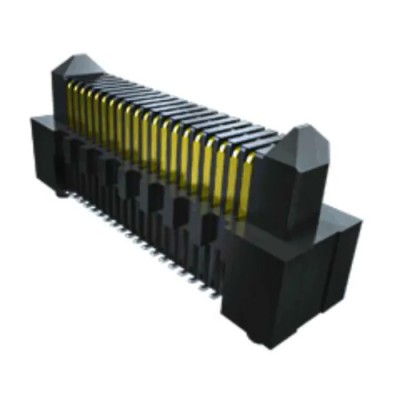

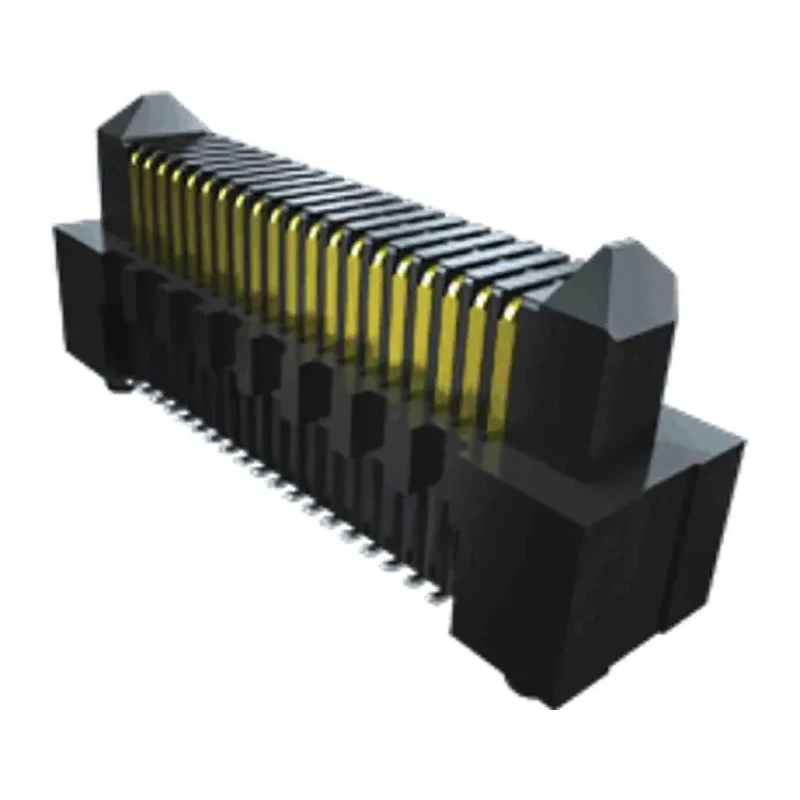

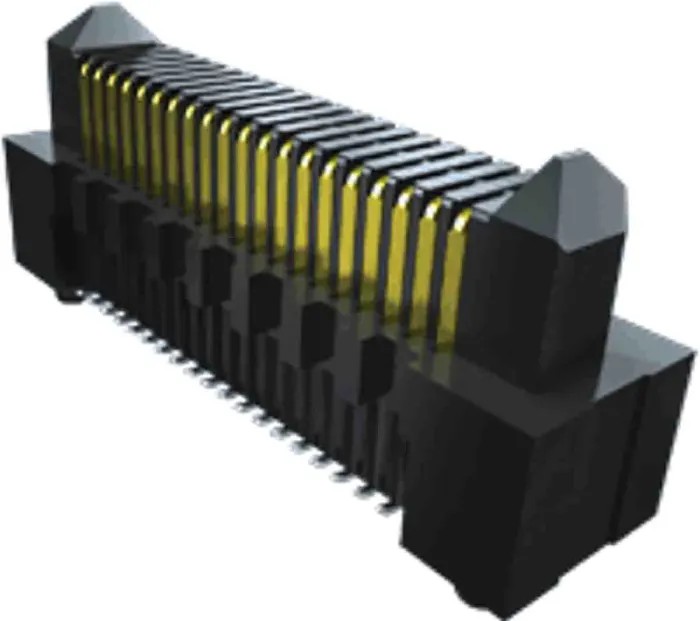

Samtec ERM8 Series Vertical Surface PCB Header 50 Contacts 0.8 mm Pitch 2 Row Shrouded

Samtec ERM8 ERM8-025-01-L-D-EM2-DS-L-TR is a high-performance vertical surface PCB header designed for board-to-board connectivity applications. This model features 50 male contacts with a 0.8 mm pitch arranged in two rows, ensuring compact and efficient electronic assembly.

The connector utilizes black Liquid Crystal Polymer (LCP) housing material, offering excellent durability and thermal stability. Contacts are made from phosphor bronze and plated with gold, providing excellent corrosion resistance and reliable electrical conductivity. The shrouded design enhances connector protection and alignment during mating.

This PCB header supports a maximum current of 1.4 A and nominal voltage rating of 318 V, suitable for a wide range of electronic systems. Its vertical orientation and surface mount technology (SMT) mount type facilitate easy and robust PCB integration for industrial and commercial electronics manufacturing.

Operating temperature ranges from -55°C to 125°C, making it suitable for use in diverse environments including industrial, manufacturing, telecommunications, and aerospace applications.

Additional features include 360-degree metal shielding to reduce electromagnetic interference (EMI), and a 1.5 mm contact wipe that ensures secure and stable signal transmission. The solder termination type ensures strong mechanical and electrical connection to the PCB.

Designed for board-to-board applications with surface mounting. High-quality black Liquid Crystal Polymer housing for durability. Gold-plated phosphor bronze contacts for conductivity and corrosion resistance. Exceptional operating temperature range from -55°C to 125°C.

Rated for 318 V and 1.4 A electrical specifications. Shrouded and vertical orientation for connector protection and efficient layout. 360º metal shielding minimizes EMI for signal integrity. 1.5 mm contact wipe ensures reliable connections.

Male contact gender with solder termination type.

Samtec’s ERM8 series is widely used in industrial automation, communication systems, aerospace electronics, and other high-reliability sectors. This product is suited for engineers and designers seeking rugged and compact PCB connectors for high-speed signal applications.
