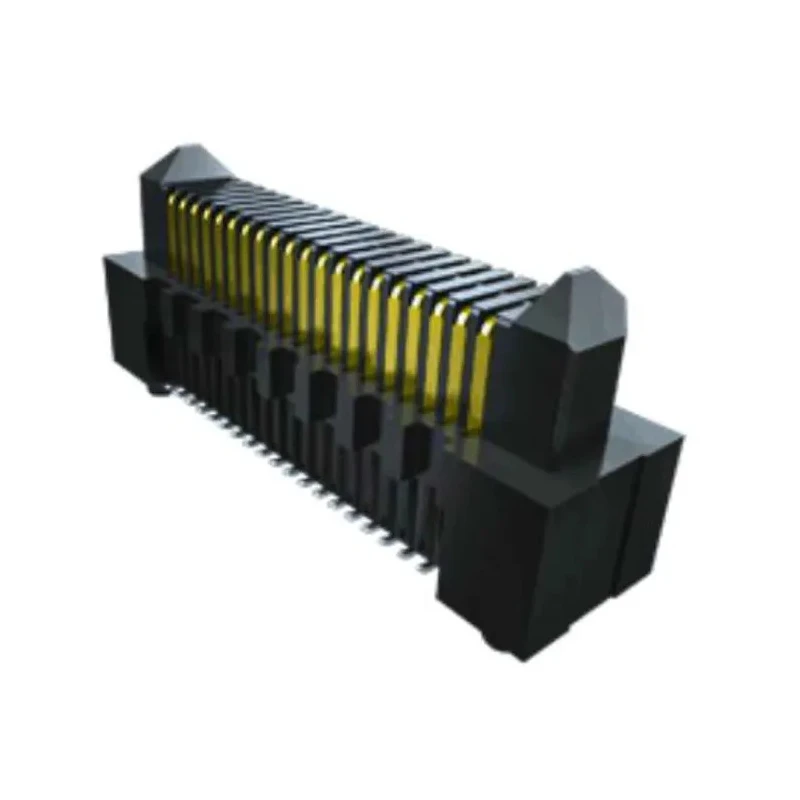

Samtec ERM8 Series Vertical Surface PCB Header 100 Contacts 0.8 mm Pitch 2 Row Shrouded
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 318V |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 1.4A |
| Model | ERM8 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | ERM8 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 100 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- The PCB header features a vertical orientation with a shrouded design for enhanced protection.
- It has 100 phosphor bronze contacts plated with 0.25 µm gold for reliability and durability.
- The current rating is 1.4A with a maximum operating voltage of 318V.
- Constructed from liquid crystal polymer housing for high-performance thermal characteristics.
- Operating temperature range spans from -55°C to 125°C, suitable for demanding environments.
- The termination type is solder, and the connector system is board-to-board surface mount.
- Employs Edge Rate contact system supporting high mating cycles and up to 56 Gbps PAM4 data transmission.
- Row pitch and contact pitch both measure 0.8 mm, making it compact for dense PCB layouts.
Product Description
Samtec ERM8 ERM8-050-05.0-L-DV-TR is a vertical surface mount PCB header designed for high-speed electronic systems requiring robust and reliable board-to-board connections. It features 100 male contacts arranged in 2 rows with a fine 0.8 mm pitch, maintaining signal integrity for high-frequency signals up to 56 Gbps PAM4 performance.
The housing is made from liquid crystal polymer, providing excellent thermal stability and mechanical strength. Contacts are manufactured from phosphor bronze with a 0.25 μm thick gold plating to resist wear and corrosion, thus ensuring a long operational lifespan.
The shrouded connector design safeguards contacts from mechanical damage and contamination while aiding proper mate alignment. Its solder termination type and surface mount configuration facilitate straightforward PCB assembly.
Operating temperature ranges from -55°C to 125°C allowing use in harsh industrial and commercial electronics environments. The connector system supports board-to-board coupling suitable for applications in telecommunications, data communication equipment, and industrial controls.
Vertical, shrouded 2-row PCB header with 100 contacts. Edge Rate contact system supports high mating cycles and high-speed data transmission. Phosphor bronze contacts with 0.25 µm gold plating for enhanced durability. Liquid crystal polymer housing for thermal and mechanical resilience.
Wide operating temperature range from -55°C to 125°C. Solder termination surface mount type for PCB assembly. Current rating of 1.4A and maximum voltage 318V for reliable electrical performance.
This PCB Header is suitable for industrial, telecommunications, data communications, and electronic manufacturing applications requiring dense, reliable board connections. Featuring advanced material construction and design, it meets the demands of modern high-speed electronics.
Explore more high-quality PCB connectors and components within our Electronics & Electricals category at EnvMart for dependable sourcing and innovation-ready solutions.
