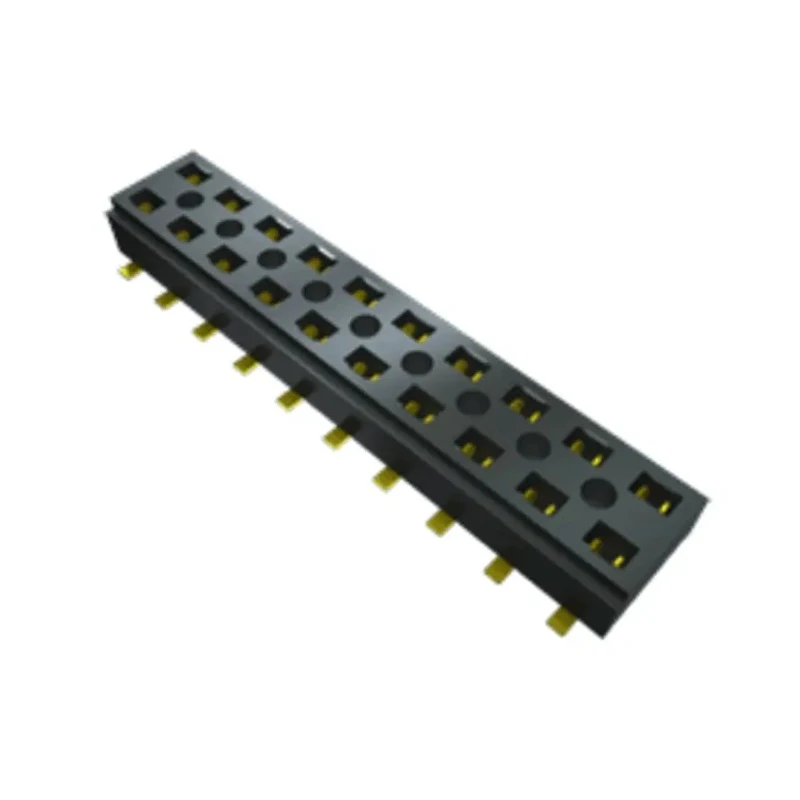

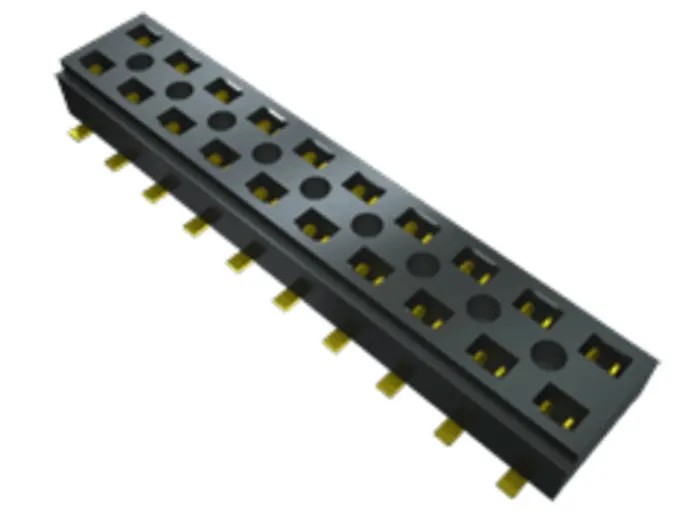

Samtec CLT Series Straight Surface PCB Socket 14-Contact 2 Row 2 mm Pitch Solder CLT-107-02-G-D-A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 4.1A |
| Model | CLT-107-02-G-D-A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | CLT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Tin |
| Number of Contacts | 14 |
Key Features
- Constructed with liquid crystal polymer housing for durability.
- Phosphor bronze contacts provide reliable conductivity.
- Gold over tin plating ensures corrosion resistance.
- Suitable for board-to-board connection applications.
- Current rating per pin is 4.1 amperes.
- Operates reliably from -55°C to 125°C temperature range.
- Surface mount type with straight orientation for easy PCB integration.
- RoHS compliant for environmental safety.
Product Description
Samtec CLT-107-02-G-D-A is a straight surface mount PCB socket from the CLT Series designed for high-reliability board-to-board connections. It comprises 14 contacts arranged in 2 rows with a precise 2 mm pitch to ensure accurate alignment and stability on the PCB.
The housing is made of robust black liquid crystal polymer, providing excellent insulation and mechanical endurance under demanding industrial conditions. Contacts are made from phosphor bronze and feature a gold-over-tin plating that ensures consistent signal conductivity and corrosion resistance over prolonged use.
This PCB socket supports a maximum current rating of 4.1 amps per pin, suitable for powering various electronic components. Its operating temperature range from -55°C to +125°C allows use in harsh environments such as industrial electronics, telecommunications, automotive electronics, and consumer devices requiring durable connectors.
The CLT series' dual wipe Tiger Claw contact system enhances connection reliability and durability over multiple mating cycles, reducing the risk of signal loss or mechanical failure. The termination method for this model is solder type with surface mounting, facilitating streamlined assembly processes in PCB manufacturing.
Liquid crystal polymer housing provides thermal and mechanical resilience. Phosphor bronze contacts with gold plating ensure conductivity and corrosion protection. Wide operating temperature range ensures utility across diverse environments.
14 contact pins arranged in two rows with 2 mm pitch for precise connector alignment. Designed for solder termination on surface-mounted PCBs to enhance manufacturing efficiency. RoHS compliance confirms adherence to environmental regulations.
This connector is essential for electronic assemblies requiring compact, reliable, and durable board-to-board connectors. It is compatible with various industrial, telecommunications, and consumer electronic devices where secure electrical connections are vital.
Explore EnvMart’s range of PCB Sockets and connectors for versatile solutions tailored to your electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating per pin for this model is 4.1 amperes, making it suitable for powering various electronic components.
This PCB socket operates reliably within a temperature range of -55°C to +125°C, allowing its use in harsh environments.
The housing of this model is constructed from liquid crystal polymer, which provides excellent insulation and mechanical endurance.
This PCB socket features 14 contacts arranged in 2 rows, ensuring precise alignment and stability on the PCB.
The termination method for this model is solder type, designed for surface mounting on PCBs to enhance manufacturing efficiency.
The contacts are made from phosphor bronze, which ensures reliable conductivity and durability over time.
Yes, this PCB socket is RoHS compliant, confirming adherence to environmental regulations.
The contacts in this model are arranged with a pitch of 2 mm, facilitating accurate alignment during assembly.
This model features a straight orientation, which simplifies PCB integration.
This PCB socket is part of the CLT series, designed for high-reliability board-to-board connections.
It is suitable for various applications including industrial electronics, telecommunications, automotive electronics, and consumer devices requiring durable connectors.
The country of origin for this PCB socket is India.
