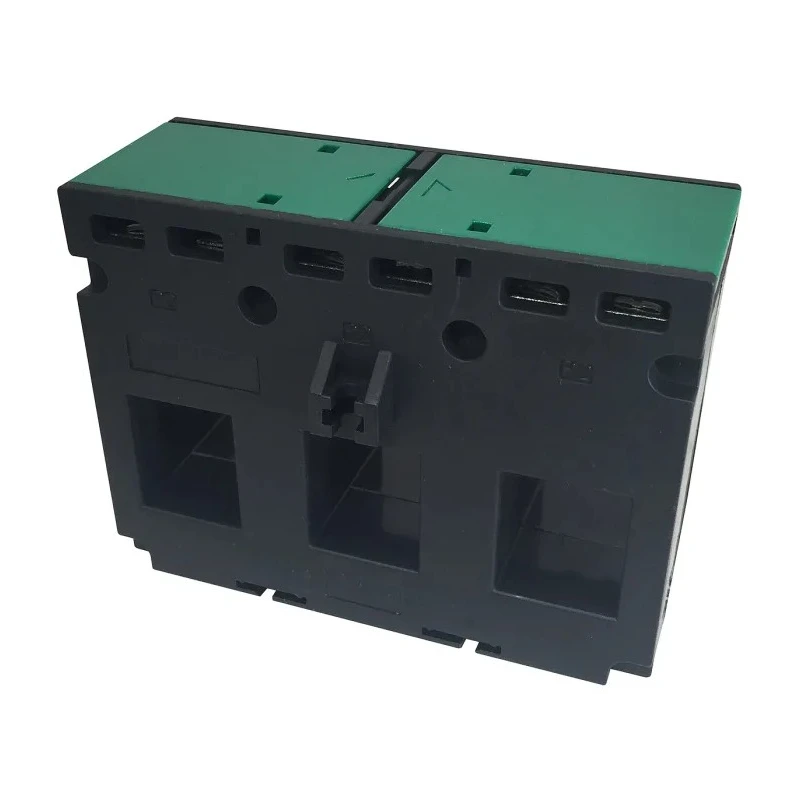

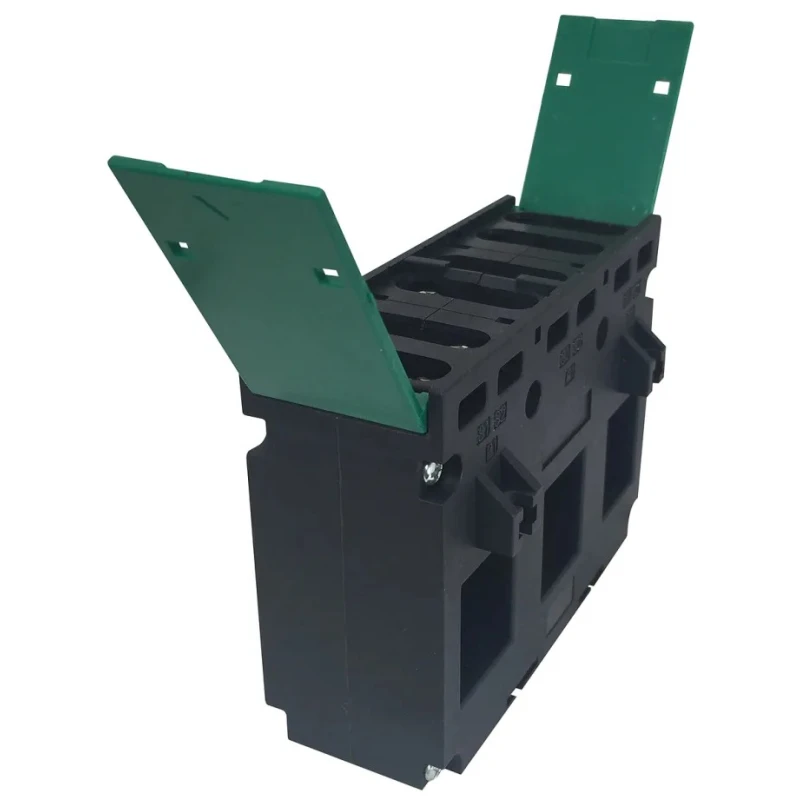

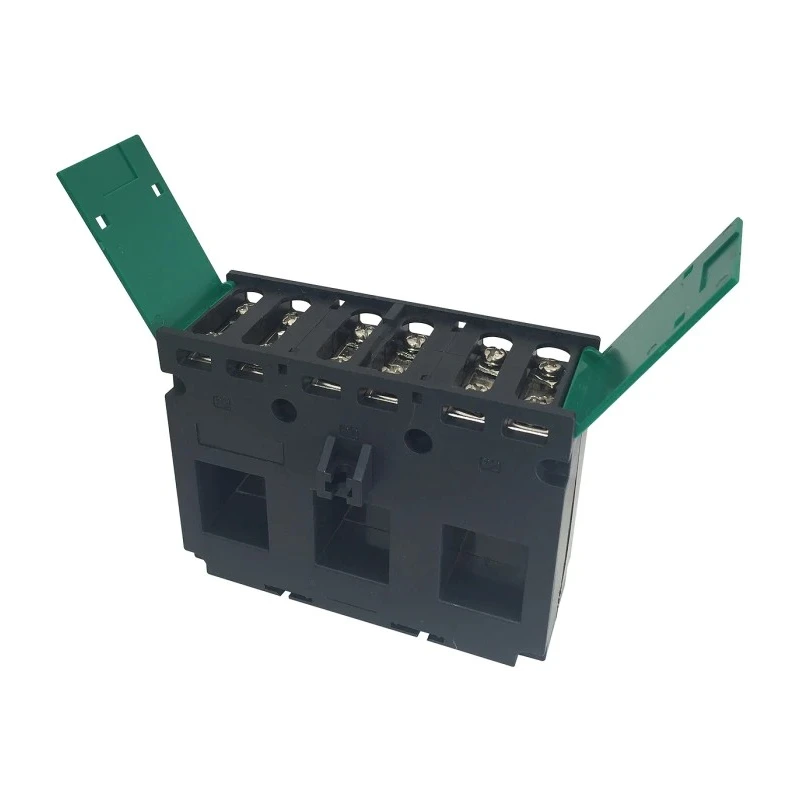

Sifam Tinsley OMEGA Series Current Transformer 100A 35mm Bore XN35-185031S000000
Specifications
| Country of Origin | China |
|---|---|
| Brand | Sifam Tinsley |
| Model | XN35-185031S000000 |
| Gross Weight | 650g |
| Width | 141mm |
| Mount Type | DIN Rail, Base |
| Series | OMEGA |
| Bore Diameter | 35mm |
| Secondary current | 5A |
| Terminal type | Screw |
| Primary Current | 100A |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| 3 sizes available | 15 x 25 mm, 21 x 25 mm & 31 x 31 mm |
| RS PRO Current Transformer 100 A 35mm BoreRS Stock No. | 171-8824Brand: RS PRO |
Key Features
- OMEGA series supports primary currents from 60A to 630A with a 5A secondary output.
- Compact 35mm bore diameter enables integration next to molded case circuit breakers.
- System voltage rating of 720V at 50-60 Hz frequency.
- Mountable via DIN Rail or base for versatile installation options.
- Self-extinguishing VO casing complies with UL-94 standard.
- Conforms to IEC/EN 60044-1, IEC 61869-1, and IEC 61010-2 standards.
- Accurate Class 1 performance ensures precise current measurement.
- Robust screw terminal type with wire sealable terminal covers enhances safety.
Product Description
Sifam Tinsley XN35-185031S000000 OMEGA Series Current Transformer is engineered for industrial and commercial electrical applications requiring precise current measurement and monitoring. It supports a primary current rating of 100A with a 5A secondary current output, optimized for use with a bore diameter of 35mm.
This current transformer operates reliably at system voltages up to 720V across frequencies of 50Hz to 60Hz, making it suitable for various power distribution systems. Its design allows for mounting flexibility, including DIN Rail and base mounting options, facilitating a convenient and compact installation directly adjacent to moulded case circuit breakers for space efficiency.
The device features a screw terminal type equipped with wire sealable covers to ensure secure and safe electrical connections, preventing accidental contact. The casing is constructed from self-extinguishing material classified as VO under UL-94 standards, providing enhanced fire safety.
Sifam Tinsley current transformers meet rigorous international standards such as IEC/EN 60044-1, IEC 61869-1, and IEC 61010-2, guaranteeing quality compliance and dependable operation in industrial, manufacturing, process control, and electrical automation systems.
OMEGA series supports primary current ranges from 60A to 630A with 5A secondary current output. Compact 35mm bore size enables easy installation next to circuit breakers. System voltage rating of 720V at 50-60 Hz frequency ensuring compatibility.
Mounting options include DIN Rail and base for versatile applications. Wire sealable screw terminal covers enhance connection safety. Self-extinguishing VO class casing improves fire resistance. Compliant with IEC/EN 60044-1, IEC 61869-1, and IEC 61010-2 standards.
Lightweight at 650 grams for easy handling and installation. Applicable in industrial automation, power monitoring, and control systems.
This Current Transformer is an essential component for electrical system monitoring, energy management, and safety in industrial and commercial environments. Explore the extensive range of Sifam Tinsley products for reliable power measurement and control solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a primary current rating of 100A with a secondary current output of 5A.
It can be mounted via DIN Rail or base, providing versatile installation options.
The bore diameter of this unit is 35mm, allowing for compact integration next to molded case circuit breakers.
It operates at a system voltage rating of 720V across frequencies of 50Hz to 60Hz.
It conforms to IEC/EN 60044-1, IEC 61869-1, and IEC 61010-2 standards, ensuring quality compliance.
The gross weight of this model is 650 grams, facilitating easy handling and installation.
It features screw terminals equipped with wire sealable covers for enhanced safety.
This unit provides Class 1 performance, ensuring precise current measurement.
It is applicable in industrial automation, power monitoring, and control systems.
The OMEGA series offers three sizes: 15 x 25 mm, 21 x 25 mm, and 31 x 31 mm.
The casing is made from self-extinguishing material classified as VO under UL-94 standards, enhancing fire safety.
This model operates reliably at a minimum frequency of 50Hz and a maximum frequency of 60Hz.
