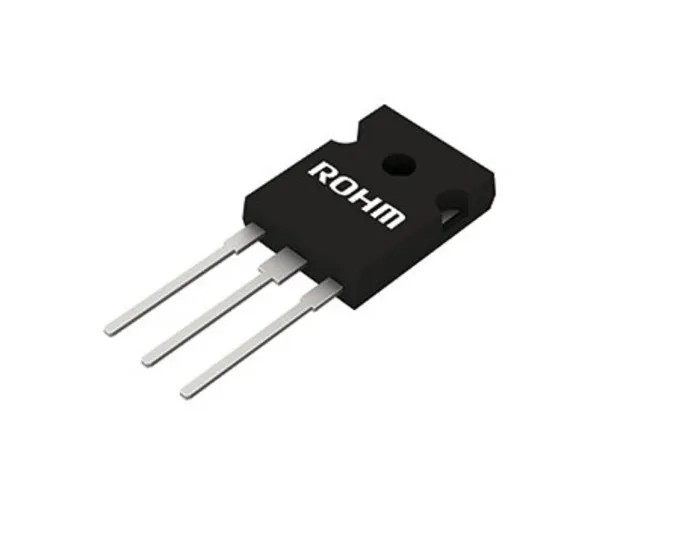

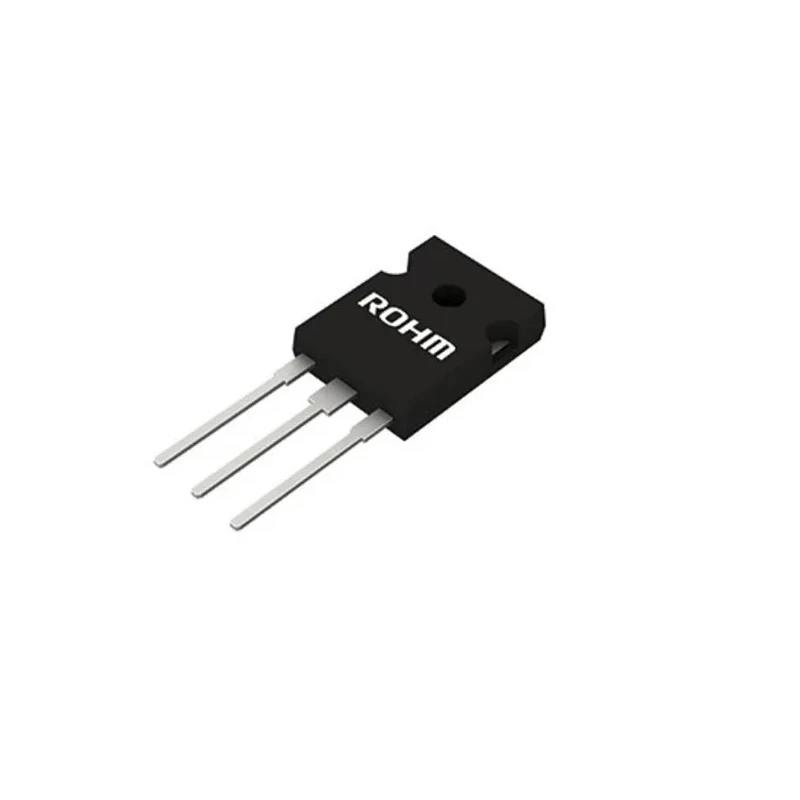

ROHM 650 V 30 A Rectifier & Schottky Diode Schottky 3-Pin TO-247N SCS230AE2GC11
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | SCS230AE2GC11 |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247N |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 650V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 300μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 400A |
| Maximum Forward Voltage Vf | 1.63V |
| Peak Reverse Recovery Time trr | 18ns |
Key Features
- Maximum continuous forward current rating of 30 A ensures reliable operation under high load.
- Peak reverse repetitive voltage of 650 V allows use in high-voltage environments.
- Featuring a 3-pin TO-247N through-hole package for easy PCB mounting.
- Schottky diode configuration provides low forward voltage drop and high-speed switching.
- Operates safely within a temperature range from -55°C to 175°C.
- Peak non-repetitive forward surge current capability of 400 A for transient handling.
- Maximum forward voltage of 1.63 V minimizes power losses during conduction.
- Peak reverse current limited to 300 μA enhancing device efficiency.
Product Description
The ROHM SCS230AE2GC11 is a 650 V, 30 A Schottky rectifier diode packaged in a 3-pin TO-247N form factor, designed for efficient and reliable power conversion in industrial and commercial applications.
This diode exhibits a maximum continuous forward current (If) of 30 A, allowing it to handle significant load currents in power supply circuits, uninterruptible power supplies, solar inverters, motor drives, air conditioners, and electric vehicle chargers.
Its Schottky barrier technology provides a low forward voltage (Vf) of 1.63 V, reducing conduction losses and improving overall system efficiency. The 650 V peak reverse repetitive voltage (Vrrm) rating and a low peak reverse current (Ir) of 300 μA make it suitable for high-voltage applications with minimal leakage.
The device operates across a wide temperature range from -55°C minimum up to 175°C maximum operating temperature, ensuring durability in harsh environments. The diode also supports transient surges with a peak non-repetitive forward surge current (Ifsm) of 400 A and a rapid peak reverse recovery time (trr) of 18 ns, enabling effective switching performance in high-frequency circuits.
Featuring a through-hole mount type and TO-247N package, it is convenient for assembly in power electronic equipment and devices. The ROHM SCS230AE2GC11 is RoHS compliant, affirming its environmental compliance and quality standards.
Maximum continuous forward current rating of 30 A. Peak reverse repetitive voltage up to 650 V. 3-pin TO-247N through-hole mounting package. Low forward voltage of 1.63 V for efficient conduction. Wide operating temperature range from -55°C to 175°C.
High surge current capability of 400 A. Fast recovery time of 18 ns supports high-frequency operations. Low peak reverse current of 300 μA. RoHS compliant for environmental safety.
This diode is ideal for industrial, laboratory, construction, HVAC, manufacturing, water treatment, agricultural, and commercial power electronics systems requiring efficient rectification and switching performance.
Explore more in our Schottky Diodes & Rectifiers category on EnvMart for reliable semiconductor solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 30 A, allowing it to handle significant load currents effectively.
This model has a peak reverse repetitive voltage of 650 V, making it suitable for high-voltage applications.
It features a 3-pin TO-247N through-hole package, which facilitates easy PCB mounting.
The maximum forward voltage of this diode is 1.63 V, which helps to minimize power losses during conduction.
This unit operates safely within a temperature range from -55°C to 175°C, ensuring functionality in various environments.
The diode can handle a peak non-repetitive forward surge current of 400 A, allowing it to manage transient conditions effectively.
The peak reverse current is limited to 300 μA, enhancing the efficiency of the device.
The peak reverse recovery time is 18 ns, which supports high-frequency switching applications.
Yes, the ROHM SCS230AE2GC11 is RoHS compliant, affirming its adherence to environmental safety standards.
This diode is suitable for use in power supply circuits, uninterruptible power supplies, solar inverters, motor drives, and electric vehicle chargers.
It is a Schottky rectifier, which provides low forward voltage drop and high-speed switching capabilities.
The TO-247N package has 3 pins, allowing for straightforward connections in electronic circuits.
