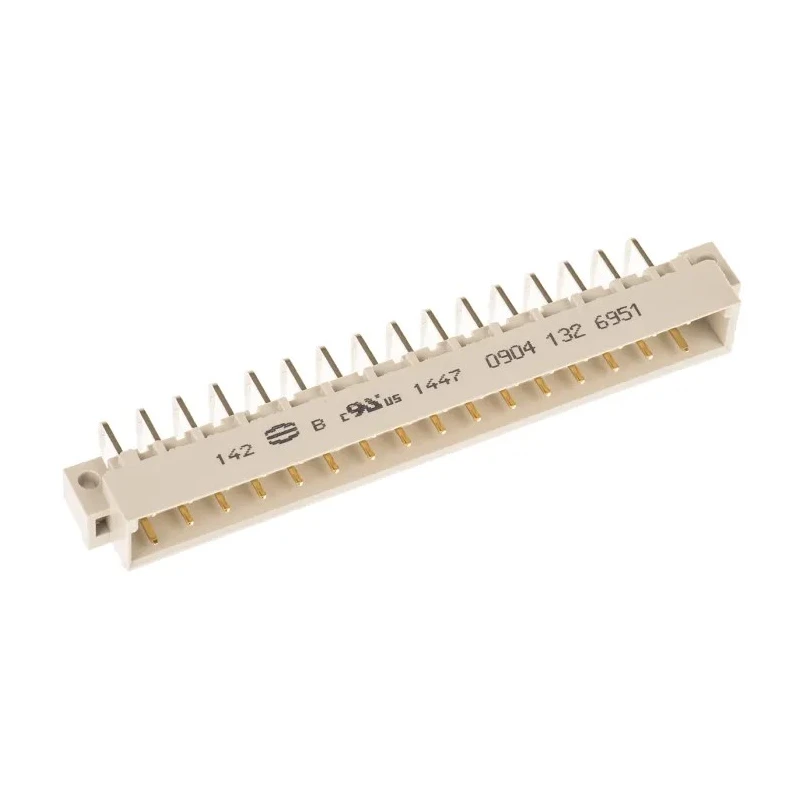

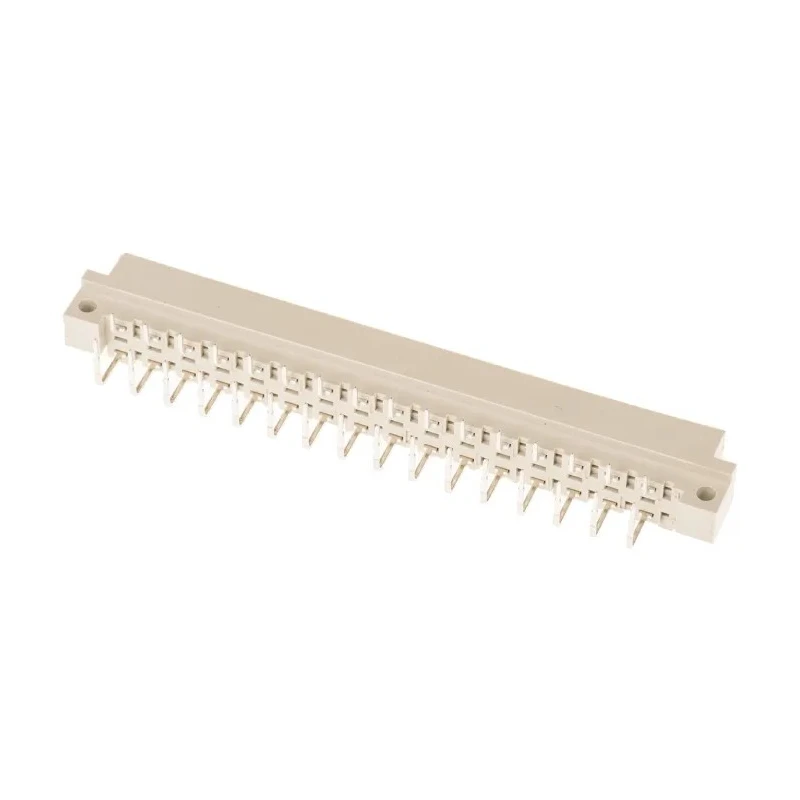

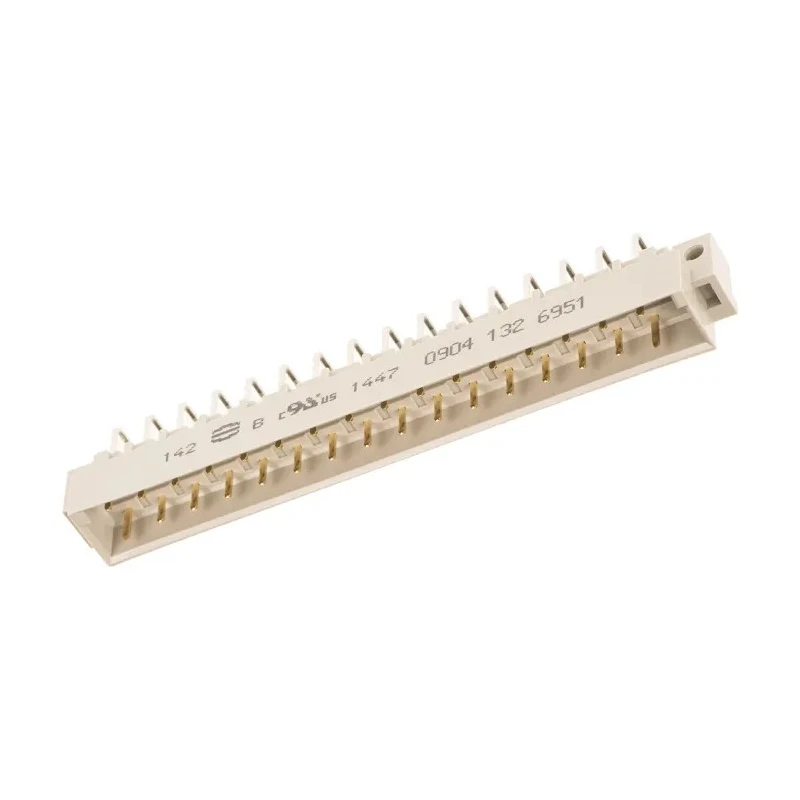

HARTING DIN 41612 32 Way 5.08 mm Pitch Through Hole Connector Type C/2 Solder Class C2 2 Row Male Right Angle 09041326951

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 32 Way 5.08 mm Pitch Through Hole Connector Type C/2 Solder Class C2 2 Row Male Right Angle 09041326951

Name: HARTING DIN 41612 32 Way 5.08 mm Pitch Through Hole Connector Type C/2 Solder Class C2 2 Row Male Right Angle 09041326951
Brand: HARTING
SKU: 162030



Category DIN 41612 Connectors Brand HARTING Condition New

Specifications

Country of Origin	India
Brand	HARTING
Orientation	Right Angle
Current	6A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	5.08mm
Contact Plating	Gold over Nickel
Number of Contacts	32
Contact Gender	Male
Connector Gender	Male
Maximum Contact Resistance	20mΩ
Row Loading	A/C

Key Features

The connector features 32 contacts arranged in 2 rows with a 5.08 mm pitch.
It supports a maximum current of 6A per contact and operates between -55°C to 125°C.
Constructed with a polybutylene terephthalate housing and copper alloy contacts plated with gold over nickel.
The design includes a right angle orientation with through hole mounting and solder termination.
Provides a maximum contact resistance of 20 milliohms ensuring low electrical losses.
Ensures robust and durable connections in high power applications including power supply and railway transportation.
Part of the DIN 41612 standard series ideal for Eurocard racking systems backplane connectors.

Product Description

HARTING 09041326951 DIN 41612 32 Way Through Hole Connector Type C/2 Solder Class C2 2 Row Male Right Angle is engineered for high-performance industrial and electronic applications.

Designed to comply with the DIN 41612 standard, this connector provides reliable 32-contact electrical connections with a 5.08 mm pitch and dual rows, optimized for power transmission and signal integrity.

Constructed with a polybutylene terephthalate housing reinforced with glass fiber, it delivers mechanical strength and thermal stability suitable for operating temperatures from -55°C to 125°C.

The copper alloy contacts plated with gold over nickel minimize contact resistance and corrosion ensuring a consistent electrical path up to 6 amperes per contact.

Its right angle, through hole mount design with solder termination class C2 facilitates compact PCB integration and offers a durable connection in demanding board-to-board or backplane systems.

These connectors are ideal for industrial, railway, power supply, and manufacturing applications that require robust and high power capable interconnections. The connector features 32 contacts arranged in 2 rows with a 5.08 mm pitch.

It supports a maximum current of 6A per contact and operates in a wide temperature range. Constructed with a polybutylene terephthalate housing and copper alloy contacts plated with gold over nickel. Right angle orientation with through hole mounting and solder termination class C2.

Maximum contact resistance of 20 milliohms ensures efficient electrical performance. Suitable for use in high power and harsh industrial environments. Compatible with DIN 41612 standard Eurocard rack systems. Explore more industrial connectors and components in the DIN 41612 connector category at EnvMart for reliable and high quality interconnection solutions.
