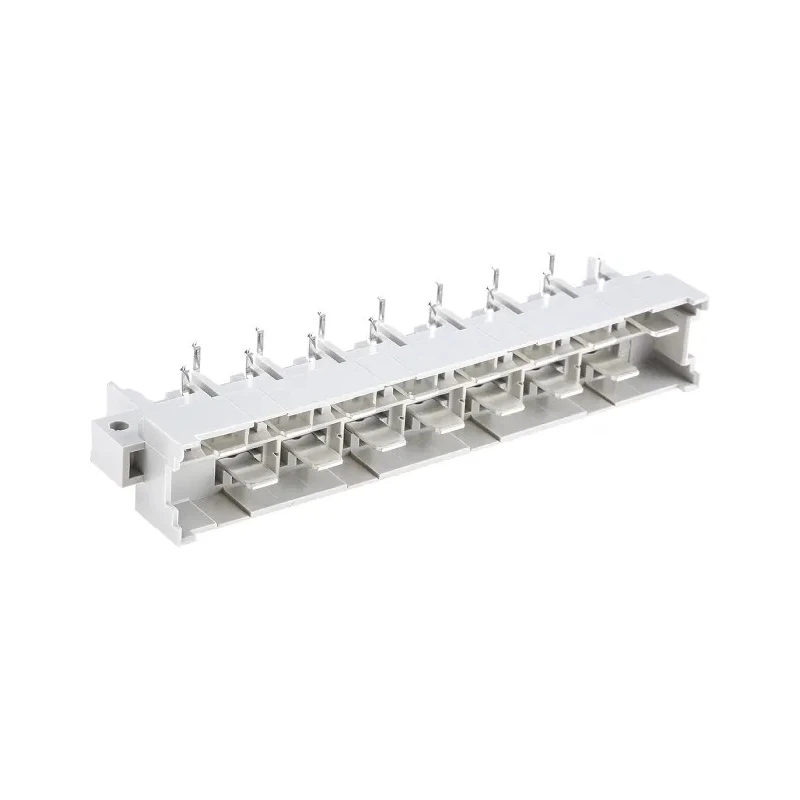

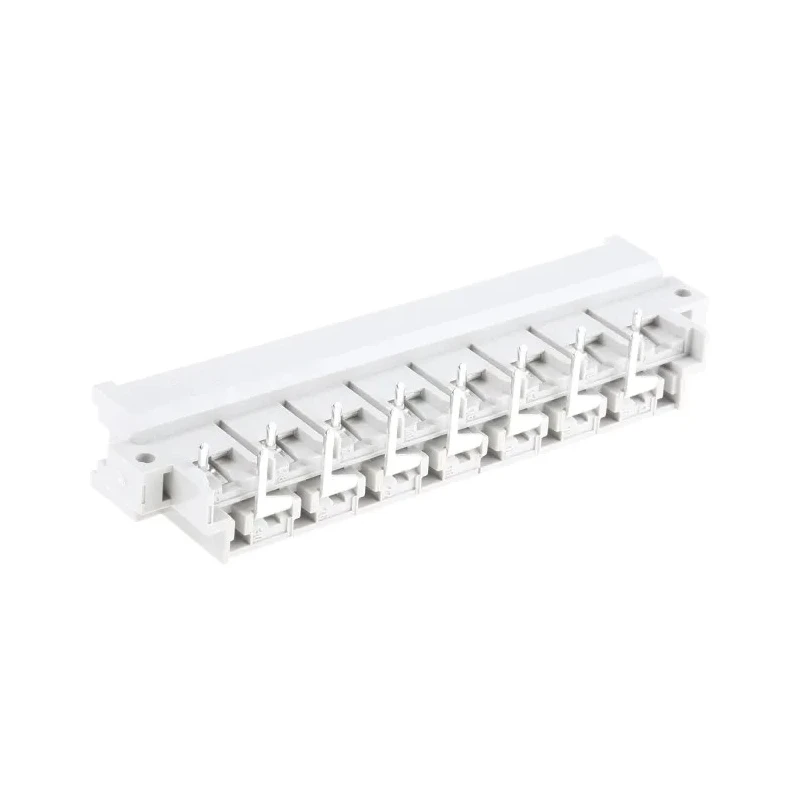

HARTING DIN 41612 15 Way 10.16 mm Pitch Through Hole Type H15 Solder Connection Male Right Angle 09061152932

Name: HARTING DIN 41612 15 Way 10.16 mm Pitch Through Hole Type H15 Solder Connection Male Right Angle 09061152932
Brand: HARTING
SKU: 162026



Category DIN 41612 Connectors Brand HARTING Condition New

Specifications

Country of Origin	India
Brand	HARTING
Orientation	Right Angle
Current	15A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	H15
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	10.16mm
Contact Plating	Silver over Nickel
Number of Contacts	15
Contact Gender	Male
Connector Gender	Male
Maximum Contact Resistance	8mΩ
Row Loading	D/Z
469-522	90° PCB mounting with standard contacts
481-954	90° PCB mounting with one Leading Contact (LC) mates first on position z32
481-960	250 blade Plug has Leading Contact position z32 and is terminated with 6.3mm blades for 2.5mm2 wire, for 250 size receptacles (not shrouded)
740-6966	250 blade Plug standard contacts with 6.3mm blades for 2.5mm2 wire, for 250 size receptacles (not shrouded)

Key Features

15-way connector with two rows for versatile signal connections.
Right angle orientation facilitates compact circuit assembly.
Silver over nickel plated copper alloy contacts ensure low resistance.
Operating temperature range from -55°C to 125°C for harsh environments.
Thermoplastic resin housing made of polybutylene terephthalate provides robustness.
Maximum contact resistance is 8 milliohms for efficient electrical performance.
Solder termination and through hole mounting for secure PCB fitting.
Current rating of 15A suitable for high current applications.

Product Description

HARTING 09061152932 DIN 41612 connector is a 15 way male right angle connector designed to meet demanding industrial and electronic requirements. It features a 10.16 mm pitch and two rows of contacts (Type H15 configuration) with silver over nickel plating for excellent conductivity and corrosion resistance.

This connector uses solder termination and a through hole mount style, providing a robust and reliable connection to printed circuit boards. The contact material is copper alloy, housed within a thermoplastic resin made of polybutylene terephthalate reinforced with glass fibers to enhance durability.

Rated for up to 15 amps current and with a maximum contact resistance of 8 milliohms, this connector is well suited for high current and industrial applications including control cards, power supply units, and railway transportation electronics where reliability is critical.

The temperature operating range is wide, from -55°C minimum to 125°C maximum, making it suitable for challenging environmental conditions.

Mount type is through hole, ensuring sturdy mechanical strength and stable electrical contact. The connector complies with class C1 standards ensuring compatibility and quality in DIN 41612 connector interfacing.

15-way male right angle connector with 2 rows. 10.16 mm pitch with silver over nickel plating. Solder termination through hole mount type. Made with copper alloy contacts and polybutylene terephthalate housing. Supports continuous current of 15A and operating temperatures from -55°C to 125°C.

Ideal for industrial, railway, manufacturing, and power electronics applications.

This product is part of the HARTING DIN 41612 high current connector range, known for performance in backplane and rack connectors in industrial and commercial electronics. For further component compatibility and options, explore the DIN 41612 Connectors category in EnvMart.
