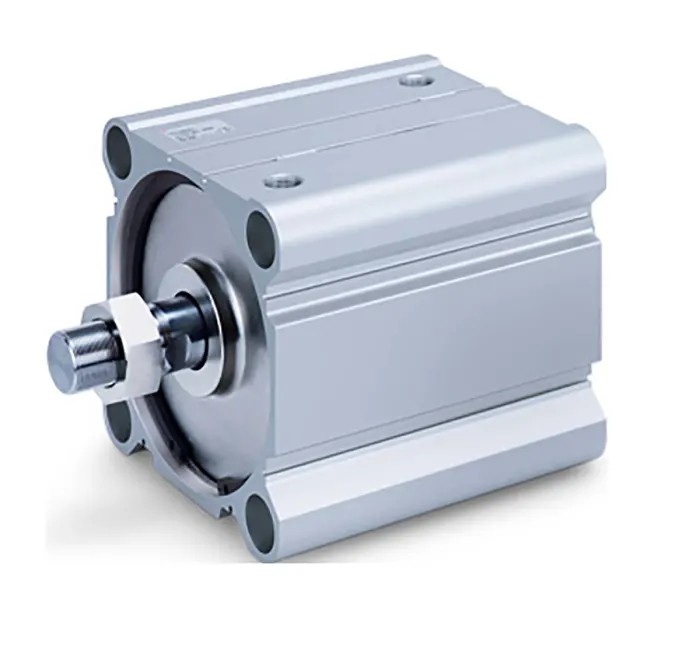

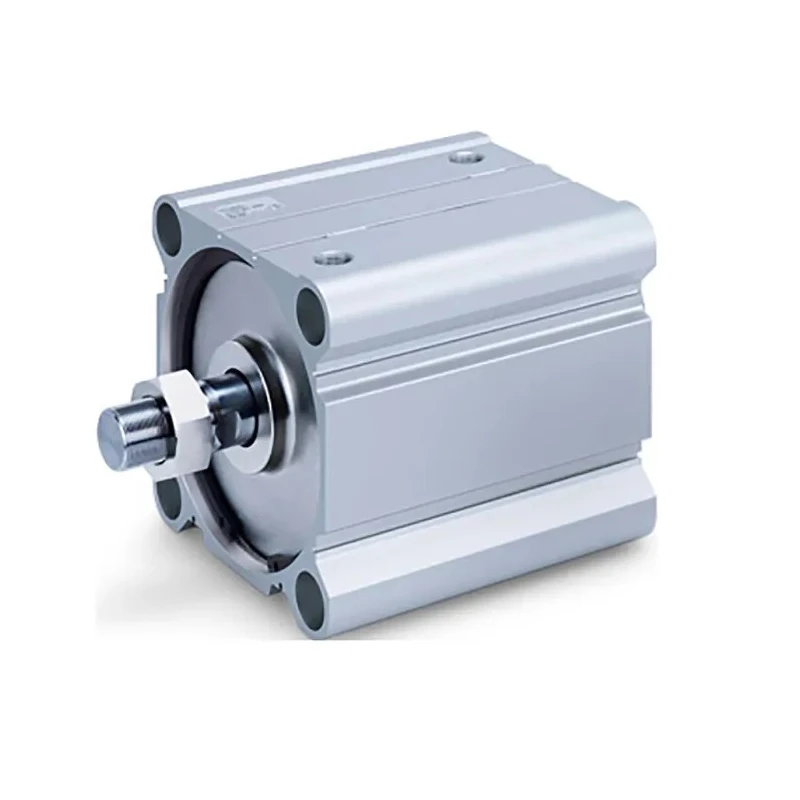

SMC Pneumatic Compact Cylinder Double Acting, 160mm Bore, 100mm Stroke, Aluminium Alloy CDQ2 Series CDQ2B160-100DCZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1 Mpa |
| Height | 178mm |
| Length | 188mm |
| Model | CDQ2B160-100DCZ |
| Gross Weight | 11.5kg |
| Width | 158mm |
| Mount Type | Through Hole |
| Series | CDQ2 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 100mm |
| Bore Diameter | 160mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Cushioning Type | Rubber Bumper |
| Piston Rod Gender | Male |
| Piston Rod Thread Standard | Metric |
| Standard stroke range (mm) | 10 to 300 mm |
| Port threads | Rc, NPT, G |
Key Features
- The body is made of durable aluminium alloy providing strength and lightweight operation.
- Features a through hole mount type for versatile installation options.
- Rubber bumper cushioning protects the cylinder during operation.
- Designed to operate with a maximum pressure of 1 MPa and piston speed up to 500 mm/s.
- Single rod type with male piston rod thread and metric standard threading.
- Operates reliably within a temperature range of -10°C to 60°C.
- Bore sizes available in 125, 140, 160, 180, and 200 mm with standard stroke range from 10 to 300 mm.
- Port threads support Rc, NPT, and G standards for flexible connectivity.
Product Description
SMC CDQ2B160-100DCZ Pneumatic Compact Cylinder from the CDQ2 series is a high-performance double acting aluminium alloy pneumatic cylinder with a 160 mm bore diameter and 100 mm stroke length. It is designed for industrial pneumatic applications requiring reliable and compact actuation with a single rod type and male piston rod thread adhering to metric threading standards.
This compact cylinder features a through hole mount type allowing versatile mounting options in industrial machinery and automation systems. The rubber bumper cushioning enhances durability by protecting the piston during operation under maximum operating pressure up to 1 MPa and maximum piston speed of 500 mm/s.
Operating temperature range is from -10°C to 60°C, making it suitable for a variety of environmental conditions. Its compact size with length of 188 mm, height of 178 mm, width of 158 mm, and weight of 11.5 kg ensures easy integration into existing pneumatic systems.
The CDQ2 series offers bore sizes ranging from 125 mm to 200 mm and standard stroke lengths between 10 mm and 300 mm to accommodate a wide range of industrial automation requirements. Port threads are compatible with Rc, NPT, and G thread standards to facilitate connection with pneumatic tubing and accessories.
This pneumatic compact cylinder is ideal for automated equipment, manufacturing, material handling, and industrial pneumatic control applications where precise, reliable linear motion is critical.
The body is constructed from lightweight and durable aluminium alloy. Rubber bumper cushioning protects the piston during operation for longer service life. Double acting operation provides both pushing and pulling forces for versatile usage.
Compatible with multiple bore sizes and stroke ranges for various needs. Port threads support Rc, NPT, and G standards for flexible connections.
Discover the reliability and compact design of the SMC CDQ2B160-100DCZ pneumatic compact cylinder for your pneumatic automation needs. Browse related quality Pneumatic Cylinders and components at EnvMart for enhanced industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this model is 160 mm.
It operates with a maximum pressure of 1 MPa.
This model has a stroke length of 100 mm.
The dimensions are 188 mm in length, 178 mm in height, and 158 mm in width.
The gross weight of the cylinder is 11.5 kg.
It features rubber bumper cushioning to protect the piston during operation.
It operates reliably within a temperature range of -10°C to 60°C.
This model uses a through hole mount type for versatile installation options.
The port threads support Rc, NPT, and G standards for flexible connectivity.
This pneumatic cylinder operates as a double acting unit, providing both pushing and pulling forces.
It features a single rod type with a male piston rod thread adhering to metric standards.
It belongs to the CDQ2 series, which offers a range of bore sizes and stroke lengths.
