SMC Pneumatic Compact Cylinder Double Acting, Aluminium Alloy Body, 25mm Bore, 15mm Stroke CDQ2B25-15DZ

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Compact Cylinder Double Acting, Aluminium Alloy Body, 25mm Bore, 15mm Stroke CDQ2B25-15DZ



Category Pneumatic Cylinder Brand SMC Condition New

Specifications

Country of Origin	India
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	1 Mpa
Height	40.5mm
Length	52mm
Model	CDQ2B25-15DZ
Gross Weight	164g
Width	52.5mm
Mount Type	Through Hole
Series	CDQ2
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-10°C
Stroke Length	15mm
Bore Diameter	25mm
Rod Type	Single
Action Type	Double Acting
Piston Rod Gender	Male
Piston Rod Thread Standard	Metric
Standard stroke range (mm)	5 to 100 mm
Port threads	M (12 to 25 bore), Rc, NPT or G (32 to 100 bore)

Key Features

Double acting, single rod compact cylinder designed for efficient pneumatic actuation.
Constructed with high-grade aluminium alloy for durability and corrosion resistance.
Through hole mount type enables versatile installation options.
Maximum operating pressure is 1 Mpa with piston speed up to 500 mm/s.
Operating temperature range from -10°C to 70°C for broad industrial application.
Standard bore sizes available from 12mm to 100mm with stroke range 5 to 100 mm.
Compatible with M (12 to 25 bore), Rc, NPT, or G (32 to 100 bore) port thread options.
Compact design dimensions of length 52mm, height 40.5mm, and width 52.5mm.

Product Description

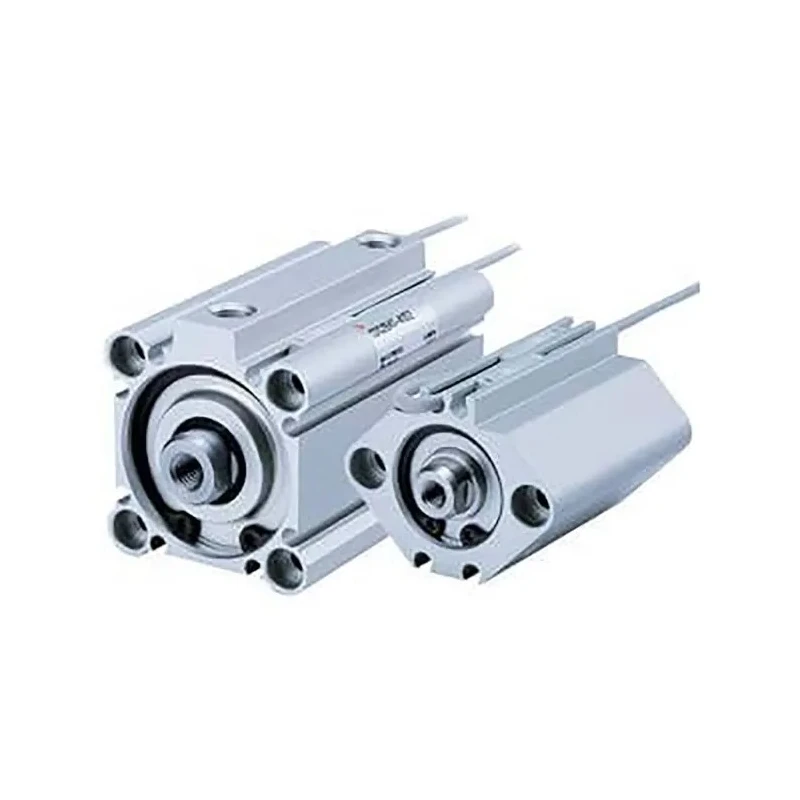

SMC CDQ2B25-15DZ Pneumatic Compact Cylinder is a double acting, single rod compact cylinder with a robust aluminium alloy body. It features a 25mm bore diameter and 15mm stroke length, making it ideal for precise pneumatic operations.

This cylinder is designed for durability with a maximum operating pressure of 1 Mpa and can maintain piston speeds up to 500 mm/s. Its through hole mount type ensures secure and flexible installation in a variety of industrial setups.

Operating effectively within a temperature range of -10°C to 70°C, this cylinder is suitable for diverse industrial applications including manufacturing automation, fluid power control, and pneumatic tooling.

The model belongs to the CDQ2 series, offering a standard stroke range from 5 to 100 mm and a range of bore sizes from 12 mm up to 100 mm with multiple port thread options to accommodate different piping standards such as M, Rc, NPT, and G.

The compact dimensions of 52 mm length, 40.5 mm height, and 52.5 mm width combined with a lightweight design of approximately 164 grams facilitate easy integration in space-constrained pneumatic systems.

Double acting, single rod compact cylinder designed for efficient pneumatic actuation. Constructed with high-grade aluminium alloy for durability and corrosion resistance. Through hole mount type enables versatile installation options.

Maximum operating pressure is 1 Mpa with piston speed up to 500 mm/s. Operating temperature range from -10°C to 70°C for broad industrial application. Standard bore sizes and stroke ranges provide flexibility for different applications.

Compatible with multiple port thread standards for versatile connectivity. Compact dimensions and lightweight body aid in integration.

Ideal for industrial automation, manufacturing, fluid power systems, and pneumatic equipment, this SMC cylinder delivers reliable pneumatic power in a compact package. Explore the full range of pneumatic piston rod cylinders from SMC for precision and quality in air-driven systems.

Explore more products in our Pneumatic Cylinder category.
