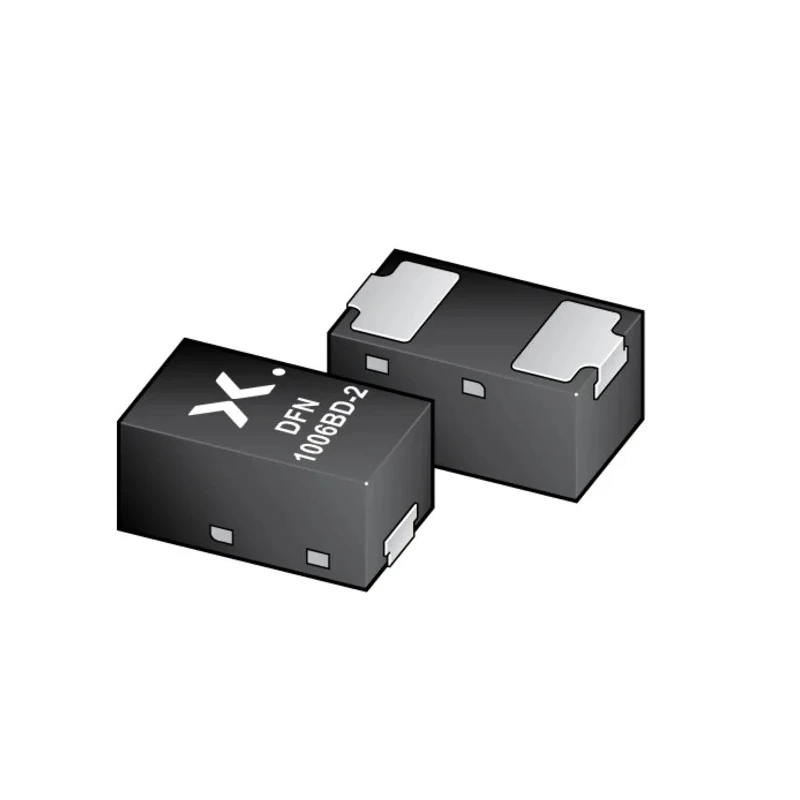

Nexperia General Purpose 36 V 365 mW Surface Mount Zener Diode 2-Pin DFN1006BD-2 BZX884S-C36-QYL

The Nexperia BZX884S-C36-QYL is a high-quality general purpose Zener diode designed for use in electronic circuits requiring precise voltage regulation at 36 volts. Packaged in an ultra-small DFN1006BD-2 leadless 2-pin surface mount device, it is suitable for compact and space-conscious PCB applications. The device offers a maximum power dissipation of 365 mW which supports moderate power electronic applications.

This diode features a tight voltage tolerance of ±2%, ensuring consistent voltage control in sensitive circuits. It complies with AEC-Q101 automotive qualification standards and RoHS environmental requirements, making it appropriate for automotive and industrial applications that demand reliability and compliance.

With a maximum operating temperature of 150°C and minimum of -55°C, the diode is operational across a wide temperature range, suitable for harsh environments. The maximum reverse leakage current is a low 50 nanoamps, minimizing leakage losses and ensuring efficiency. Its maximum Zener impedance of 350 ohms supports stable voltage regulation, critical in power supply and voltage reference designs.

The physical dimensions of 1 mm length and 0.47 mm height allow for use in miniaturized circuit boards. The test current rating of 5 mA and typical voltage temperature coefficient of 30.4 mV/K ensure predictable performance with temperature variations. The package design with side-wettable flanks simplifies PCB assembly using soldering techniques.

This device finds applications in industrial electronics, automotive voltage regulation, power management circuits, and other electronic systems that require dependable voltage stabilization. It is an ideal component for designers seeking a compact, reliable, and automotive-grade Zener diode solution.

This Zener diode features a precise 2% voltage tolerance. It has a nominal Zener voltage of 36 volts suitable for voltage regulation. The package dimensions are 1 mm length and 0.47 mm height, ideal for compact PCB designs.

It supports a maximum operating temperature up to 150°C and minimum of -55°C. The diode is qualified to AEC-Q101 automotive standard and RoHS compliant. The maximum power dissipation rating is 365 milliwatts. The diode features a maximum reverse leakage current of 50 nanoamps at test condition.

The maximum Zener impedance is 350 ohms ensuring stable voltage clamping. This component is designed for surface mount technology with side-wettable flanks. The test current for the device is 5 mA according to specification.

Typical voltage temperature coefficient is 30.4 mV/K providing temperature stability. Explore the Nexperia range at EnvMart for trusted semiconductor components designed for demanding electronic applications.
