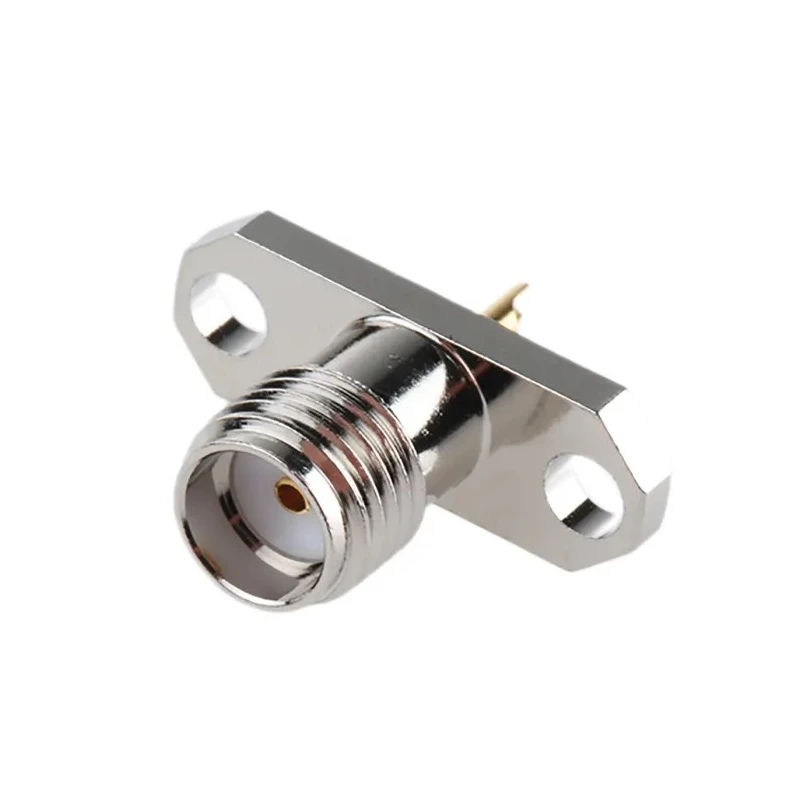

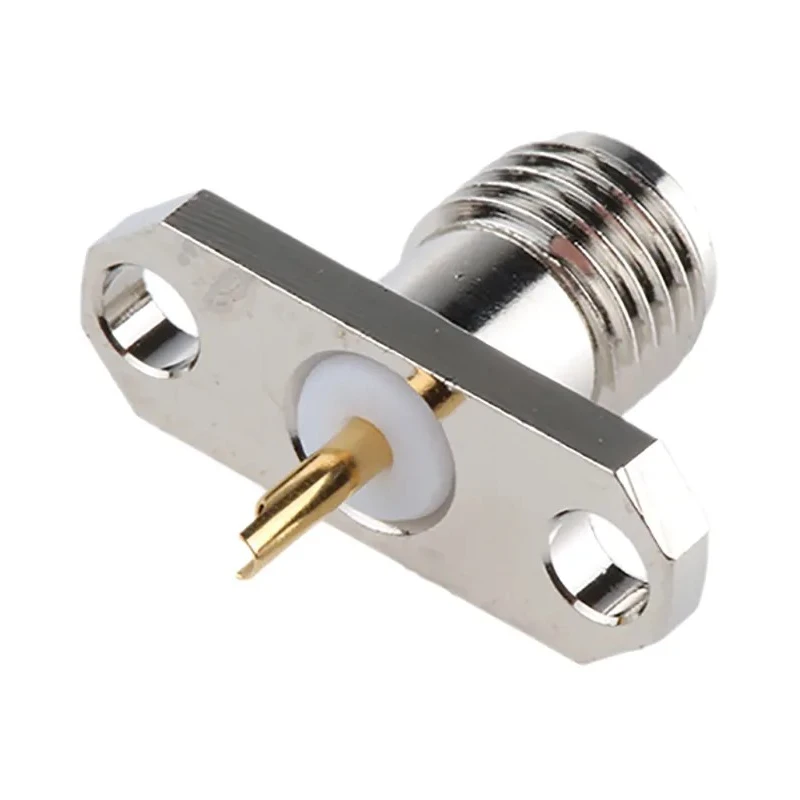

Telegartner SMA Series Coaxial Connector Flange Female SMA, 50 Ω, Straight Body Solder J01151A0149
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01151A0149 |
| Mount Type | Flange |
| Operating Frequency | 12.4GHz |
| Contact Material | Beryllium Copper |
| Series | SMA |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel over Copper |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Nickel |
Key Features
- Constructed with a nickel-plated brass housing ensuring durability and corrosion resistance.
- Features gold over nickel over copper plating on beryllium copper contacts for reliable conductivity.
- Operates effectively up to a frequency of 12.4 GHz.
- Designed to function within a temperature range from -65°C to 165°C.
- Ideal for panel mounting applications requiring stable RF coaxial connections.
- Normal polarity female connector with standard size and flange mount type.
- Made in Germany to meet high quality and performance standards.
- Termination is via solder, securing the connection firmly.
Product Description
Telegartner J01151A0149 SMA Series Coaxial Connector is a high-quality flange-mounted female SMA connector with a 50 Ω impedance and straight body designed for solder termination. This component is suitable for use in demanding RF coaxial connection applications used in electronics, telecommunications, and industrial sectors.
Constructed with a nickel-plated brass housing, the connector offers excellent durability and corrosion resistance. The inner conductors are gold plated over nickel and copper contacts made of beryllium copper, ensuring low contact resistance and reliable signal transmission.
The connector supports operating frequencies up to 12.4 GHz, making it suitable for high-frequency RF applications. It operates efficiently within an ambient temperature range of -65°C to 165°C, ensuring stability in harsh environments.
Designed as a panel-mount flange type, it aids in secure installation on equipment panels, providing mechanical stability and easy accessibility. The standard size and normal polarity female design facilitate compatibility with corresponding male SMA connectors.
Termination is done through soldering, which provides a secure and permanent electrical and mechanical connection. Manufactured in Germany, this part complies with stringent quality control measures and offers consistent performance.
Nickel-plated brass housing for robust protection. Beryllium copper contact with gold plating for superior conductivity. Flange mounted for panel installation. Operates up to 12.4 GHz frequency. Wide temperature range from -65°C to 165°C.
Standard size and normal polarity. Solder termination for durable connections. Made in Germany ensuring high quality. This SMA coaxial connector is widely used in industrial electronics, telecommunications, test and measurement equipment, and other applications requiring reliable RF connections.
Explore more Coaxial Connectors and electronic components on EnvMart to find compatible parts and accessories for your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates effectively up to a frequency of 12.4 GHz, making it suitable for high-frequency RF applications.
This connector operates efficiently within a temperature range from -65°C to 165°C, ensuring stability in harsh environments.
Termination is via solder, which provides a secure and permanent electrical and mechanical connection.
It features a nickel-plated brass housing and beryllium copper contacts with gold over nickel over copper plating for reliable conductivity.
This model has an impedance of 50 Ω, which is standard for RF applications.
It is designed as a flange-mounted connector, allowing for secure installation on equipment panels.
This connector has a straight body orientation, facilitating easy installation and connection.
The inner conductors are made of beryllium copper, ensuring low contact resistance and reliable signal transmission.
This connector is manufactured in Germany, adhering to high quality and performance standards.
It features a female connector gender, which is compatible with corresponding male SMA connectors.
The contacts are plated with gold over nickel over copper to enhance conductivity and reduce contact resistance.
This model is widely used in industrial electronics, telecommunications, and test and measurement equipment requiring reliable RF connections.
