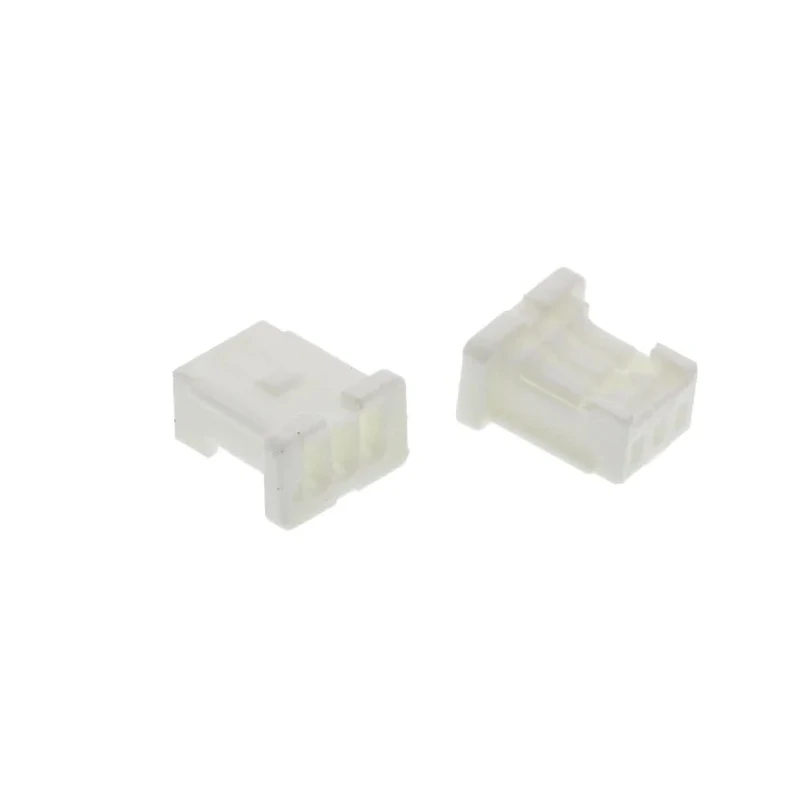

Molex Pico-Clasp Female Connector Housing 1 mm Pitch 3 Way 1 Row Straight 501330-0300

Molex 501330-0300 Pico-Clasp female connector housing is a 1 mm pitch, 3 way, single row straight connector designed for use with Pico-Clasp wire-to-board connectors. This connector housing is crafted from durable nylon material, providing reliable insulation and robust mechanical protection in dense interconnection applications.

The Pico-Clasp series is known as the smallest connector system in the market with a positive lock mechanism, offering a secure and compact connection solution. The 1.00 mm pitch spacing between contacts, combined with the 3-way configuration in a single row, allows for efficient and high-density printed circuit board wiring.

This cable-mounted female connector housing features a straight orientation, facilitating straightforward wire routing with minimal space requirements. The compact dimensions, measuring 4.7 mm in length and 2.94 mm in width, enable integration into space-constrained electronic assemblies. Manufactured in Japan, this connector housing adheres to stringent quality specifications, ensuring consistent performance in industrial, laboratory, manufacturing, and commercial electronics applications.

Typical use cases include electronic assembly manufacturing, industrial control systems, consumer electronics, and telecommunication equipment where reliable, high-density wire-to-board connector solutions are required. The Pico-Clasp system is engineered for durability, safety, and ease of assembly, catering to modern electronics development needs.

The connector housing is made of durable nylon for reliable performance. Designed for Pico-Clasp wire-to-board connectors with female contacts. Offers a 1.00 mm pitch with three contacts in a single row configuration. Its straight orientation ensures easy cable mounting and routing.

Compact dimensions of 4.7 mm length and 2.94 mm width enable use in tight spaces. Manufactured in Japan ensuring high-quality standards. Ideal for electronic component and connector applications in industrial and commercial environments.
