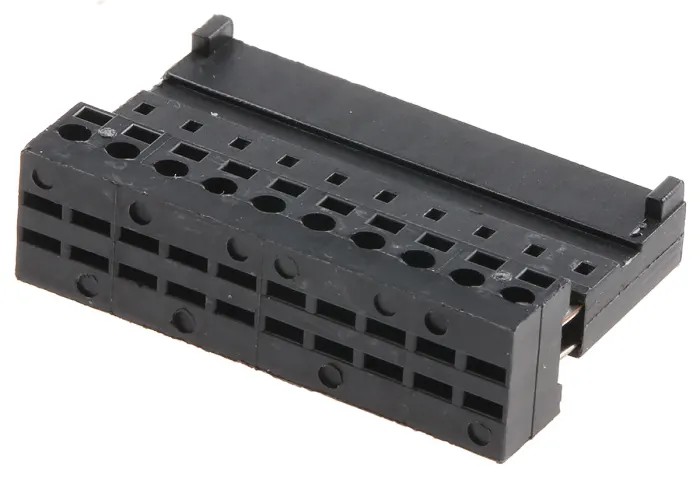

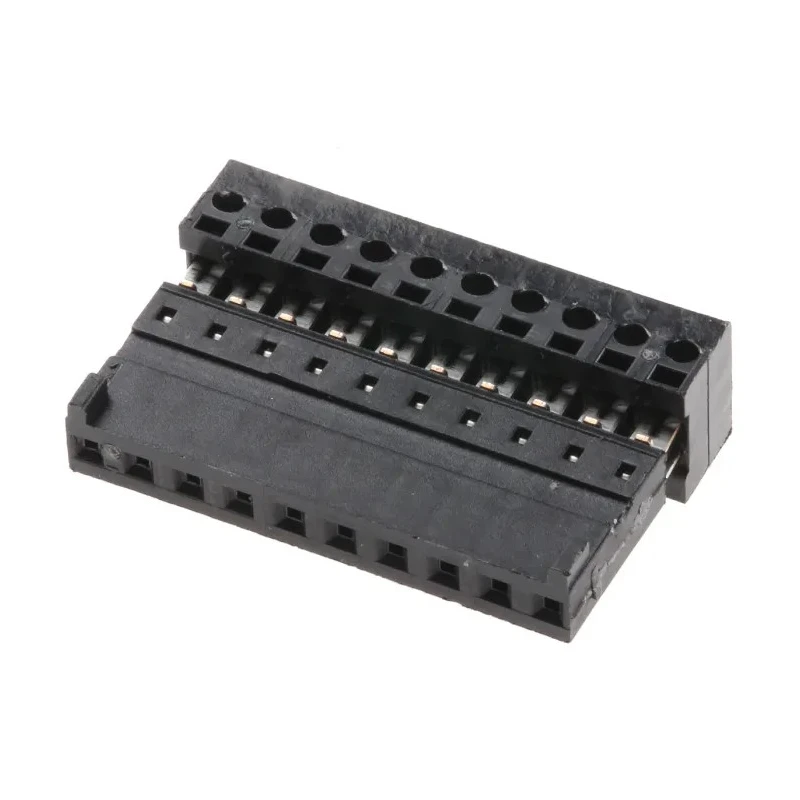

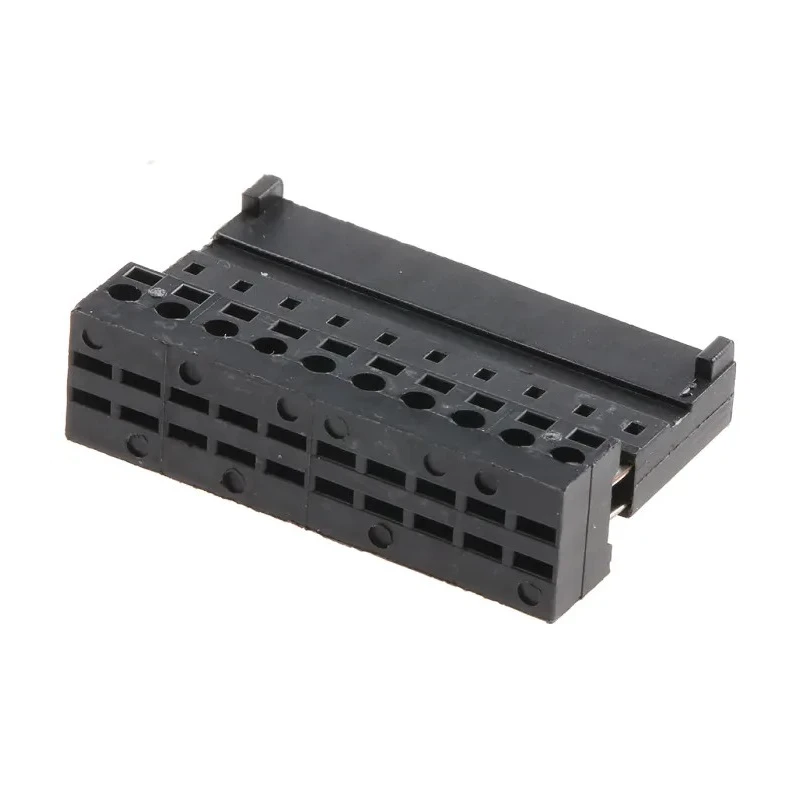

Wurth Elektronik 10-Way 1 Row IDC Connector Female for Cable, Right Angle, 500V AC, 3A, Tin Plated 661010152022
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V ac |
| Brand | Wurth Elektronik |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Cable |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | Autocom |
| Termination Type | IDC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Unshrouded |
| Wurth Elektronik 10-Way IDC Connector Female for Cable, 1 RowBrand | Wurth Elektronik |
| Stelvio Kontek 10-Way IDC Connector Female for Cable, 1 RowBrand | Stelvio Kontek |
Key Features
- Features 10 contact points suitable for cable connections.
- Designed with one row and right angle orientation for space-efficient designs.
- Tin-plated phosphor bronze contacts ensure corrosion resistance and good conductivity.
- Unshrouded cable mount type supports IDC termination for quick assembly.
- Operates reliably between -55°C to 125°C temperature range.
- Constructed using polyethylene terephthalate housing material for durability.
- Autocom HE14 series compliant connector with doubling blade contacts.
- Ideal for PCB and wire housing electronic component applications.
Product Description
Wurth Elektronik model 661010152022 is a precision 10-way IDC connector female designed for cable wiring in electronic assemblies. This single-row connector with right angle contact orientation supports a voltage rating of 500V AC and a current rating of 3A, making it suitable for reliable industrial and commercial electronics use.
The connector features tin-plated phosphor bronze contacts which offer excellent conductivity and resistance to corrosion. Its housing is crafted from polyethylene terephthalate, ensuring robust mechanical strength and longevity. This IDC connector supports insulation displacement connection technology, allowing for quick and secure cable assembly without the need for additional soldering or preparation.
Operating within a broad temperature range from -55°C to 125°C, this connector is compliant with Autocom HE14 and IEC 603-8 standards. The right angle form factor helps reduce vertical space on printed circuit boards, optimizing design layouts in electronic devices. Its unshrouded construction simplifies inspection and maintenance.
Features 10 contacts with a 2.54mm pitch in a single row. Current rating at 3A and voltage rating at 500V AC ensure electrical robustness. Contact material is phosphor bronze with tin plating for durability. Housing material uses polyethylene terephthalate for insulation and strength.
Suitable for industrial, electronic component manufacturing, and PCB wiring applications. Easy assembly by hand due to IDC termination type. Rated temperature range from -55°C to 125°C for versatile environments. Compliance with Autocom series and IEC standards ensures quality.
This Wurth Elektronik IDC Connector is ideal for use in electronics manufacturing, test equipment, power distribution modules, and communication devices. Its reliable performance and durable construction support efficient, long-lasting connections in complex wiring applications. EnvMart offers this connector for professionals seeking a high-quality cable connector solution in industrial and electrical contexts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this connector is 500V AC, making it suitable for various industrial and commercial applications.
This model has a current rating of 3A, ensuring it can handle typical electrical loads in electronic assemblies.
It operates reliably within a temperature range of -55°C to 125°C, allowing for use in diverse environments.
The housing is made from polyethylene terephthalate, while the contacts are made of phosphor bronze with tin plating for corrosion resistance and conductivity.
This IDC connector features 10 contacts, arranged in a single row with a pitch of 2.54mm.
It supports insulation displacement connection (IDC) termination, allowing for quick and easy cable assembly without soldering.
The connector is designed with a right angle orientation, which helps save vertical space on printed circuit boards.
Yes, it is compliant with Autocom HE14 series and IEC 603-8 standards, ensuring quality and reliability for electronic applications.
This model is designed for cable mounting, making it suitable for various wiring applications in electronic assemblies.
The connector features female contacts, which are designed to connect with male counterparts in wiring applications.
The unshrouded design simplifies inspection and maintenance, allowing for easier access to the contacts during assembly and troubleshooting.
The country of origin for this connector is India, indicating its manufacturing location.
