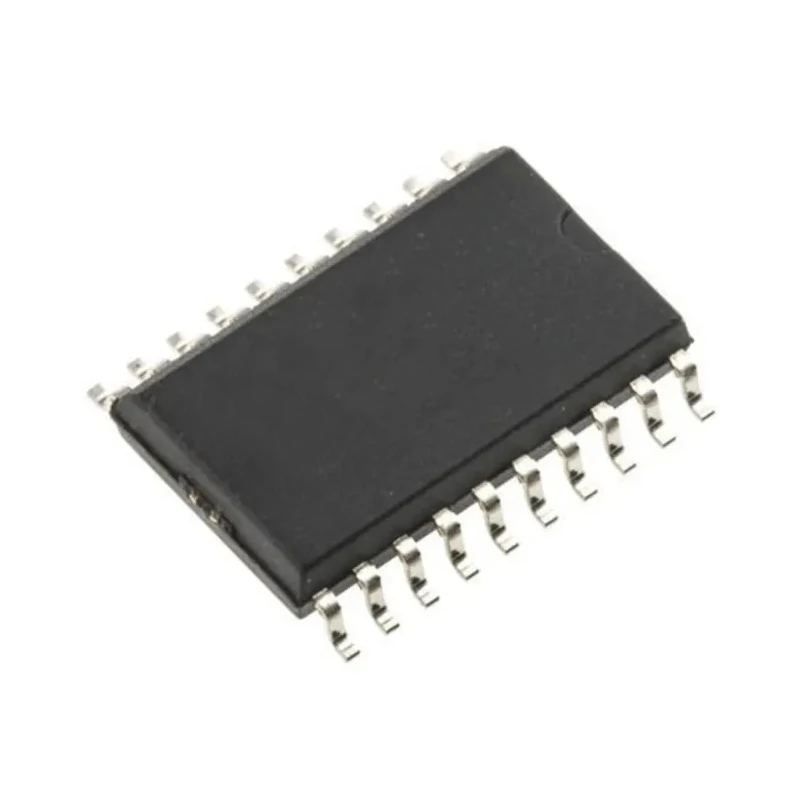

onsemi 9-Channel Buffer & Line Driver, 3 State, Non-Inverting, 20-Pin SOIC MC74HCT541ADWG

Free Delivery in India | Lowest Global Shipping Charges

onsemi 9-Channel Buffer & Line Driver, 3 State, Non-Inverting, 20-Pin SOIC MC74HCT541ADWG

Name: onsemi 9-Channel Buffer & Line Driver, 3 State, Non-Inverting, 20-Pin SOIC MC74HCT541ADWG
Brand: onsemi
SKU: 157576
Price: 0.65 USD
Availability: InStock



Category Line Interface ICs Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.2mm
Operating Voltage Range	4.5 to 5.5V
Length	6.6mm
Model	MC74HCT541ADWG
Width	4.5mm
Mount Type	Surface
Output type	3 State
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-55°C
Polarity	Non-Inverting
IC Type	Buffer & Line Driver IC
Number Of Channels	9
Pin Count	20
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Logic Family	HCT
Logic Function	Buffer
Minimum Supply Voltage	4.5V
Maximum High Level Output Current	6mA
Maximum Propagation Delay Time @ CL	38ns
Supply Current	75mA
Low Input Current	1mA
Output Drive Capability	15 LSTTL Loads
Chip Complexity	134 FETs or 33.5 Equivalent Gates

Key Features

High-performance Silicon-Gate CMOS technology ensures reliable operation.
Compatible with TTL/NMOS and directly interfaces to CMOS inputs.
Operating voltage range between 4.5 to 5.5V with low supply current of 75mA.
Supports a maximum propagation delay time of 38ns at specified load.
Includes two ANDed active-low output enables for precise control.
Designed to drive up to 15 LSTTL loads per output.
Wide operating temperature range from -55°C to 125°C suitable for automotive applications.
Compact dimensions with 6.6mm length, 4.5mm width, and 1.2mm height.

Product Description

onsemi MC74HCT541ADWG is a 9-channel buffer and line driver IC with 3-state, non-inverting outputs housed in a 20-pin SOIC surface mount package. Utilizing high-performance Silicon-Gate CMOS technology, it is designed for interfacing TTL or NMOS outputs to high-speed CMOS inputs.

The MC74HCT541ADWG supports an operating voltage range of 4.5V to 5.5V with a low supply current of 75mA, enabling efficient power usage. Each output can drive up to 15 LSTTL loads and interfaces directly with CMOS, NMOS, and TTL levels. Its maximum propagation delay time is 38ns at the given capacitive load, ensuring fast signal transmission for industrial, automotive, and commercial electronic applications.

This component features a wide operating temperature range from -55°C to 125°C, compliant with the AEC-Q100 automotive standard for robust performance in harsh environments. Its compact dimensions (6.6mm length, 4.5mm width, 1.2mm height) make it suitable for high-density PCB layouts.

High-performance Silicon-Gate CMOS logic family technology. TTL/NMOS-compatible input levels. Three-state output enable functions for bus-oriented addressing. Output drive capability suitable for 15 LSTTL loads. Low input current reducing power dissipation.

Surface mount SOIC package ensuring easy PCB assembly. Extensive temperature range fitting automotive and industrial use. Automotive standard AEC-Q100 certified for reliability. Low propagation delay supports high-speed digital circuits.

Compact size for dense electronic integration.

This buffer and line driver IC is a dependable solution for applications in industrial control systems, automotive electronics, communication equipment, and other semiconductor interfacing needs requiring high-performance signal buffering and driving capabilities.

Explore the full range of semiconductor ICs and line interface components at EnvMart to find ideal solutions tailored for your industrial and commercial projects.

Explore more products in our Line Interface ICs category.
