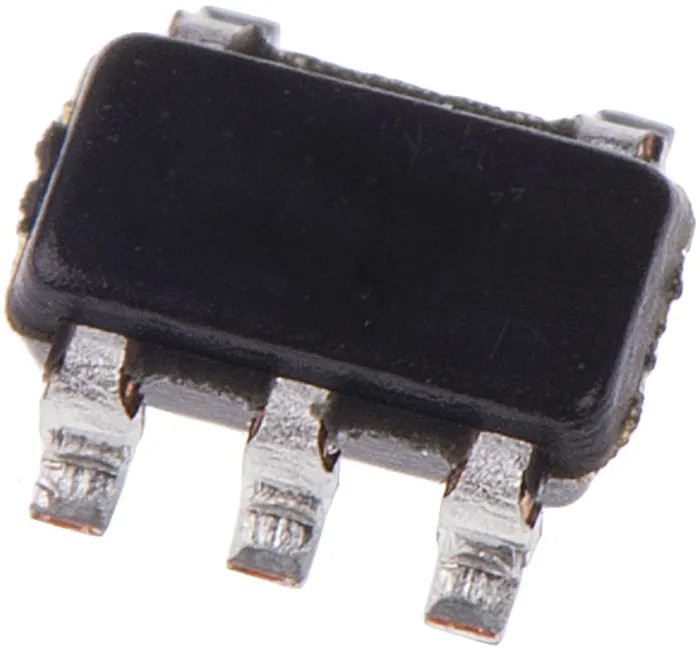

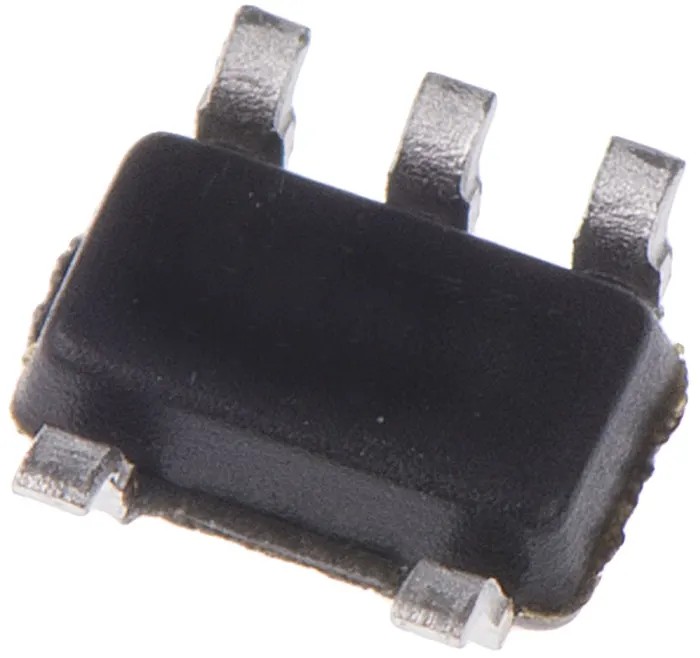

Texas Instruments Voltage Regulator 0.5W 5.5V SOT-23 5-Pin TPS78233DDCT

Texas Instruments TPS78233DDCT is a low dropout (LDO) linear voltage regulator designed for efficient regulation of voltages in compact electronics. It provides a power rating of 0.5 W with a maximum input voltage of 5.5 V, housed within a tiny SOT-23 5-pin surface mount package. The device is characterized by an ultra-low quiescent current of 500nA and positive polarity, making it ideal for battery-operated and low power applications.

This regulator features a length of 2.9mm, width of 1.6mm, and height of 870μm, providing a small footprint for space-constrained circuit boards. It operates reliably at temperatures up to 125°C, supporting robust industrial, commercial, and consumer electronic applications. The TPS78233DDCT series ensures superb line voltage regulation, high power supply rejection ratio (PSRR), and reduced output noise for stable performance.

Common use cases include portable devices, embedded systems, instrumentation, and general power management where maintaining regulated voltages with low noise is critical. Its low dropout nature allows operation at small input-output voltage differentials, enhancing power efficiency.

Surface mount SOT-23 package for compact integration. Positive polarity LDO regulator with low quiescent current. Supports 150mA current and output voltages between 3.0V to 3.9V. High reliability with operating temperature up to 125°C.

Excellent line regulation and PSRR minimize output fluctuations. Low output noise suitable for sensitive and precision electronics.

TPS78233DDCT Voltage Regulators from Texas Instruments enable engineers to design efficient and compact power solutions for industrial, laboratory, manufacturing, and consumer electronics sectors. EnvMart offers this component for precise power management needs in advanced electronic designs.
