TE Connectivity mSATA/mini PCI-E Series Right Angle Edge Connector Female, Surface Mount, 52 Contacts, 0.8 mm 2041119-1

Free Delivery in India | Lowest Global Shipping Charges

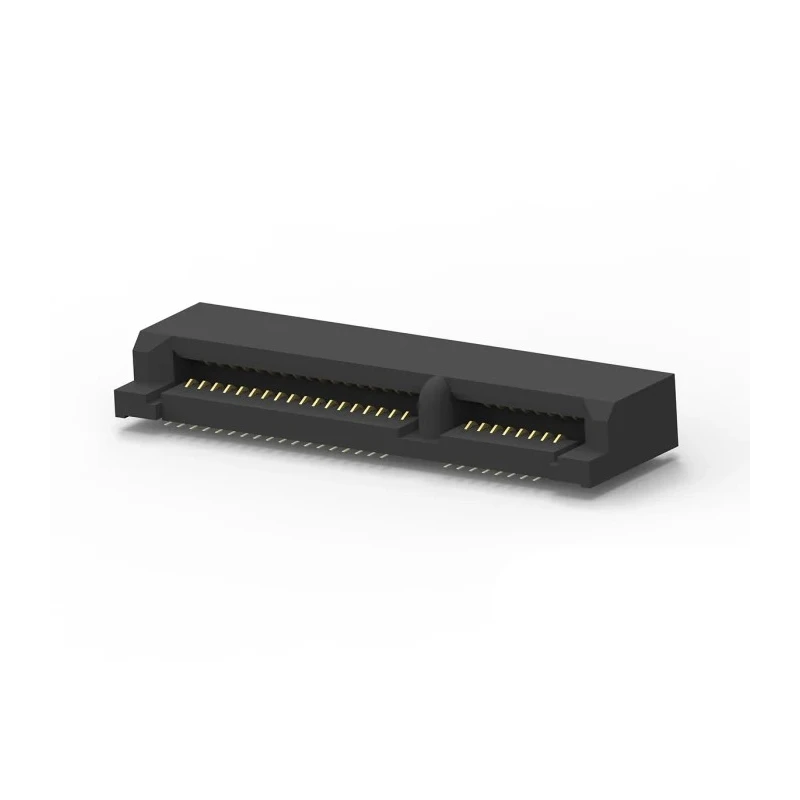

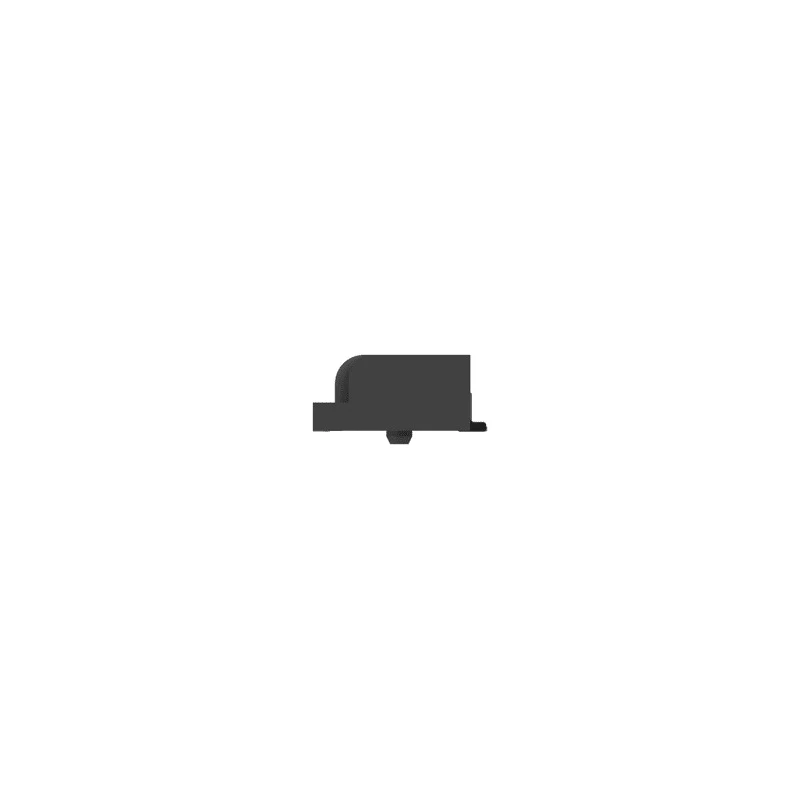

TE Connectivity mSATA/mini PCI-E Series Right Angle Edge Connector Female, Surface Mount, 52 Contacts, 0.8 mm 2041119-1

Name: TE Connectivity mSATA/mini PCI-E Series Right Angle Edge Connector Female, Surface Mount, 52 Contacts, 0.8 mm 2041119-1
Brand: TE Connectivity
SKU: 157517
Price: 1.66 USD
Availability: InStock



Category Edge Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Voltage	1.5V
Brand	TE Connectivity
Orientation	Right Angle
Current	500mA
Mount Type	Surface
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Series	mSATA/mini PCI-E
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.8mm
Contact Plating	Gold, Nickel
Number of Contacts	52
Contact Gender	Female
Connector Gender	Female
Card Type	Edge

Key Features

Right angle orientation for efficient PCB layout.
Surface mount technology compatible for durable assembly.
Gold and nickel plated copper alloy contacts ensure reliable conductivity.
Operating temperature range from -55°C to 85°C for versatile environments.
Supports up to 1.5V and 500mA current rating suitable for mini PCI-E applications.
Thermoplastic housing for mechanical resilience.
Includes keying features to prevent incorrect mating.
Mates with express mini card and display mini card sockets.

Product Description

TE Connectivity 2041119-1 mSATA/mini PCI-E Series Right Angle Edge Connector is designed for high-performance electronic devices requiring secure and compact interconnect solutions. This female connector features a surface mount design with a right angle orientation, optimized for printed circuit boards. It includes 52 contacts arranged in 2 rows at a 0.8 mm pitch, delivering reliable electrical connectivity for express mini cards.

The contacts are made of copper alloy plated with gold and nickel to provide stable conductivity while preventing corrosion and wear. The thermoplastic housing offers durability and withstands operating temperatures ranging from -55°C to 85°C, making it suitable for demanding industrial and commercial applications.

With a current rating of 500 mA and supporting voltages up to 1.5V, the connector is compatible with numerous mini PCI-E and display mini card environments. The product incorporates a keying way to eliminate misconnections and improve user safety. It meets rigorous mechanical shock standards, enduring shocks up to 50G, ensuring reliability in mobile and harsh conditions.

This Edge Connector is ideal for use in notebook PCs, desktop PCs, and wireless communication equipment, supporting the expansion and interconnection of modules within these systems.

Right angle orientation for space optimization. Surface mount type for efficient PCB integration. 52 female contacts providing stable connections. 0.8 mm pitch allows compact design. Durable thermoplastic housing ensures longevity.

Gold and nickel plated contacts resist corrosion. Supports operating voltages up to 1.5V and current of 500mA. Keying design prevents incorrect mating. Withstands mechanical shocks up to 50G. Suitable for notebooks, desktops, and wireless equipment.
