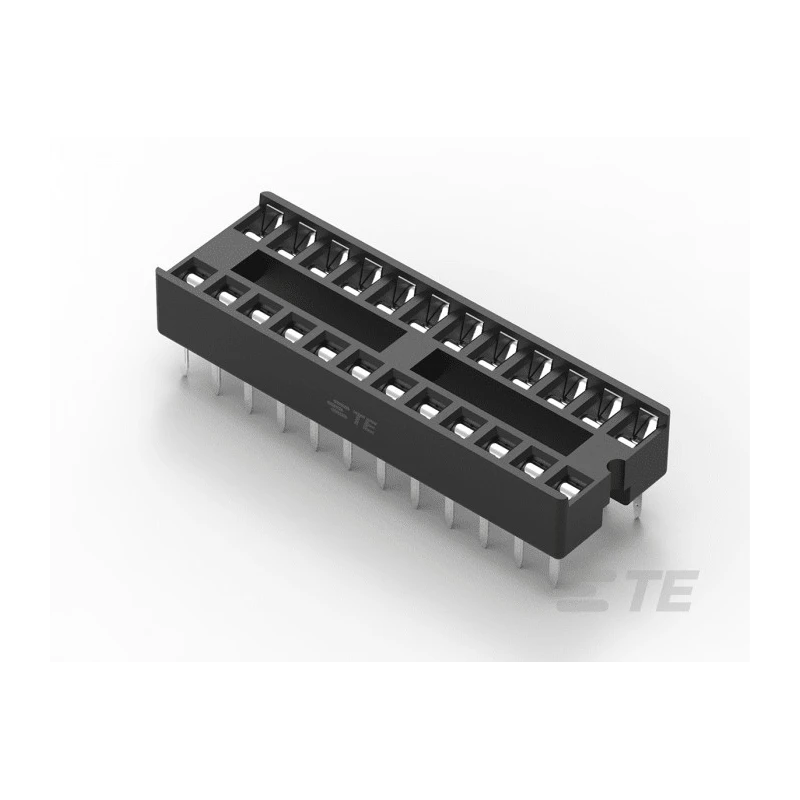

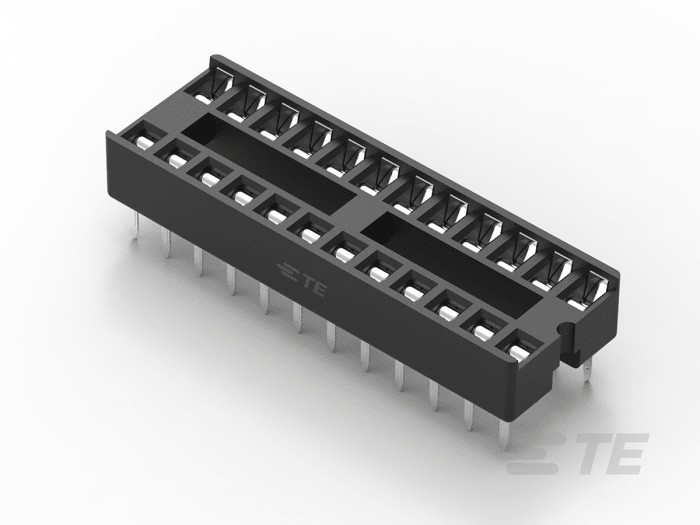

TE Connectivity 2.54 mm Pitch Straight 24 Way Through Hole Stamped Pin Ladder DIL Socket 1-2199298-8
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250, 250V ac |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Frame Type | Ladder |
| Length | 30.48mm |
| Depth | 5.1mm |
| Width | 10mm |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic, Glass Filled Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 24 |
| Pin Type | Stamped |
| Row Width | 7.62mm |
Key Features
- Offers a 24-contact design suitable for precise IC to PCB connections.
- Features a 2.54 mm pitch with a 7.62 mm row width for standard DIL socket compatibility.
- Constructed with phosphor bronze contacts and tin plating for excellent conductivity and corrosion resistance.
- Thermoplastic glass filled polybutylene terephthalate housing ensures durability and high temperature tolerance.
- Rated for 250V AC voltage and operating temperatures ranging from -40°C to 105°C.
- Straight orientation and solder termination type facilitate ease of installation.
- Ladder frame type with a compact footprint of 30.48 mm length, 10 mm width, and 5.1 mm depth.
- Ideal for industrial controls, embedded systems, medical devices, and intelligent building applications.
Product Description
TE Connectivity 1-2199298-8 is a highly reliable 24-way DIL Socket designed with a 2.54 mm pitch and straight orientation, perfect for through-hole PCB mounting. It features stamped pins constructed from phosphor bronze with tin plating, providing excellent electrical conductivity and durability. The socket's housing is made of thermoplastic material with glass filled polybutylene terephthalate to withstand demanding thermal and mechanical conditions.
This DIL socket supports a 1A current rating and operates safely at voltages up to 250V AC, withstanding temperatures from -40°C to 105°C, ensuring reliability across various industrial and commercial applications.
The ladder frame type and compact dimensions (30.48 mm length, 10 mm width, and 5.1 mm depth) allow efficient use of board space while maintaining robust mechanical and electrical performance.
TE Connectivity's DIL Socket is engineered for easy IC mating and unmating, facilitating quick replacement and system upgrades. Its precise 7.62 mm row width and 2.54 mm pitch conform to standard specifications, making it suitable for a wide range of integrated circuit packaging.
24 contacts provide stable, reliable connection. High-quality phosphor bronze contacts with tin plating enhance performance. Thermoplastic housing material ensures strength and heat resistance. Supports operating temperatures from -40°C to 105°C, suitable for diverse environments.
Through hole mount type for secure PCB attachment. 1A current rating and 250V AC voltage rating meet industrial standards. Compact ladder frame design optimizes space on boards.
This product is ideal for use in industrial controls, intelligent building systems, medical devices, military equipment, and other embedded systems requiring robust and reliable electrical connections. TE Connectivity offers a broad range of DIP socket options to meet various application needs, and this model ensures easy IC replacement and high system flexibility.
Discover more products like this in the EnvMart Electronics Components category and explore TE Connectivity offerings for your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This DIL socket features a 2.54 mm pitch and a straight orientation, making it suitable for through-hole PCB mounting.
It is rated for a current of 1A and a voltage of 250V AC, ensuring compatibility with various electrical applications.
The socket has a length of 30.48 mm, a width of 10 mm, and a depth of 5.1 mm, allowing for efficient use of board space.
The contacts are made of phosphor bronze with tin plating, while the housing is constructed from thermoplastic glass filled polybutylene terephthalate.
It operates safely within a temperature range of -40°C to 105°C, suitable for diverse environments.
This model features 24 contacts, providing a stable and reliable connection for integrated circuits.
The termination type is solder, facilitating secure attachment to the PCB during installation.
The row width is 7.62 mm, conforming to standard specifications for DIL sockets.
It supports through-hole mounting, ensuring secure attachment to printed circuit boards.
It is ideal for use in industrial controls, embedded systems, medical devices, and intelligent building applications.
This model features a ladder frame type, which optimizes space on the PCB while maintaining robust performance.
The country of origin for this DIL socket is China.
