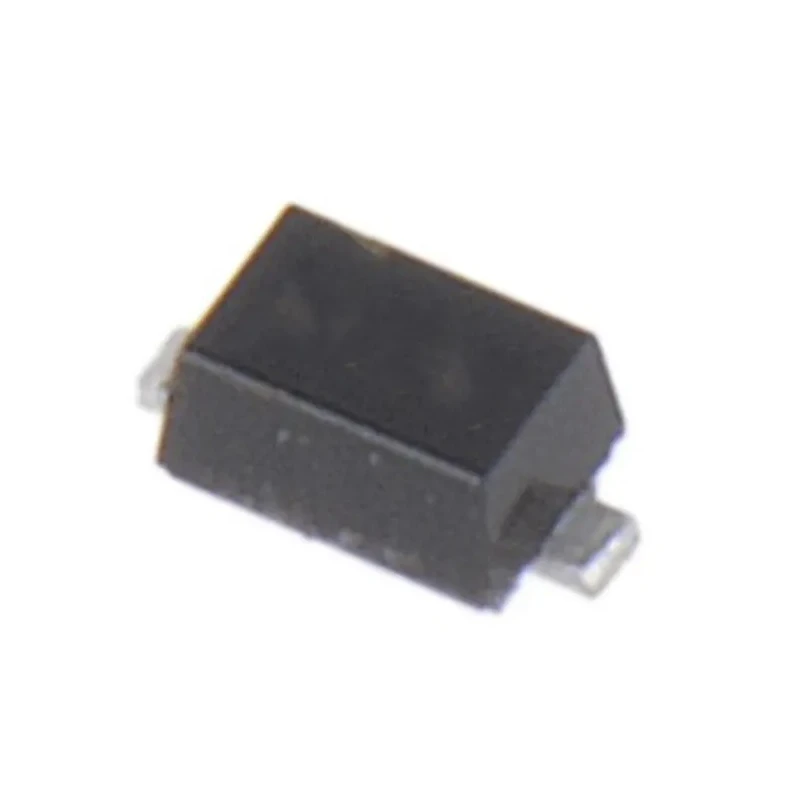

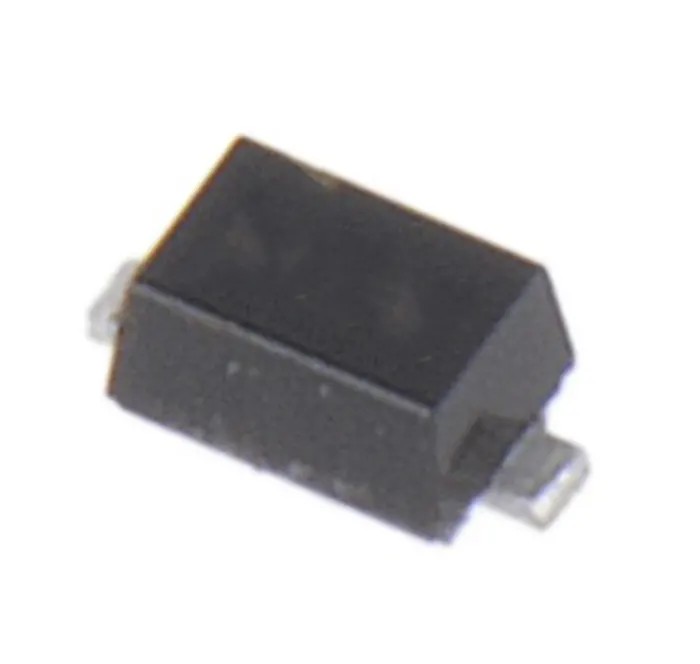

onsemi Zener Diode Voltage Regulator 10 V 500 mW Surface Mount SOD-523 MM5Z10VT1G

Free Delivery in India | Lowest Global Shipping Charges

onsemi Zener Diode Voltage Regulator 10 V 500 mW Surface Mount SOD-523 MM5Z10VT1G

Name: onsemi Zener Diode Voltage Regulator 10 V 500 mW Surface Mount SOD-523 MM5Z10VT1G
Brand: onsemi
SKU: 156402
Price: 0.04 USD
Availability: InStock



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	China
Brand	onsemi
Height	0.7mm
Length	1.7mm
Model	MM5Z10VT1G
Mount Type	Surface
Series	MM5ZxxxT1G
Maximum Operating Temperature	150°C
Package Type	SOD-523
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	100nA
Nominal Zener Voltage Vz	10V
Zener Type	Voltage Regulator
Maximum Zener Impedance	20Ω
Typical Voltage Temperature Coefficient	8mV/K
Lead Finish	100% Matte Sn (Tin)
Low Body Height	0.028in (0.7mm)
Small Body Outline Dimensions	0.047in x 0.032in (1.20mm x 0.80mm)
Standard Zener Breakdown Voltage Range	2.4V to 75V
Qualified Maximum Reflow Temperature	260C
onsemi 1, 10 V Zener Diode, Single 500 mW Surface 2-Pin SOD-523Brand	onsemi

Key Features

This diode features a compact SOD-523 package suitable for high-density PC boards.
Designed for surface mounting with 2 pins for efficient PCB integration.
Has a maximum reverse leakage current of 100 nA ensuring low leakage performance.
Capable of operating between -65°C and 150°C for high reliability.
Offers a low typical voltage temperature coefficient of 8 mV/K for stable voltage regulation.
Provides ESD protection up to class 3 (>16 kV) Human Body Model.
Ideal for applications such as cellular phones and handheld portable electronics where space is limited.
Lead finish is 100% matte tin for superior solderability.

Product Description

onsemi MM5Z10VT1G Zener Diode Voltage Regulator is designed as a compact surface mount device in an SOD-523 package with 2 pins, optimized for voltage regulation in space-constrained applications.

Operating at a nominal zener voltage of 10 V and supporting a maximum power dissipation of 500 mW, this diode ensures stable voltage regulation for sensitive electronic circuits. Its low maximum reverse leakage current of 100 nA and maximum zener impedance of 20 Ω contribute to its reliability in precision voltage stabilization tasks.

The diode supports wide operating temperatures ranging from -65°C up to 150°C, making it suitable for various industrial, automotive, and consumer electronics environments. With an ESD rating of class 3 (>16 kV Human Body Model), it protects circuits against electrostatic discharge damage.

The device complies with RoHS requirements and features a 100% matte tin lead finish for excellent solder performance and environmental compliance. Typical applications include cellular phones, handheld portables, and other high-density printed circuit boards where compact size and robust voltage regulation are critical.

This Zener diode offers a nominal breakdown voltage range from 2.4 V to 75 V with a typical voltage temperature coefficient of 8 mV/K. The package size measures approximately 1.7 mm in length and 0.7 mm in height, facilitating integration into small form factor designs.

It meets the automotive industry standard AEC-Q101, ensuring robust performance in automotive applications. It is qualified for maximum reflow temperature of 260°C ensuring reliability in modern PCB assembly processes.

This onsemi product is made in China and intended for new installations requiring reliable, compact voltage regulation components in electronics manufacturing, telecommunications, and automotive sectors.
