| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 0.3mm |
| Length | 0.6mm |
| Model | GDZ3V6LP3-7 |
| Mount Type | Surface |
| Series | GDZ |
| Maximum Operating Temperature | 150°C |
| Package Type | X3-DFN0603 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 250mW |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 10μA |
| Nominal Zener Voltage Vz | 3.6V |
| Zener Type | Ultra Small |

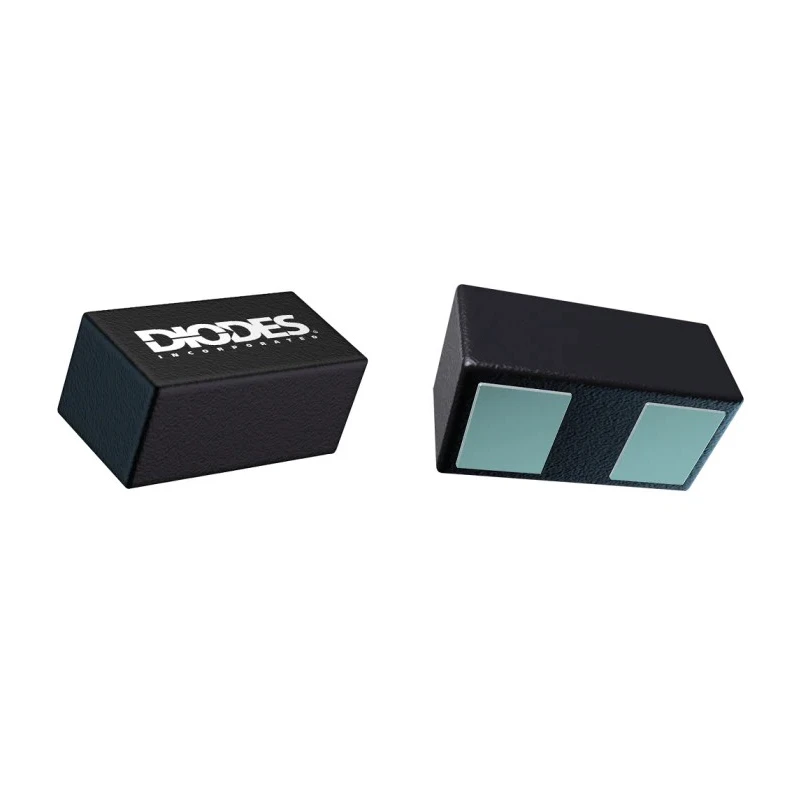

DiodesZetex GDZ3V6LP3-7 is a high precision 3.6 V Zener diode intended for surface mount applications in voltage regulation and protection circuits. It features a compact, ultra-small X3-DFN0603 leadless package measuring 0.6 mm in length and 0.3 mm in height, suitable for modern high-density PCB designs requiring minimal component footprint.
This diode offers a maximum power dissipation of 250 mW and a nominal Zener voltage of 3.6 V with a tight ±5 % tolerance, enabled by an ion-implanted epitaxial wafer process for enhanced voltage stability and accuracy. The device is designed for operation under test currents of 5 mA and limits reverse leakage currents to a maximum of 10 microamperes, supporting stable and reliable performance in voltage reference and stabilization roles.
Operating reliably in a temperature range from -55 °C up to 150 °C, it complies with the automotive standard AEC-Q101, making it well-suited for automotive and industrial electronics applications. It provides effective protection against over-voltage conditions including electrostatic discharge (ESD) and is ideal for use in simple voltage regulators, voltage shifters, and stabilized power supply rails in a plethora of electronics systems.
The GDZ series Zener Diode by DiodesZetex exemplifies cutting-edge semiconductor technology with an ultra-low profile design, ensuring minimal board space consumption without compromising electrical performance.
Nominal Zener voltage is 3.6 volts with ±5 % tolerance. Maximum power dissipation of 250 milliwatts ensures effective voltage regulation. Compact ultra-small leadless X3-DFN0603 surface mount package. Wide operating temperature range from −55 °C to 150 °C for durability.
Automotive standard AEC-Q101 certified. Low maximum reverse leakage current of 10 microamperes. Designed for protection against over-voltage and ESD. Ideal for industrial, automotive, electronic component, and PCB applications.
Explore the extensive range of semiconductor and Zener Diode components at EnvMart for advanced industrial and electronic solutions.
