| Country of Origin | Malaysia |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | 201195 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Wire-to-Board Connector System |
| Contact Plating | Matt Tin |
| Minimum Wire Size mm² | 0.126mm² |
| Maximum Wire Size mm² | 0.34mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |

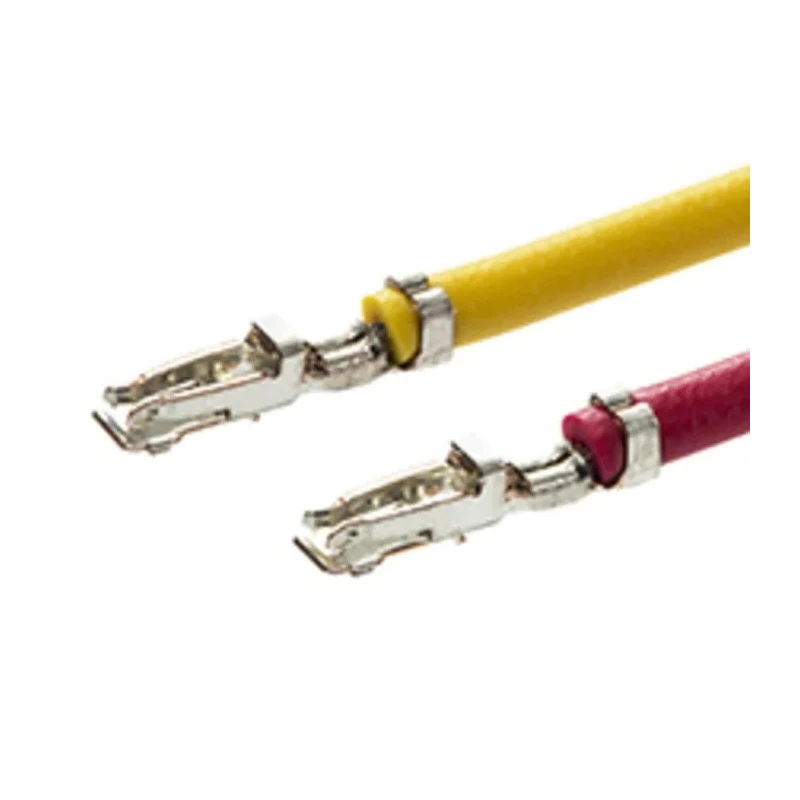

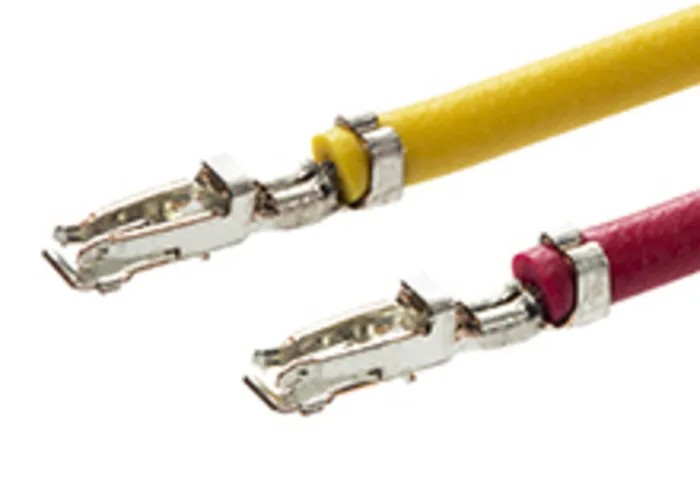

Molex 201195-6000 is a female crimp terminal designed for wire-to-board connector systems in electronic applications. It supports a current of 3A and is compatible with wire sizes from 26 AWG minimum to 22 AWG maximum, corresponding to 0.126mm² to 0.34mm² cross-section. The contact is made from a copper alloy offering excellent conductivity and mechanical strength.
The terminal is plated with matt tin, enhancing corrosion resistance for durable and reliable electrical connections over time. The crimp termination type ensures a secure and stable mechanical and electrical connection, ideal for PCB mounting and wiring harnesses.
This terminal operates efficiently within a temperature range from -40°C to 105°C, making it suitable for various industrial and electronic environments including automation, manufacturing, and consumer electronics. Its maximum contact resistance is 20 milliohms, ensuring minimal power loss and signal degradation.
Manufactured in Malaysia, the Molex 201195-6000 reflects consistent quality and is part of the widely used 201195 series of crimp terminals. The product is designed for exact fit and easy installation with compatible connectors.
Constructed from copper alloy for durability and conductivity. Matt tin plating to resist corrosion and ensure reliable contact. Crimp termination enables strong mechanical and electrical connection. Wide operating temperature range from -40°C to 105°C.
Low maximum contact resistance of 20mΩ for efficient performance. Supports wire sizes from 26 AWG to 22 AWG. Current rating of 3 Amps suitable for low power applications. Manufactured in Malaysia under quality standards.
This Molex crimp terminal is highly suited for electronics assembly, industrial automation wiring, and any application requiring reliable PCB connections. For detailed design and assembly support, users can utilize DesignSpark software to access 3D models, schematics, and footprint downloads. Explore our extensive catalog for more electronic connectors and terminal solutions on EnvMart.
