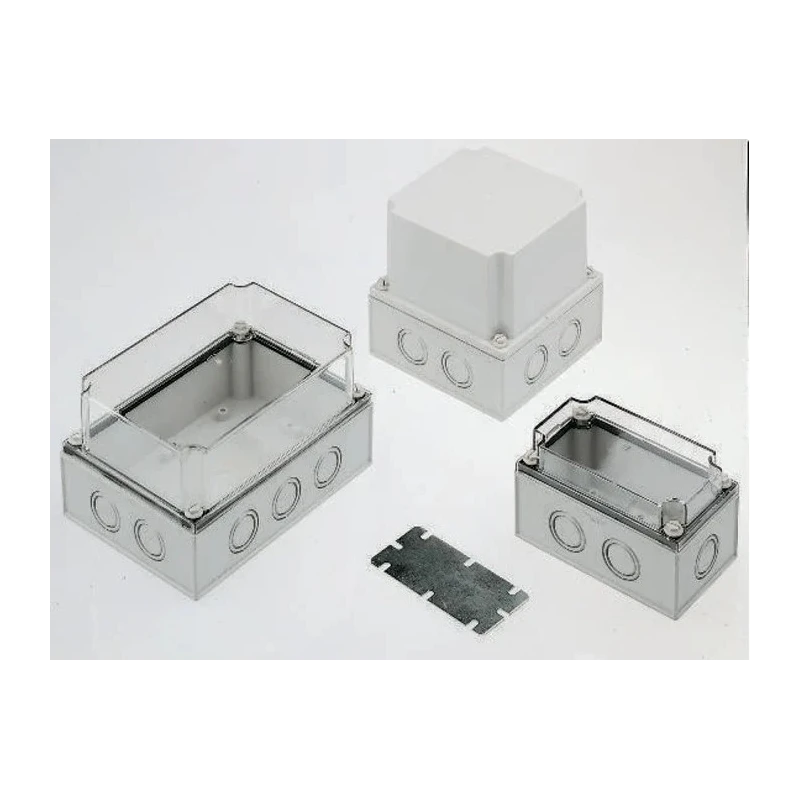

Fibox Grey Polycarbonate Enclosure IP67 IP66 IK08 175 mm x 255 mm x 180 mm PCM 200/175 XT ENCLOSURE

Fibox PCM 200/175 XT ENCLOSURE is a high-quality grey polycarbonate enclosure designed to protect electrical and electronic components across industrial, electrical, automation, and measurement applications. It features an external size of 175 mm height, 255 mm length, and 180 mm width, making it ideal for a diverse range of uses.

This enclosure offers robust ingress protection with IP67 and IP66 ratings, ensuring excellent protection against dust and water ingress under tough conditions. The IK08 impact resistance rating provides added mechanical strength against external shocks and impacts.

The enclosure is constructed with a polyurethane gasket resistant to oil, water, and acidic substances, enhancing its durability in harsh environments. Its lids are secured with captive polyamide screws, and the enclosure is fitted with metric knockouts to facilitate cable routing and flexible installation arrangements.

With a flame resistance rating of UL94-V5 and self-extinguishing properties, this enclosure ensures safety and compliance with industrial standards. The operational temperature range from -40°C to +80°C allows use in a wide variety of climates and environments, with short-term tolerance up to +120°C.

Typical industrial applications include test and measurement instrumentation, medical tools housing, transportation equipment, industrial control systems, and lighting applications. This product is made in Finland, adhering to high manufacturing standards and approved under UL, GOST R, GL, FIMKO, and EN 62208:2003 standards.

The package includes the enclosure with a TPE gasket, screws for mounting plates or DIN rails, and cover screws for the lid, providing a complete solution for installations. Constructed from durable polycarbonate material ensuring robust protection.

Provides high ingress protection with IP67 and IP66 ratings suitable for indoor and outdoor environments. IK08 rated for impact resistance, offering mechanical protection against external impacts. Features polyurethane gasket for excellent oil, water, and acid resistance.

Equipped with captive polyamide screws securing the lids firmly. Includes metric knockouts for flexible cable entry solutions. Flame resistance rated at UL94-V5 and self-extinguishing for safety. Temperature operational range from -40°C to +80°C, capable of short-term exposure up to +120°C.
