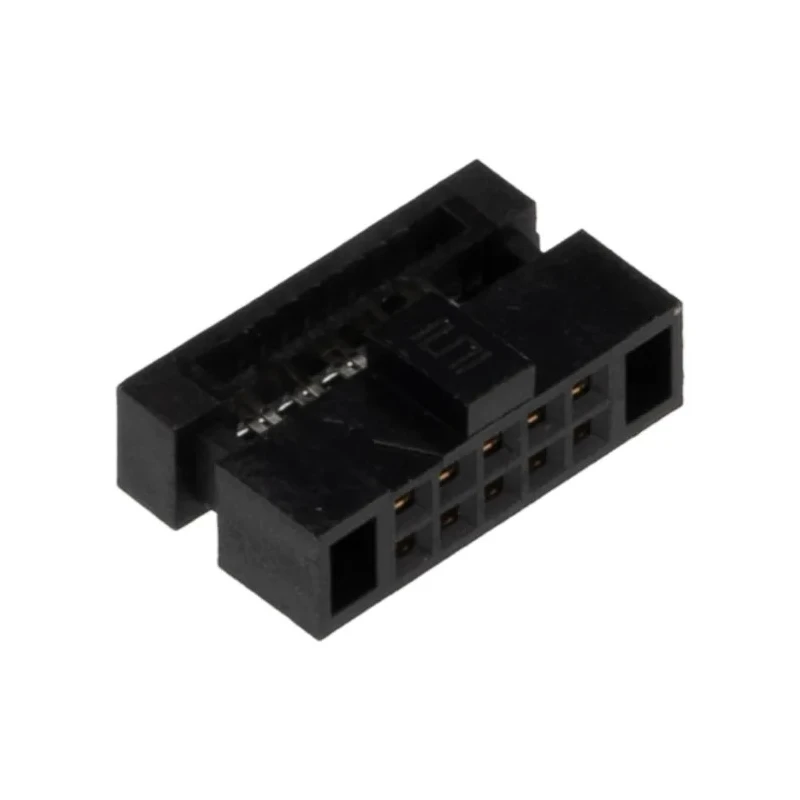

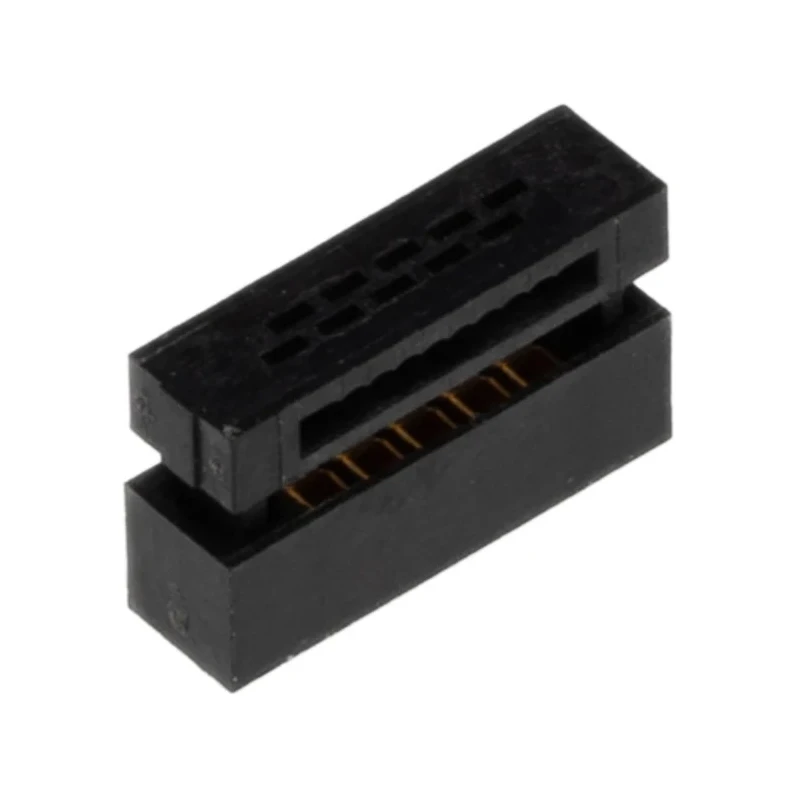

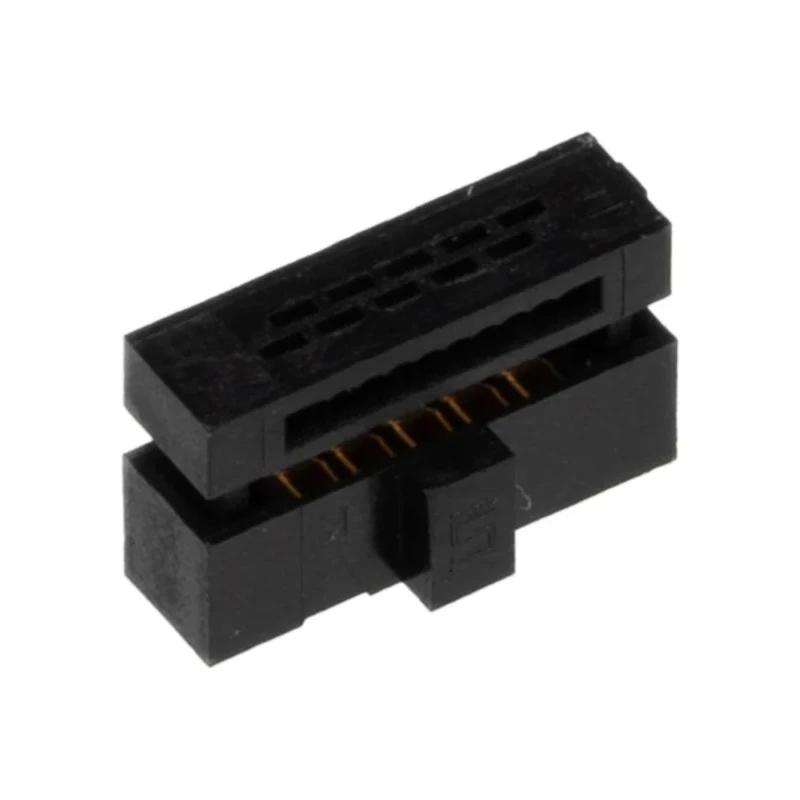

Samtec 10-Way 2 Row IDC Connector for Surface Mount, Straight Orientation, Gold or Tin over Nickel Plating FFSD-05-01-N

Free Delivery in India | Lowest Global Shipping Charges

Samtec 10-Way 2 Row IDC Connector for Surface Mount, Straight Orientation, Gold or Tin over Nickel Plating FFSD-05-01-N

Name: Samtec 10-Way 2 Row IDC Connector for Surface Mount, Straight Orientation, Gold or Tin over Nickel Plating FFSD-05-01-N
Brand: Samtec
SKU: 154791
Price: 6.16 USD
Availability: InStock



Category IDC Connector Brand Samtec Condition New

Specifications

Country of Origin	Costa Rica
Brand	Samtec
Orientation	Straight
Current	2.3A
Model	FFSD-05-01-N
Mount Type	Surface
Housing Material	Polybutylene Terephthalate
Contact Material	Beryllium Copper
Series	FFSD
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	1.27mm
Standards/Approvals	RoHS Compliant
Contact Plating	Gold or Tin over Nickel
Number of Contacts	10

Key Features

Features 10 contacts arranged in 2 rows for compact PCB integration.
Supports a maximum current of 2.3A for efficient power transmission.
Mount type is surface; termination is Insulation Displacement Contact (IDC).
Contact plating is Gold or Tin over Nickel ensuring durability and conductivity.
Contact material consists of Beryllium Copper for excellent mechanical and electrical performance.
Housing made from Polybutylene Terephthalate for robust environmental resistance.
Operating temperature range from -40°C to 105°C suitable for industrial environments.
Compliance with RoHS standards guarantees environmental safety and quality.

Product Description

Samtec FFSD-05-01-N 10-Way 2 Row IDC Connector is a high-quality electrical connector designed for surface mount printed circuit boards. With a pitch of 1.27 mm and straight orientation, this connector provides reliable and precise connections necessary for a wide range of electronic applications.

The device features Tiger Eye™ high-reliability contacts made of Beryllium Copper; these contacts are plated in Gold or Tin over Nickel to ensure durability and excellent electrical conductivity. The housing is constructed from Polybutylene Terephthalate, offering strong environmental resilience against mechanical and thermal stresses.

Rated for a current capacity of 2.3 Amps, this connector functions reliably within a temperature range of -40°C to 105°C, making it well-suited for industrial, communications, and electronic manufacturing environments. The IDC termination type enables effortless and secure wire connection without soldering.

RoHS compliance certifies the product’s adherence to global environmental standards. The connector also incorporates design features such as a polarization key and optional strain relief to improve installation accuracy and durability.

Features 10 contacts arranged in 2 rows for compact PCB integration. Supports a maximum current of 2.3A for efficient power transmission. Mount type is surface; termination is IDC for quick assembly. Contact plating is Gold or Tin over Nickel ensuring corrosion resistance.

Made with Beryllium Copper contacts and Polybutylene Terephthalate housing materials. Operates between -40°C and 105°C, suitable for demanding environments. RoHS compliant for hazardous substance regulation adherence. Offers polarization key and strain relief for improved connection stability.

Manufactured in Costa Rica following stringent quality controls.

This IDC Connector is ideal for use in electronic components, power connectors, industrial electronics, and PCB wiring applications. Its robust construction and precise design make it a dependable choice for professional electronic assembly and manufacturing.
