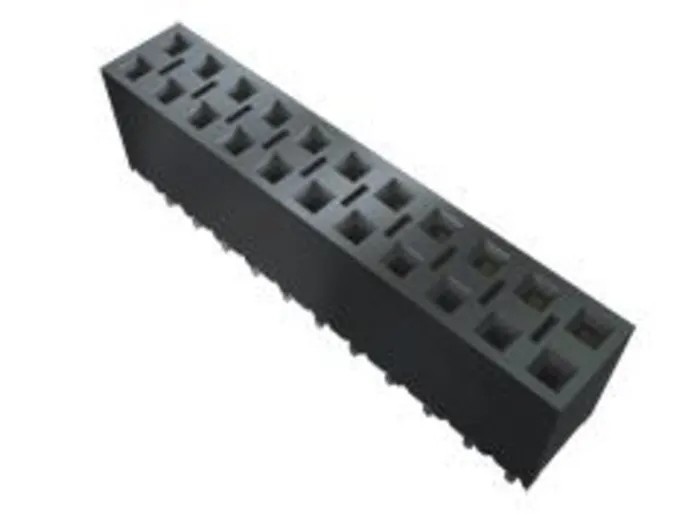

Samtec BCS Series Straight Through Hole PCB Socket, 8-Contact, 2 Row, 2.54 mm Pitch, 450V, 4.6A Current BCS-104-L-D-HE

Free Delivery in India | Lowest Global Shipping Charges

Samtec BCS Series Straight Through Hole PCB Socket, 8-Contact, 2 Row, 2.54 mm Pitch, 450V, 4.6A Current BCS-104-L-D-HE

Name: Samtec BCS Series Straight Through Hole PCB Socket, 8-Contact, 2 Row, 2.54 mm Pitch, 450V, 4.6A Current BCS-104-L-D-HE
Brand: Samtec
SKU: 154783
Price: 2.88 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	450V
Brand	Samtec
Orientation	Straight
Current	4.6A
Model	BCS-104-L-D-HE
Mount Type	Through Hole
Special Features	Top and bottom entry pass-through options
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	BCS
Termination	Through-hole
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Pass-Through Socket Strip
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	8
Connector System	Board-to-Board
Contact System	Tiger Claw™

Key Features

Supports a maximum current of 4.6 amperes for reliable electrical performance.
Constructed using liquid crystal polymer housing material for durability.
Contact material is bronze with gold plating for enhanced conductivity and corrosion resistance.
Designed with Tiger Claw™ contact system ensuring secure board-to-board connection.
Operates safely within -55°C to 125°C temperature range.
Rated for a voltage of 450 volts to meet demanding electronic requirements.
Features straight orientation and vertical, horizontal contact system configuration.
Special top and bottom entry pass-through design allows flexible usage in single and double row configurations.

Product Description

Samtec BCS-104-L-D-HE is a high-quality straight through hole PCB socket designed for board-to-board connectivity in electronic assemblies. It offers 8 contacts arranged in 2 rows, each spaced at a pitch of 2.54 mm (0.1 inches), making it suitable for a wide range of PCB applications requiring precise and reliable connection.

Manufactured with a liquid crystal polymer housing, this socket provides excellent mechanical strength and thermal stability essential for harsh operating environments ranging from -55°C up to 125°C. The bronze contacts are plated with gold to ensure superior conductivity and resistance against corrosion.

Its Tiger Claw™ contact system guarantees a firm grip on the mating component, reducing contact resistance and enhancing signal integrity. Rated for 4.6 amperes of current and 450 volts of voltage, this connector is ideal for applications demanding robust electrical performance.

The pass-through socket strip design features both top and bottom entry options, facilitating easy assembly in single or double row configurations of up to 100 pins. The termination type is solder through-hole, which provides a secure mechanical attachment to PCB substrates, widely used in industrial, manufacturing, electronic assembly, and prototyping sectors.

Supports current rating up to 4.6A with 450V voltage handling capability. Contact material bronze with gold plating ensures durability and low electrical resistance. Liquid crystal polymer housing delivers stability in harsh temperature conditions.

Pass-through top and bottom entry options enhance assembly flexibility. Suitable for single and double row PCB socket applications up to 100 pins. Through-hole solder termination type offers solid mechanical connection.

This Samtec BCS Series PCB socket is widely used in electronics manufacturing, industrial equipment, and laboratory electronic setups where reliable and consistent connectivity solutions are essential. Browse EnvMart's vast selection of PCB Sockets and electronic connectors for all your project needs.
