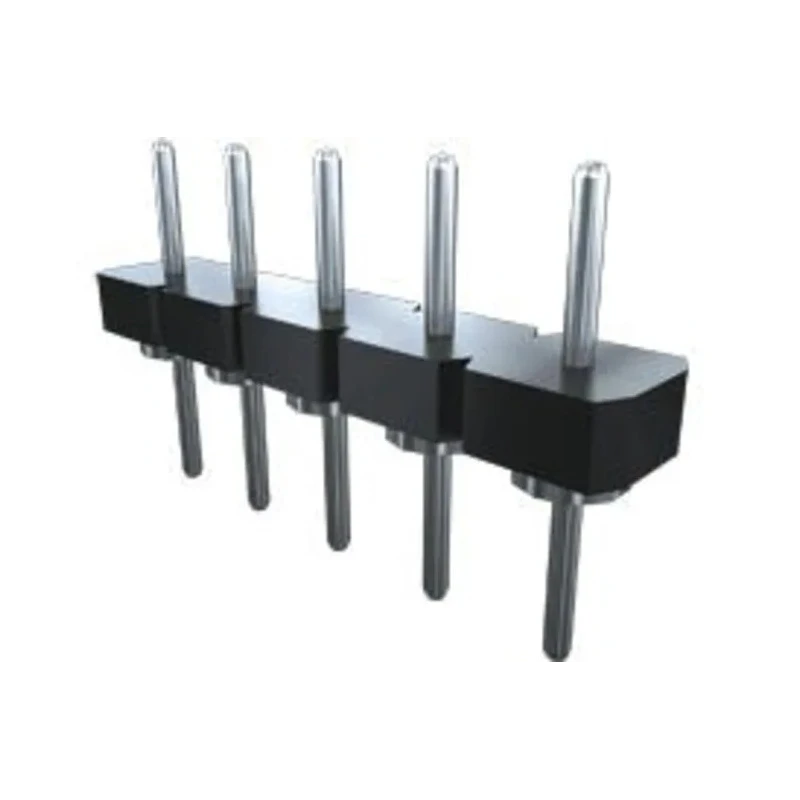

Samtec BBL Series Straight Through Hole Pin Header, 5 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded BBL-105-G-E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Model | BBL-105-G-E |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Brass |
| Series | BBL |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3.18mm |
| Mating Pin Length | 2.74mm |
Key Features
- Features a low-profile design achieving 3.89 mm board spacing when mated with SL Series connectors.
- Constructed with a liquid crystal polymer housing for durability and high performance.
- Male brass contacts plated with gold for enhanced conductivity and corrosion resistance.
- Designed for through-hole mounting with a single row and unshrouded configuration.
- Operates reliably from -55°C up to 125°C ambient temperatures.
- Tail pin length of 3.18 mm and mating pin length of 2.74 mm for secure solder connections.
- Ideal for industrial, electronic, and manufacturing applications requiring board-to-board connectivity.
Product Description
Samtec BBL-105-G-E Straight Through Hole Pin Header is a high-quality connector designed for electronic component board-to-board applications. This 5-contact pin header features a 2.54 mm pitch and a single row of unshrouded male pins. Its housing is made from liquid crystal polymer, providing excellent stability and durability under demanding conditions.
The connector is designed for through-hole mounting, offering secure and reliable solder termination with a tail pin length of 3.18 mm. The gold-plated brass contacts ensure superior electrical conductivity and resistance to corrosion, essential for long-lasting connections in industrial environments.
The low-profile design achieves a 3.89 mm board spacing when mated with the compatible SL Series connectors, optimizing space on densely populated circuit boards. It operates effectively in a wide temperature range from -55°C to 125°C, making it suitable for harsh operating conditions.
Applications include PCB manufacturing, industrial automation, telecommunications, and other electronics sectors requiring dependable and flexible board interconnections. The unshrouded style facilitates easy inspection and testing of connections.
Low-profile design providing 3.89 mm board spacing. Liquid crystal polymer housing for durability. Gold-plated brass contacts for conductivity and corrosion resistance. Through-hole mount with solder termination. Operating temperature range from -55°C to 125°C.
5 contacts with 2.54 mm pitch and 1 row. Unshrouded male contact configuration.
Choose Samtec BBL Series pin headers for reliable and precise electronic board connections. Explore more PCB Headers and connectors at EnvMart to support your industrial, laboratory, and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this pin header is 2.54 mm.
This model features 5 contacts.
It operates effectively in a temperature range from -55°C to 125°C.
The housing is constructed from liquid crystal polymer, providing durability and stability.
This pin header is designed for through-hole mounting with solder termination.
The tail pin length is 3.18 mm, ensuring secure solder connections.
It features gold-plated brass contacts for enhanced conductivity and corrosion resistance.
The low-profile design achieves a board spacing of 3.89 mm when mated with compatible SL Series connectors.
The contact gender of this pin header is male.
It is suitable for applications in PCB manufacturing, industrial automation, and telecommunications requiring board-to-board connectivity.
This model has 1 row of unshrouded male pins.
It belongs to the board-to-board connector system, designed for reliable interconnections.
