JAE TX24 Series Straight Through Hole PCB Socket, 50-Contact, 2 Row, 1.25 mm Pitch, 12A, 500V

Free Delivery in India | Lowest Global Shipping Charges

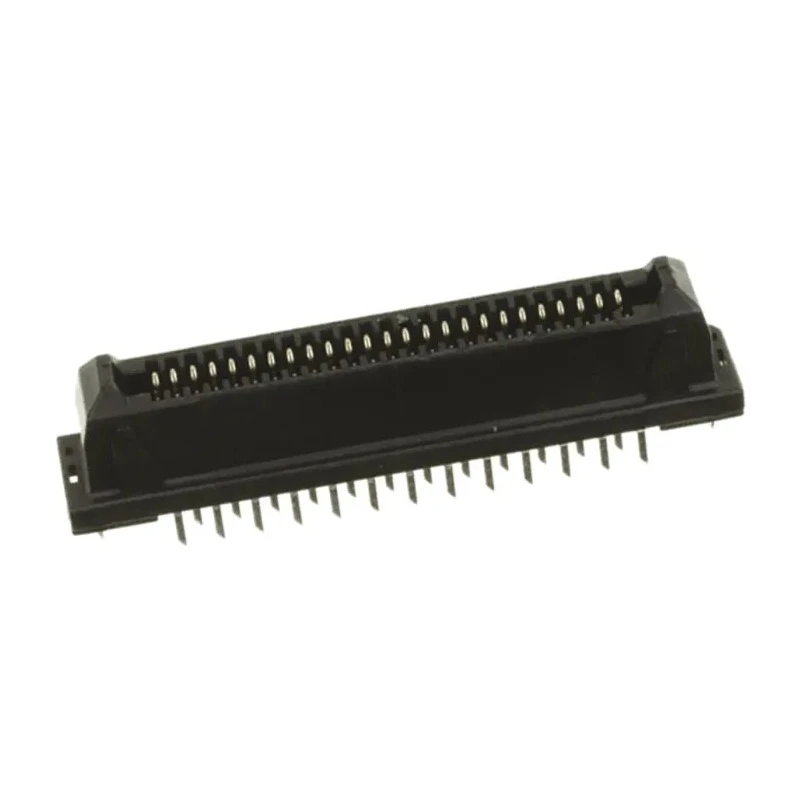

JAE TX24 Series Straight Through Hole PCB Socket, 50-Contact, 2 Row, 1.25 mm Pitch, 12A, 500V



Category PCB Sockets Brand JAE Condition New

Specifications

Country of Origin	India
Voltage	500V
Brand	JAE
Orientation	Straight
Current	12A
Model	TX24
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Polybutylene Terephthalate
Contact Material	Copper
Series	TX24
Termination Type	Solder
Maximum Operating Temperature	80°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	1.25mm
Contact Plating	Gold
Number of Contacts	50
Contact Gender	Female
Connector System	Board-to-Board

Key Features

The socket supports a current rating of 12A.
It features a fibreglass reinforced polybutylene terephthalate housing material.
The connector is through hole mounted with a straight orientation.
Contact material is copper with gold plating for durability.
Operating temperature range is -40°C to 80°C, suitable for varied environments.
The connector system is designed for board-to-board applications.
Its non-pin type contacts provide resistance to twisting forces and stable mating.
The series TX24 ensures reliable and stable connection with long electrical engagement length.

Product Description

JAE TX24-50R-6ST-H1E PCB Socket is a high-reliability, straight through hole connector designed for board-to-board connections. Featuring 50 female contacts arranged in 2 rows with a 1.25 mm pitch, it supports a current capacity of 12A and voltage rating up to 500V. The socket incorporates a fibreglass reinforced polybutylene terephthalate housing that offers mechanical strength and stability for harsh industrial environments.

The copper contacts are plated with gold, enhancing conductivity and corrosion resistance, making it suitable for extended operational use in electronic manufacturing, industrial automation, and instrumentation applications. The non-pin type contact design withstands mating and unmating twisting forces, accompanied by a distinctive 'click action' to confirm secure connections.

Designed for through hole mounting with a straight orientation, the socket's housing is equipped with polarizing keys for proper mating, making it suitable for rack and panel connector setups. Operating temperature ranges from -40°C to 80°C, allowing flexible deployment in a variety of environmental conditions.

This TX24 series connector socket is ideal for electronics assembly lines, PCB design and prototyping, and commercial electrical systems where durable, high-performance connections are essential.

The socket supports a current rating of 12A. Fibreglass reinforced polybutylene terephthalate housing for mechanical stability. Through hole mount type with straight orientation. Copper contacts with gold plating for reliability.

Operating temperature range of -40°C to 80°C. Board-to-board connector system ensuring stable engagement. Voltage rating of 500V suitable for various applications. Non-pin type contacts with twist resistance for durability.

Polarizing keys for correct mating and panel connector usage.

EnvMart offers this JAE TX24 series PCB socket as a trusted component for electronics and industrial uses, backed by robust product documentation and compliance with industry standards.

Explore more products in our PCB Sockets category.
