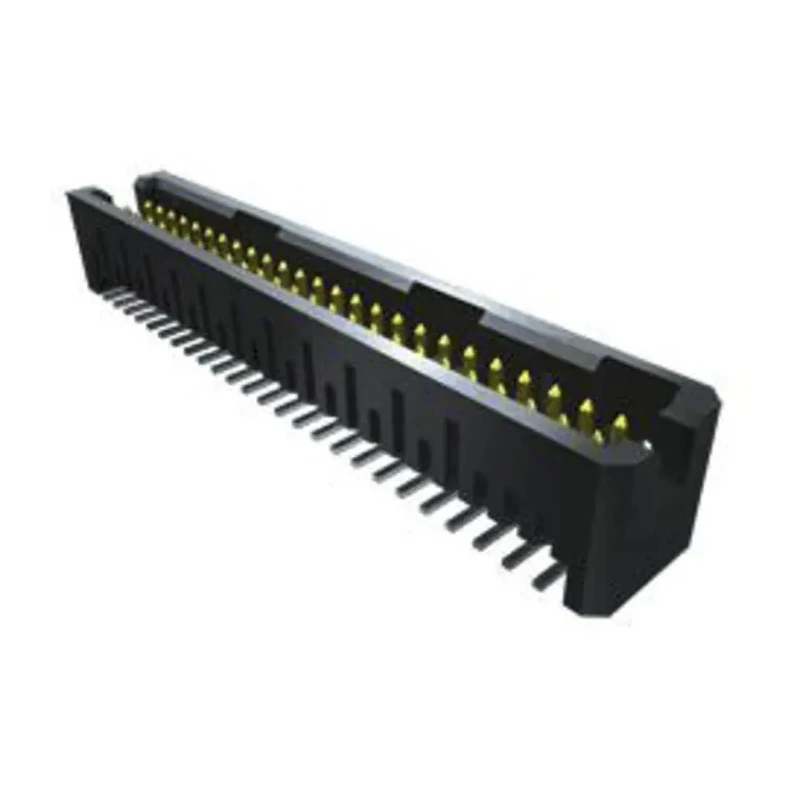

Samtec TFML Series Straight Through Hole PCB Header, 20 Contacts, 1.27 mm Pitch, 2 Row, Shrouded TFML-110-02-S-D-LC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3A |
| Model | TFML-110-02-S-D-LC |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TFML |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Supports a continuous current of 3 Amps for robust electrical performance.
- Constructed with liquid crystal polymer housing for enhanced durability.
- Phosphor bronze contacts plated with gold to ensure excellent conductivity and corrosion resistance.
- Designed for through-hole mounting facilitating secure solder connections on PCB.
- Operating temperature range from -55°C to 125°C suitable for harsh conditions.
- Offers a 250V voltage rating suitable for various low voltage applications.
- Features solder termination and male contact gender for compatibility with wire-to-board connections.
- Shrouded design enables blind mating to protect against misalignment during installation.
Product Description
Samtec TFML-110-02-S-D-LC is a high-quality PCB Header designed for electronic and electrical applications requiring reliable wire-to-board connections. It belongs to the TFML series featuring a shrouded straight through-hole construction with 20 gold-plated phosphor bronze contacts arranged in 2 rows at a precise 1.27 mm pitch.
This connector supports a current rating of 3 Amps and voltage up to 250V, making it suitable for medium power PCB assemblies in industrial, communication, and consumer electronics sectors. The housing material is liquid crystal polymer, providing thermal stability and mechanical strength, ideal for environments with operating temperatures ranging from -55°C to 125°C.
The connector’s male contact gender and solder termination enable robust and durable electrical connections essential for manufacturing and repair operations. The shrouded body design enhances safety and reduces the risk of bent pins during blind mating.
With its through-hole mounting type, the TFML-110-02-S-D-LC header ensures secure solder joints, optimum mechanical strength, and excellent performance in PCB layouts. Its rugged features cater to applications requiring high reliability and longevity.
Supports 3 Amp continuous current capacity. Gold-plated phosphor bronze contacts for low resistance connections. Shrouded housing enables safe and accurate blind mating. Liquid crystal polymer body provides thermal and mechanical durability.
Wide operating temperature range from -55°C up to 125°C. Straight, 2-row, wire-to-board through-hole configuration with 1.27 mm pitch. Voltage rating of 250V suitable for diverse electronics applications. Male contact gender with solder termination ensures solid PCB connections.
This PCB header is applicable in industrial electronics manufacturing, automation control equipment, and communication devices. Use it for reliable connector interface solutions requiring durability and precision. Browse more PCB Headers from Samtec and similar top-quality brands in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TFML-110-02-S-D-LC PCB header supports a continuous current of 3 Amps.
It has a voltage rating of 250V, making it suitable for various low voltage applications.
The contacts are arranged at a pitch of 1.27 mm.
The housing is constructed from liquid crystal polymer, providing thermal stability and mechanical strength.
This model features 20 contacts arranged in 2 rows.
It uses solder termination, ensuring robust and durable electrical connections.
The operating temperature range is from -55°C to 125°C, suitable for harsh conditions.
The contacts are made of phosphor bronze and are gold-plated for excellent conductivity and corrosion resistance.
Yes, it is designed for through-hole mounting, facilitating secure solder connections on PCB.
The contacts are male, which is compatible with wire-to-board connections.
It is applicable in industrial electronics manufacturing, automation control equipment, and communication devices.
The shrouded design enables blind mating, which protects against misalignment during installation.
