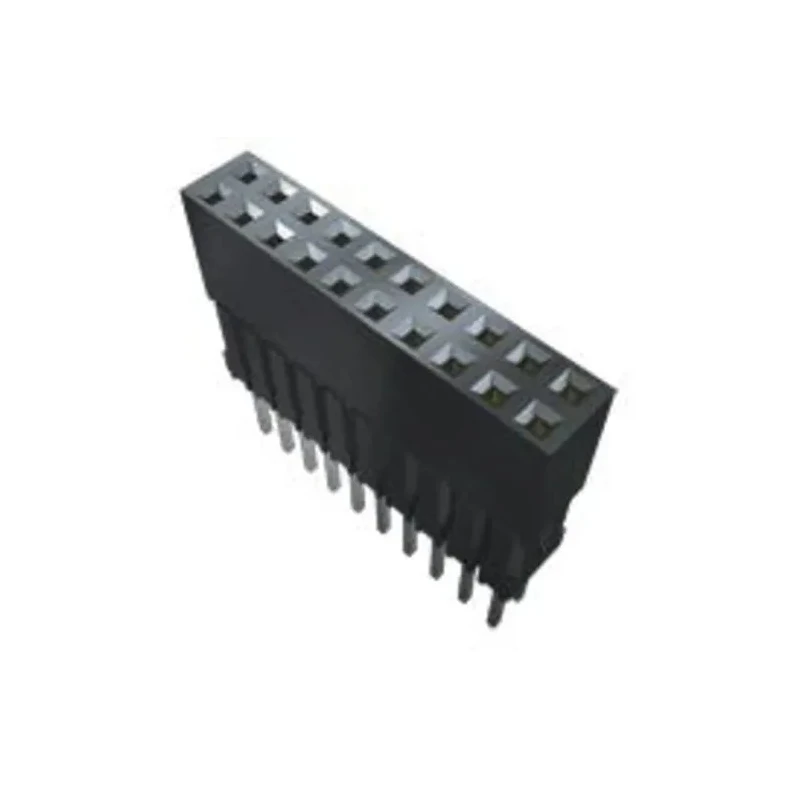

Samtec ESQ Series 26-Contact 2 Row 2.54 mm Pitch Straight Through Hole PCB Socket ESQ-113-14-G-D

Free Delivery in India | Lowest Global Shipping Charges

Samtec ESQ Series 26-Contact 2 Row 2.54 mm Pitch Straight Through Hole PCB Socket ESQ-113-14-G-D

Name: Samtec ESQ Series 26-Contact 2 Row 2.54 mm Pitch Straight Through Hole PCB Socket ESQ-113-14-G-D
Brand: Samtec
SKU: 154743
Price: 8.72 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	225V
Brand	Samtec
Orientation	Straight
Current	23A
Model	ESQ-113-14-G-D
Mount Type	Through Hole
Special Features	Standard and low insertion force contacts with .025" (0.635 mm) square tails for PC/104™ applications
Housing Material	Black Glass Filled Polyester
Contact Material	Bronze
Series	ESQ
Termination	Through-hole
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Elevated Socket Strip
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	26
Connector System	Board-to-Board
Contact System	Tiger Buy™

Key Features

This PCB socket is designed with a black glass filled polyester housing for enhanced durability.
It features a solder termination type suitable for through-hole mounting.
Contacts are made of bronze with gold plating to ensure reliable electrical connection.
The socket operates reliably within a temperature range of -55°C to 125°C.
Rated for 23A current and 225V voltage to handle industrial electronic loads.
The contact system uses Tiger Buy™ technology to provide standard and low insertion force contacts.
Designed for vertical orientation and compatible with PC/104™ applications with .025" (0.635 mm) square tails.
The socket has a pitch of 2.54 mm and features 2 rows of contacts for compact board layouts.

Product Description

Samtec ESQ-113-14-G-D is a high-quality, straight through hole PCB socket from the ESQ Series, featuring 26 contacts arranged in 2 rows with a 2.54 mm pitch. Designed specifically for board-to-board connector systems, this socket uses solder termination suitable for through-hole mounting and is constructed with durable black glass filled polyester housing.

The contacts are made from bronze and plated with gold, delivering excellent conductivity and corrosion resistance, suitable for demanding industrial applications. This component supports a 23A current and operates at voltages up to 225V, making it capable for use in a variety of electronic equipment.

The socket functions reliably over a broad temperature range from -55°C to 125°C, ensuring stable performance in harsh environments. Its Tiger Buy™ contact system features both standard and low insertion force contacts with .025" (0.635 mm) square tails, which are compatible with PC/104™ applications and related industrial designs.

This elevated socket strip is oriented vertically and is ideal for single, double, or triple-row configurations up to 108 pins. Its design prioritizes ease of installation and durability, making it suitable for industrial, electronic manufacturing, and laboratory equipment assembly.

Durable black glass filled polyester housing. Gold-plated bronze contacts for enhanced conductivity. Through-hole solder termination for secure mounting. High current capacity and voltage rating. Wide operating temperature range for industrial environments.

Tiger Buy™ contact system with low insertion force. Compatibility with PC/104™ industrial applications.

This Samtec PCB socket is widely used in industrial electronic components and power connectors applications, providing reliable connections for board-to-board assemblies. Browse other selections within our PCB Sockets category for complementary components and connectors from leading brands.
