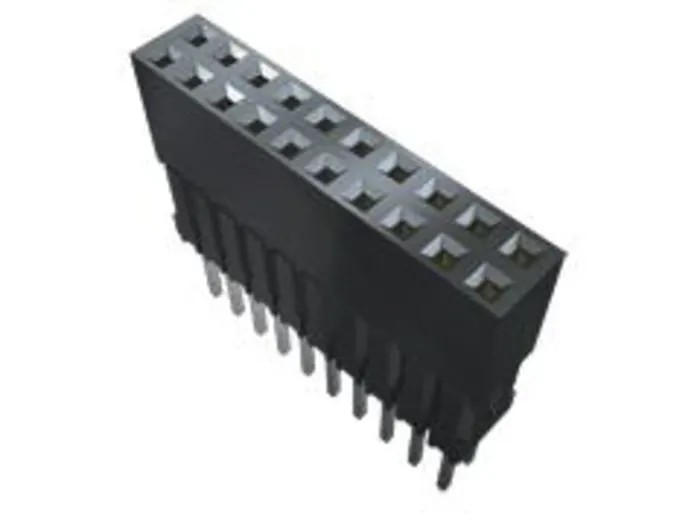

Samtec ESQ Series Straight Through Hole PCB Socket 40-Contact 2 Row 2.54 mm Pitch Solder ESQ-120-44-T-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 225V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 23A |
| Model | ESQ-120-44-T-D |
| Mount Type | Through Hole |
| Special Features | Standard and low insertion force contacts with .025" (0.635 mm) square tails for PC/104™ applications |
| Housing Material | Black Glass Filled Polyester |
| Contact Material | Bronze |
| Series | ESQ |
| Termination | Through-hole |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Elevated Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Matt Tin |
| Number of Contacts | 40 |
| Connector System | Board-to-Board |
| Contact System | Tiger Buy™ |
Key Features
- Features 40 reliable contacts arranged in 2 rows with 2.54 mm pitch.
- Constructed from black glass filled polyester housing with bronze contacts plated in matt tin.
- Supports operating voltages up to 225 V and currents up to 23 A.
- Designed for straight orientation and through-hole mounting for secure soldered connection.
- Operates reliably in temperatures ranging from -55°C to 105°C.
- Includes standard and low insertion force contacts with 0.025 inch square tails for PC/104 applications.
- Part of the ESQ series with Tiger Buy™ contact system ensuring durability.
- Ideal for industrial, electronic manufacturing, and board assembly applications.
Product Description
Samtec ESQ-120-44-T-D PCB Socket is a high-quality straight through hole socket connector featuring 40 contacts arranged in 2 rows with a 2.54 mm pitch. This elevated socket strip is designed for robust board-to-board connections, providing reliable solder termination and long-lasting performance.
The housing is made of black glass filled polyester material delivering durability and heat resistance, while the bronze contacts with matt tin plating ensure excellent conductivity and corrosion resistance. This connector supports up to 225 V voltage and 23 A current, suitable for various electronic applications.
It operates efficiently in harsh conditions ranging from -55°C minimum to 105°C maximum operating temperature. The ESQ-120-44-T-D includes special features such as standard and low insertion force contacts with 0.025 inch square tails designed for PC/104 compatibility, benefiting embedded system assemblies among others.
With its straight orientation and through-hole mount type, it guarantees a stable mechanical fit for printed circuit boards, ideal for industrial electronics manufacturing, prototyping, and repair work.
40 contacts in 2 rows ensure multiple connection points with precision spacing. Black glass filled polyester housing ensures electrical insulation and mechanical strength. Bronze contact material with matt tin plating provides reliable electrical performance.
Rated for 225 V and 23 A for diverse electronic usages. Wide operating temperature range from -55°C to 105°C for industrial reliability. Includes Tiger Buy™ contact system for enhanced connection integrity. Compatible with PC/104 and similar embedded computing standards.
Through-hole solder termination offers robust mounting on PCBs.
This connector is suitable for diverse industrial toolsets, electronics manufacturing, laboratory equipment assemblies, and other professional PCB connection needs. It enables engineers and technicians to achieve reliable and efficient connections in electronic products.
Explore more Samtec connectors and sockets in the Electronics & Electricals section on EnvMart for high-quality, industry-grade components optimized for performance and durability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum voltage of 225 V and a current rating of 23 A.
It features a 2.54 mm pitch with 40 contacts arranged in 2 rows.
The housing is made from black glass filled polyester, while the contacts are bronze plated with matt tin.
It operates reliably in temperatures ranging from -55°C to 105°C.
This socket uses through-hole solder termination for secure mounting on printed circuit boards.
It includes standard and low insertion force contacts with 0.025 inch square tails designed for PC/104 applications.
It is designed for through-hole mounting, ensuring a stable mechanical fit.
This model utilizes a board-to-board connector system with a Tiger Buy™ contact system for enhanced connection integrity.
This socket has 2 rows of contacts.
It is suitable for industrial electronics manufacturing, prototyping, and repair work among other professional PCB connection needs.
The country of origin for this product is India.
The contacts are plated with matt tin, providing reliable electrical performance and corrosion resistance.
