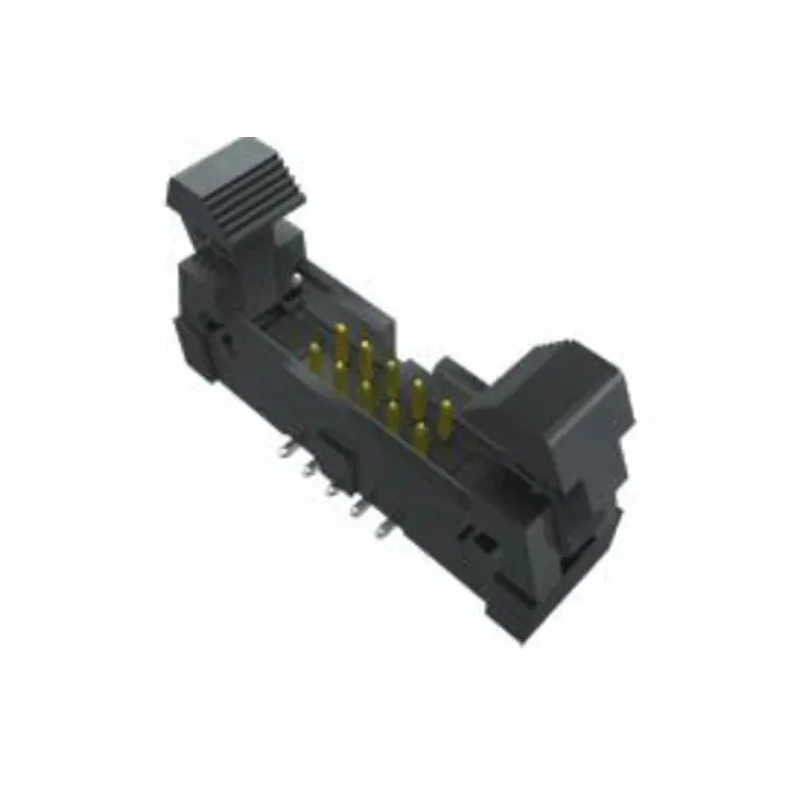

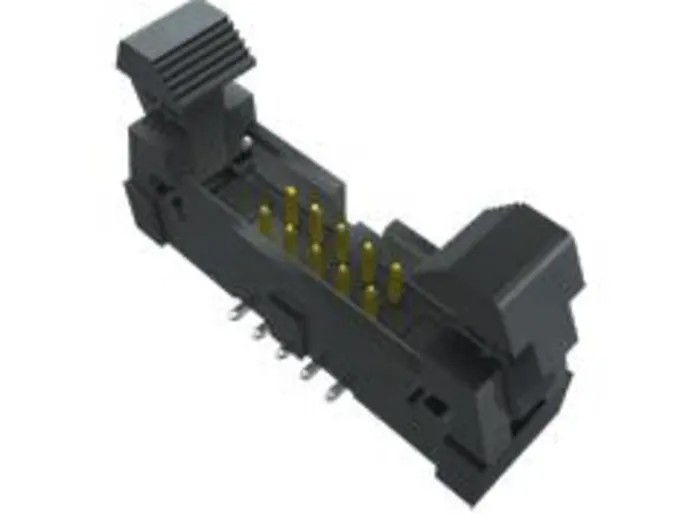

Samtec EHF Series Straight Surface PCB Header 10 Contact 1.27 mm Pitch 2 Row Shrouded EHF-105-01-L-D-SM-LC

Samtec EHF-105-01-L-D-SM-LC is a high-quality Straight Surface PCB Header designed for electronic applications requiring reliable board-to-board connections. This 10-contact connector features a 1.27 mm pitch and a robust liquid crystal polymer housing that ensures excellent mechanical and thermal properties suitable for industrial electronics.

The phosphor bronze contacts, plated with gold or tin, provide superior electrical conductivity and corrosion resistance. Its shrouded design protects the contacts and provides secure mating while minimizing the risk of damage or misalignment.

The connector is surface mounted, with a male contact gender and solder termination type, designed for ease of assembly on printed circuit boards. It operates reliably in harsh environments, supporting temperatures from -55°C to 125°C, making it suitable for industrial, manufacturing, and electronic equipment applications.

Additional features include a polarization notch and optional caps to lock cables securely, enhancing connection stability. The two-row, straight orientation aids in accommodating complex PCB layouts efficiently.

Made of liquid crystal polymer housing material ensuring high durability. Phosphor bronze contacts plated with gold or tin for reliable conductivity. Designed for board-to-board connector systems with surface mount type.

Operates safely within a temperature range of -55°C to 125°C. Features male contact gender and solder termination type for easy assembly. Polarization notch and optional caps available for secure cable locking. Offers two-row, straight orientation to optimize PCB layout.

This Samtec PCB header is ideal for electronic components, industrial machinery, and communication equipment requiring dependable interconnect solutions. Explore the extensive range of PCB Headers and connectors on EnvMart for your design and manufacturing needs.
