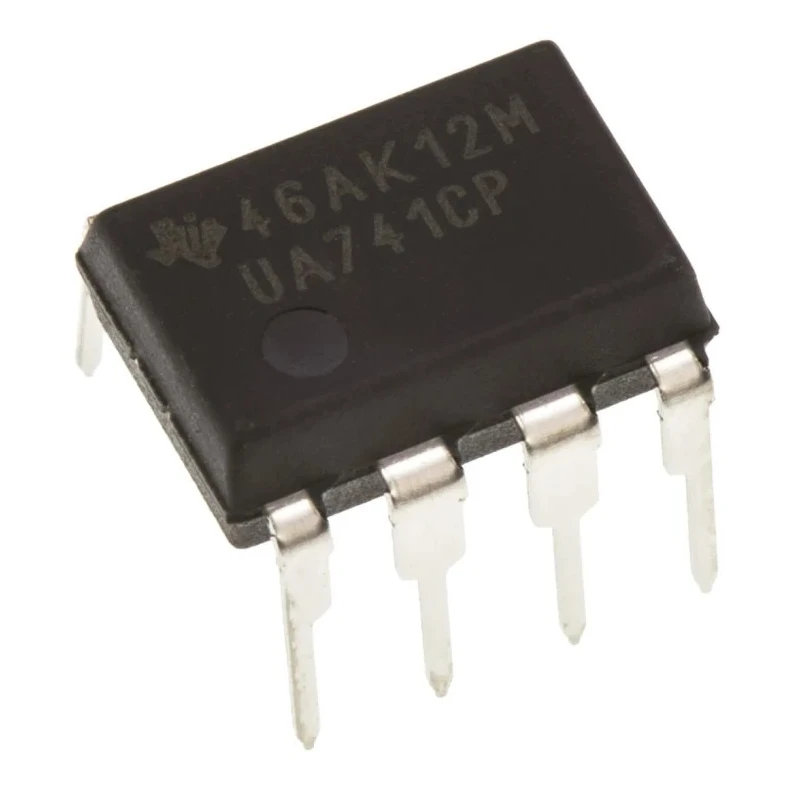

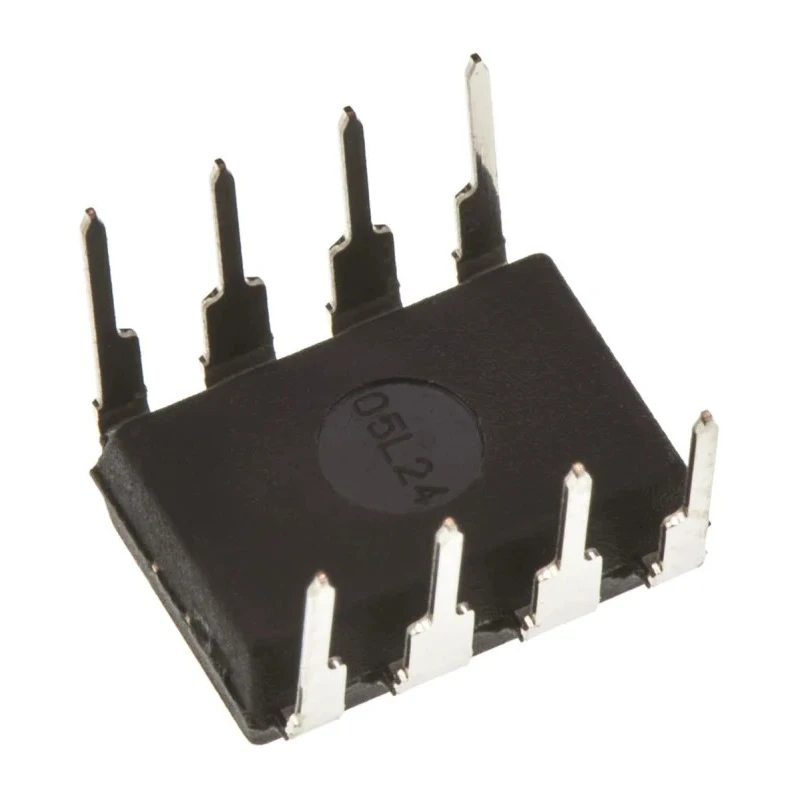

Texas Instruments Operational Amplifier 1 MHz Gain Bandwidth, 8-Pin PDIP, 5-15V UA741CP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | UA741CP |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | UA741 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 500 nA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 200 nA |
Key Features
- This operational amplifier operates at a supply voltage range from 5V to 15V.
- It has a pin count of 8 and a single channel design suitable for general purpose amplification.
- The device offers a slew rate of 0.5 V/μs ensuring moderate speed performance.
- The input bias current is 500 nA and input offset voltage is 5 mV for accurate signal processing.
- Operating temperature range is 0°C to 70°C suitable for industrial and lab environments.
- Compact dimensions of 9.81mm length, 6.35mm width, and 4.57mm height make it easy to integrate.
- It complies with no specific industrial automotive standards and is RoHS compliant.
- The package type is PDIP designed for through-hole PCB mounting applications.
Product Description
Texas Instruments UA741CP is a versatile and widely used operational amplifier IC with a gain bandwidth product of 1 MHz. It comes in an 8-pin PDIP package designed for through-hole mounting and operates with supply voltages ranging from 5V to 15V, making it suitable for a variety of analog circuit designs in industrial, laboratory, and educational electronics.
This amplifier features a low input bias current of 500 nA and a typical input offset voltage of 5 mV, which helps achieve precise signal amplification. The slew rate of 0.5 V/μs allows for reasonable response times in signal processing applications. Operating temperature ranges from 0°C to 70°C, compatible with standard operating environments.
The physical dimensions of 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height allow for compact PCB layouts. This general-purpose amplifier is ideal for signal conditioning, filtering, and analog computing tasks in electronic equipment manufacturing, educational projects, and industrial instrumentation.
The UA741CP does not conform to automotive standards but complies with standard RoHS regulations for hazardous substances. It is a reliable candidate for general analog design engineering in semiconductor applications worldwide.
This operational amplifier operates at a supply voltage range from 5V to 15V. Shows typical input offset voltage of 5 mV for stable precision. Provides a gain bandwidth product of 1 MHz for moderate frequency applications.
Compact 8-pin PDIP package for through-hole mounting and easy PCB integration. Rated for operating temperatures between 0°C and 70°C for industrial usage. Offers a slew rate of 0.5 V/μs ensuring responsive signal amplification.
Designed with low input bias current of 500 nA enhancing accuracy. General purpose operational amplifier ideal for laboratory and industrial electronics. Explore the wide range of Operational Amplifiers and related semiconductor devices at EnvMart to find ideal components for your electronic assembly and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The UA741CP operational amplifier has a gain bandwidth product of 1 MHz, suitable for moderate frequency applications.
This operational amplifier operates at a supply voltage range from 5V to 15V.
The UA741CP has compact dimensions of 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height.
The typical input offset voltage of the UA741CP is 5 mV, which contributes to stable precision in signal processing.
This operational amplifier features a slew rate of 0.5 V/μs, allowing for reasonable response times in signal processing applications.
The UA741CP operates within a temperature range of 0°C to 70°C, making it suitable for industrial and lab environments.
The UA741CP is packaged in an 8-pin PDIP format designed for through-hole mounting applications.
This operational amplifier has a single channel design, making it suitable for general purpose amplification tasks.
The input bias current of the UA741CP is 500 nA, which enhances the accuracy of signal amplification.
Yes, the UA741CP complies with RoHS regulations for hazardous substances.
The UA741CP has an input offset current of 200 nA, which is relevant for precision applications.
The UA741CP is ideal for signal conditioning, filtering, and analog computing tasks in electronic equipment manufacturing and educational projects.
