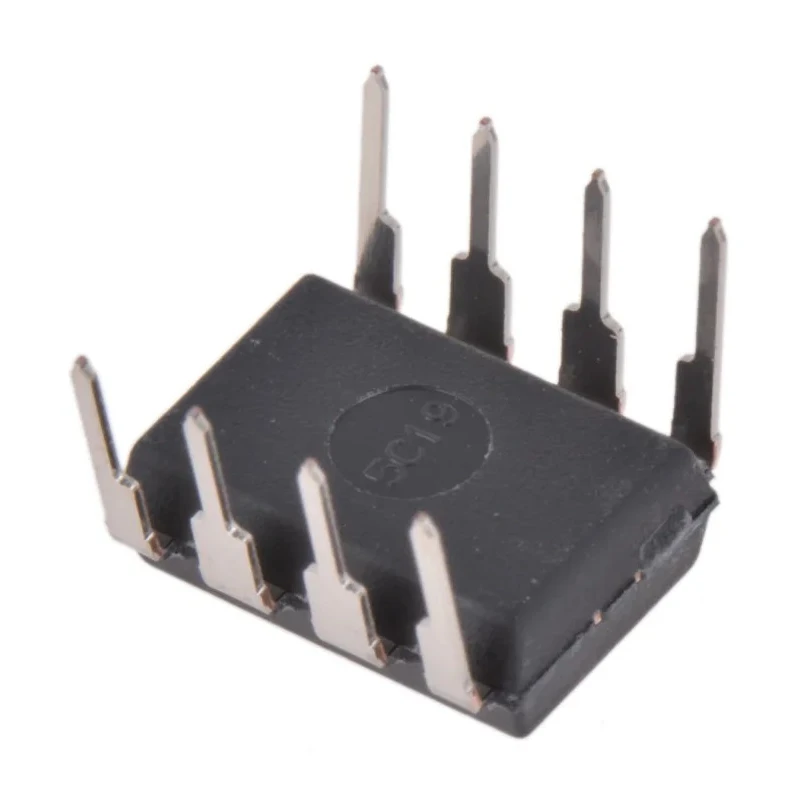

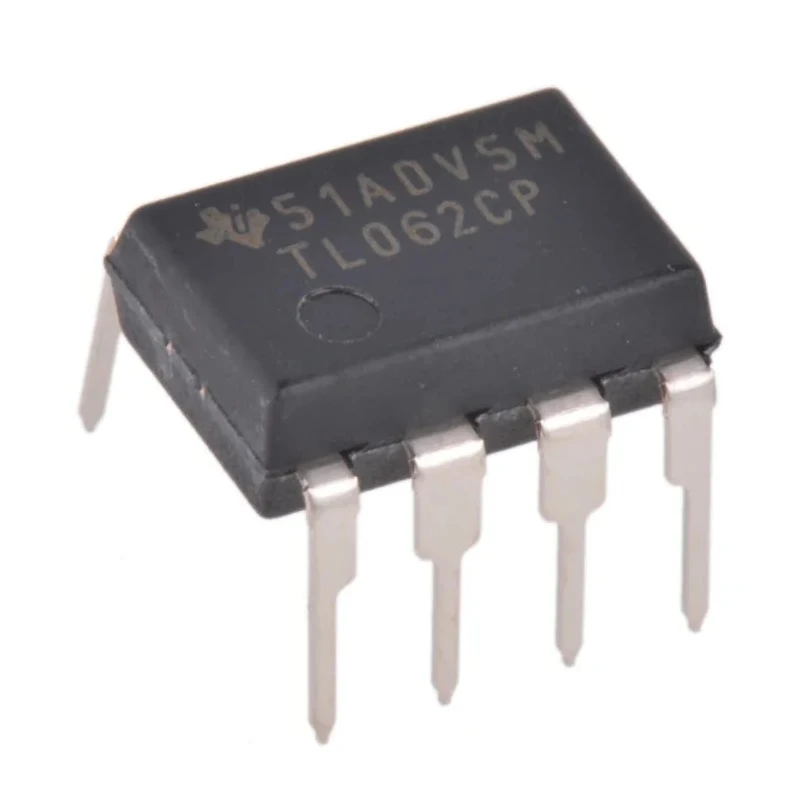

Texas Instruments Operational Amplifier 1 MHz Gain Bandwidth, 8-Pin 15V PDIP TL062CP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | TL062CP |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | TL062 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 10 nA |
| Vos - Input Offset Voltage | 20 mV |
| Slew Rate | 3.5V/μs |
| Input Offset Current | 5 nA |
Key Features
- This op amp features low power consumption with JFET inputs.
- It operates from 5V to 15V supply voltage ranges.
- Input offset voltage is low at 20 mV for precise signal amplification.
- It has a high slew rate of 3.5 V/µs suitable for high-speed applications.
- The device operates over a temperature range of 0°C to 70°C.
- Pin count is 8 with dual-channel configuration.
- The package type is standard PDIP for easy through-hole mounting.
- Suitable for industrial and electronic circuit applications requiring reliable amplification.
Product Description
The Texas Instruments TL062CP is a dual-channel operational amplifier designed with low power JFET input technology, achieving a gain bandwidth product of 1 MHz. Housed in an 8-pin PDIP package, this device operates efficiently across supply voltages from 5V to 15V, making it ideal for a wide variety of analog signal processing applications.
The operational amplifier features an input offset voltage of 20 mV and an input bias current as low as 10 nA, ensuring high accuracy in signal amplification. With a slew rate of 3.5 V/µs, it supports rapid voltage changes, beneficial in audio and instrumentation circuits. The operating temperature spans from 0°C to 70°C, suitable for most commercial and industrial environments.
Its compact dimensions (9.81 mm length, 6.35 mm width, 4.57 mm height) and through-hole mounting via PDIP package offer straightforward integration into PCB designs. Applications include industrial automation controls, signal conditioning, audio amplifiers, and instrumentation electronics requiring stable, low-noise amplification.
Low power consumption with JFET input stages. Wide supply voltage range from 5 V to 15 V. Dual channel 8-pin PDIP package. Slew rate of 3.5 V/µs for high-speed response. Operating temperature range 0°C to 70°C. Low input offset voltage and bias currents for precision.
Easy through-hole mounting for prototyping and production. Ideal for industrial, laboratory, and commercial electronics. Explore more Operational Amplifiers and electronic components at EnvMart to support your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1 MHz.
It operates within a supply voltage range of 5V to 15V.
The input offset voltage is 20 mV, providing precise signal amplification.
The maximum operating temperature is 70°C.
The slew rate of this model is 3.5 V/µs, suitable for high-speed applications.
This operational amplifier features a dual-channel configuration.
The dimensions are 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height.
It comes in an 8-pin PDIP package, designed for through-hole mounting.
The input bias current is as low as 10 nA, ensuring high accuracy in signal processing.
The minimum operating temperature is 0°C.
This model is designed for through-hole mounting, making it easy to integrate into PCB designs.
It is suitable for industrial automation controls, signal conditioning, audio amplifiers, and instrumentation electronics.
