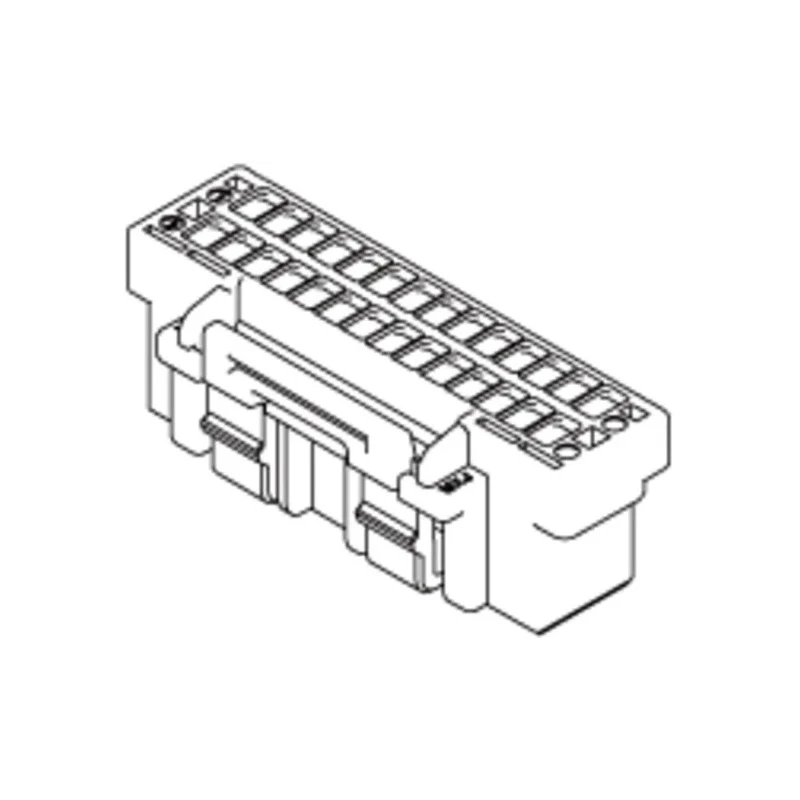

Molex CLIK-Mate Male Crimp Connector Housing 1.5 mm Pitch 12 Way 2 Row Straight 503149-1200
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 13.3mm |
| Width | 8.6mm |
| Mount Type | PCB |
| Housing Material | Polybutylene Terephthalate |
| Series | CLIK-Mate |
| Number of Rows | 2 |
| Pitch | 1.5mm |
| Number of Contacts | 12 |
| Connector Gender | Male |
Key Features
- The connector features a 1.5 mm pitch for precise and secure mating.
- Designed with a dual row, 12-way male contact configuration for versatile circuit applications.
- Manufactured from durable Polybutylene Terephthalate housing material ensuring high reliability.
- Supports crimp terminals for 24-28 AWG and 26-30 AWG wires, allowing flexible wire gauge compatibility.
- Compact dimensions with 8.6 mm width and 13.3 mm length optimize PCB space usage.
- Designed for straight orientation and PCB mount type for straightforward installation.
- Operating temperature range of -40°C to 105°C ensures performance in varied environments.
- Product is made in Japan, assuring high manufacturing standards.
Product Description
Molex 503149-1200 CLIK-Mate Male Crimp Connector Housing is an industrial-grade connector housing designed for PCB mounting applications. It features a 1.5 mm pitch and 12 contacts arranged in two rows to provide a reliable and compact connection solution in electronic assemblies.
The housing is made from Polybutylene Terephthalate (PBT) material, offering excellent durability and electrical insulation properties. Its straight orientation and male connector gender make it suitable for wire-to-board interfacing, specifically designed for use with the 502579 and 503429 crimp terminals for wire sizes ranging from 24 AWG to 30 AWG.
This connector housing supports current ratings suitable for various electronic components, making it ideal for manufacturing, industrial instrumentation, and electronic device assembly processes. The compact form factor with dimensions of 8.6 mm width and 13.3 mm length helps optimize PCB real estate while maintaining robust mechanical stability.
The product operates efficiently over a temperature range from -40°C to 105°C, enabling use in demanding industrial and commercial environments. Originating from Japan, this housing maintains stringent quality controls and complies with UL ratings, ensuring safety and performance.
The 1.5 mm pitch provides accurate terminal spacing. Dual-row 12 contact design supports multi-pin connections. High reliability due to robust PBT housing construction. Designed for PCB mounting with straight orientation for ease of use.
Compatible with crimp terminals supporting 24-28 AWG and 26-30 AWG wires. Compact dimensions fit tight electronic assemblies. Operates within an industrial temperature range of -40°C to 105°C. UL rated component manufactured in Japan.
This Molex connector housing is well-suited for electronic components, power and data connectors, industrial machinery control systems, and automotive electronics. The design supports secure wire terminations and facilitates efficient assembly for complex electrical junctions.
EnvMart offers this high-quality connector housing to support demanding electronics manufacturing and repair needs. Explore our category for Connector Housings to find complementary accessories and compatible terminals.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 1.5 mm, allowing for precise and secure mating.
It features a dual-row design with 12 contacts, providing versatile circuit applications.
The connector operates efficiently within a temperature range of -40°C to 105°C, suitable for varied environments.
This housing supports crimp terminals for 24-28 AWG and 26-30 AWG wire sizes, allowing flexible wire gauge compatibility.
The housing is manufactured from Polybutylene Terephthalate (PBT), ensuring high reliability and electrical insulation properties.
The dimensions are 8.6 mm in width and 13.3 mm in length, optimizing PCB space usage.
This model is designed for PCB mounting, making installation straightforward.
It has a straight orientation, which facilitates easy installation on PCBs.
The product is made in Japan, assuring high manufacturing standards.
This connector housing is part of the CLIK-Mate series, known for its reliable performance in electronic assemblies.
The connector gender is male, suitable for wire-to-board interfacing applications.
It is designed for use with the 502579 and 503429 crimp terminals, ensuring secure wire terminations.
