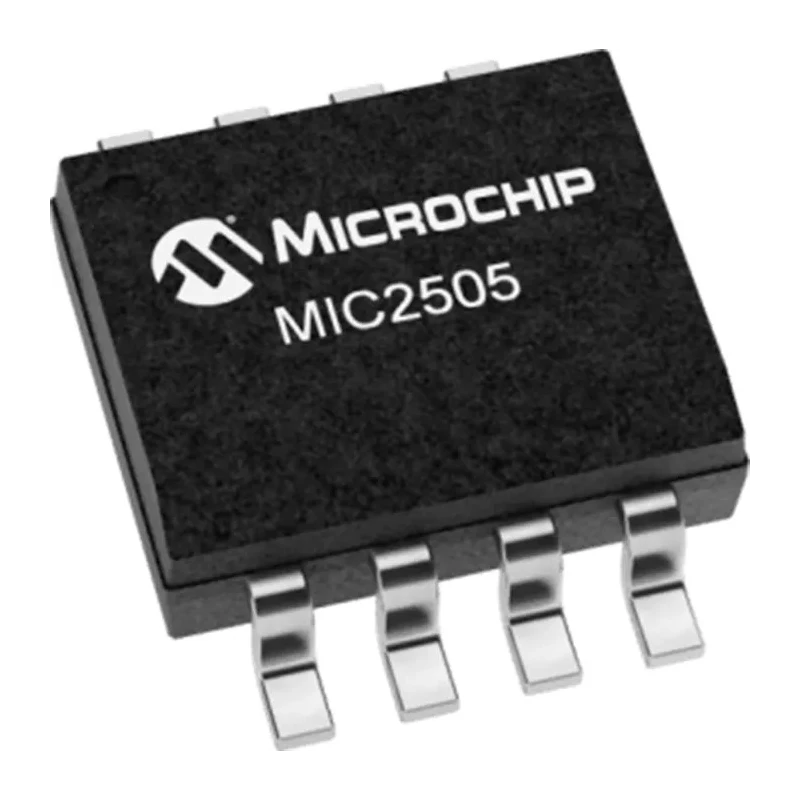

Microchip High Side USB Power Switch IC 8-Pin SOIC 3V to 7.5V 4A Operating Current MIC2505-2YM

Free Delivery in India | Lowest Global Shipping Charges

Microchip High Side USB Power Switch IC 8-Pin SOIC 3V to 7.5V 4A Operating Current MIC2505-2YM

Name: Microchip High Side USB Power Switch IC 8-Pin SOIC 3V to 7.5V 4A Operating Current MIC2505-2YM
Brand: Microchip
SKU: 153292
Price: 2.26 USD
Availability: InStock



Category Power Switch IC Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1.48mm
Length	4.93mm
Model	MIC2505-2YM
Width	3.94mm
Mount Type	Surface
Number of inputs	1
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Operating Current	4A
Number of outputs	5
Pin Count	8
Maximum Supply Voltage	7.5V
Minimum Supply Voltage	3V
Switch On Resistance RdsOn	75mΩ

Key Features

Low MOSFET on resistance of 75mΩ for efficient power switching.
Single input with 5 outputs controlling USB power distribution.
Surface mount device with 8-pin SOIC package for easy PCB integration.
Operating temperature range from -40°C to 85°C ensuring reliable performance.
Includes thermal shutdown and undervoltage lockout for device protection.
Logic-level control/enable input for simplified system control.
Designed for USB power applications and low voltage power management.
Compact size with dimensions 4.93mm length, 3.94mm width, and 1.48mm height.

Product Description

Microchip MIC2505-2YM is a high-side power switch IC designed for USB power management applications. Packaged in an 8-pin SOIC surface mount body, this device operates from 3V to 7.5V supply voltage and supports an operating current up to 4A. It features low MOSFET on resistance of 75mΩ, enabling efficient power switching with minimal energy loss.

The MIC2505-2YM includes TTL compatible control and enable inputs alongside integrated charge pump and protected N-channel MOSFETs, simplifying power system design by eliminating the need for separate drivers and MOSFETs. Thermal shutdown and 2.5V undervoltage lockout protect the device under harsh operating conditions, ensuring durability and safety.

Its operating temperature range from -40°C up to 85°C makes it suitable for industrial and commercial environments. The package's compact dimensions of approximately 4.93mm x 3.94mm x 1.48mm facilitate dense PCB layouts.

Typical applications include USB hubs, portable equipment, battery-powered devices, and general low-voltage power switching where reliable, protected high-side switch functionality is required.

Low on resistance and efficient power handling. Protection features including thermal shutdown and undervoltage lockout. TTL logic-level control simplifies integration with microcontrollers and logic circuits. Compact 8-pin SOIC surface mount package.

Wide supply voltage range from 3V to 7.5V. Robust operating temperature range suitable for industrial usage. Designed for reliable USB power switching and related power management applications. Explore EnvMart's Electronics & Electricals category for more Power Management ICs and Power Switch ICs optimized for your technical needs.
