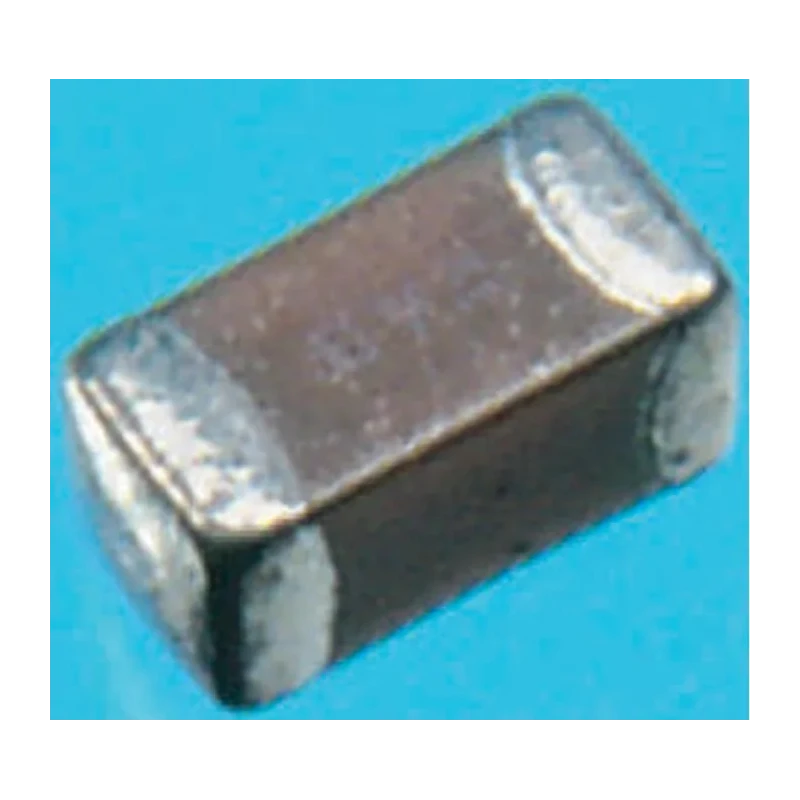

KEMET 680pF 50V DC Multilayer Ceramic Capacitor Surface Mount C0603C681J5GACTU
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 50V dc |
| Brand | KEMET |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | C0603C681J5GACTU |
| Packaging | Tape & Reel |
| Width | 0.8mm |
| Mount Type | Surface |
| Construction | Stacked |
| Series | C |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 680pF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 0603 |
| Dielectric | C0G |
| Suppression Class | Class II |
Key Features
- Capacitance of 680pF with ±5% tolerance ensures precise electrical performance.
- Operates at a voltage rating of 50V DC suitable for diverse electronic circuits.
- Utilizes a C0G dielectric for temperature stability up to 125°C.
- Compact 0603 (1.6mm x 0.8mm x 0.8mm) package suitable for surface mounting.
- Stacked construction type with solder termination improves reliability.
- Packaged on tape & reel for automated assembly processes.
- Compliance with standards J-STD-020, IPC-7351, EIA 624, EIA 556, and EIA 481.
- Minimum operating temperature of -55°C supports a wide thermal range.
Product Description
KEMET C0603C681J5GACTU is a 680pF multilayer ceramic capacitor designed for surface mount technology applications. It features a robust C0G dielectric material, providing excellent stability and minimal capacitance variation over a wide temperature range from -55°C to 125°C. This capacitor operates reliably with a voltage rating of 50V DC and a tolerance of ±5%, making it suitable for precision electronics.
The 0603 package (1.6mm length x 0.8mm width x 0.8mm height) allows compact PCB design and compatibility with automated tape & reel assembly methods, enhancing manufacturing efficiency. The stacked construction with solder termination ensures long-term reliability and performance in various industrial, automotive, and consumer electronics applications.
This component complies with industry standards including J-STD-020, IPC-7351, EIA 624, EIA 556, and EIA 481, reflecting its quality and conformity to electronic manufacturing norms. It features Class II suppression characteristics beneficial for electromagnetic interference control, and it is suited for circuits requiring high stability and minimal capacitance drift.
Typical use cases include decoupling, filtering, and bypass applications in electronic devices, communication equipment, and automotive electronics where temperature and voltage stability are critical. The capacitor’s broad operating temperature range and robust construction make it applicable in harsh environmental conditions commonly found in industrial and commercial electronics.
Capacitance of 680pF with ±5% tolerance ensures precise electrical performance. Operates at a voltage rating of 50V DC suitable for diverse electronic circuits. Utilizes a C0G dielectric for temperature stability up to 125°C.
Compact 0603 package suitable for surface mounting. Stacked construction type with solder termination improves reliability. Packaged on tape & reel for automated assembly processes. Compliance with J-STD-020, IPC-7351, EIA 624, EIA 556, and EIA 481 standards.
Minimum operating temperature of -55°C supports a wide thermal range. Class II suppression for effective EMI reduction in circuits. Manufactured in Mexico, ensuring quality production.
Discover more about the KEMET capacitor range and related MLCC products by browsing EnvMart categories for advanced electronic components suitable for industrial, automotive, and commercial applications.
Explore more products in our MLCCs - Multilayer Ceramic Capacitors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 680pF with a tolerance of ±5%.
It operates at a voltage rating of 50V DC, suitable for various electronic circuits.
The capacitor has a minimum operating temperature of -55°C and a maximum operating temperature of 125°C.
It utilizes a C0G dielectric, which provides excellent temperature stability.
The dimensions of the 0603 package are 1.6mm in length, 0.8mm in width, and 0.8mm in height.
It is packaged on tape & reel, which facilitates automated assembly processes.
This model features a solder termination type, which enhances reliability.
It complies with several standards including J-STD-020, IPC-7351, EIA 624, EIA 556, and EIA 481.
The capacitor features a stacked construction type, which contributes to its reliability.
Typical applications include decoupling, filtering, and bypass in electronic devices, communication equipment, and automotive electronics.
It is manufactured in Mexico, ensuring quality production.
This model has a Class II suppression characteristic, which is beneficial for electromagnetic interference control.
