STMicroelectronics Discovery MCU Development Kit with STM8AF5288T 8-bit MCU, USB Programmable, Automotive STM8A-DISCOVERY

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Discovery MCU Development Kit with STM8AF5288T 8-bit MCU, USB Programmable, Automotive STM8A-DISCOVERY

Name: STMicroelectronics Discovery MCU Development Kit with STM8AF5288T 8-bit MCU, USB Programmable, Automotive STM8A-DISCOVERY
Brand: STMicroelectronics
SKU: 146278
Price: 50.41 USD
Availability: InStock



Category Microcontroller Development Kit Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Model	STM8A-DISCOVERY
Technology	MCU
Interfaces	USB LEDs
Standards/Approvals	RoHS
Device Core	STM8
Kit Classification	Development Kit
Kit Name	Discovery
Processor Part Number	STM8AF5288T
Processor Type	Microcontroller
Processor Family Name	STM
The STM8A-DISCOVERY kit contains two boards	one for the STM8AF device family and the other for STM8AL devices. All devices within these families (STM8Ax) are stress-tested and AEC-Q100 qualified for automotive applications

Key Features

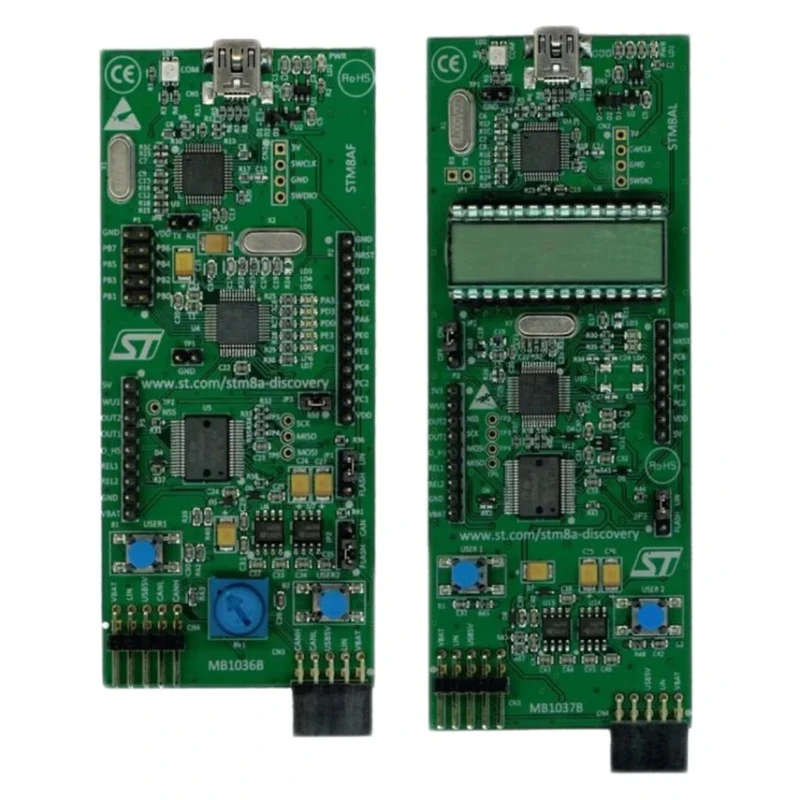

The kit includes two boards supporting STM8AF5288T and STM8AL3L68T MCUs.
Equipped with on-board ST-LINK/V2 for programming and debugging.
Features USB Mini-B connectivity and multiple user LEDs and pushbuttons.
Supports CAN and LIN communication interfaces for automotive applications.
The STM8AF board runs at 24MHz with 64KB Flash and 6KB RAM memory.
The STM8AL board provides LCD display and current measurement circuit capabilities.
Boards are powered via USB or external +12V supply with on-board power management IC.

Product Description

STMicroelectronics STM8A-DISCOVERY MCU Development Kit STM8A-DISCOVERY is a dedicated development platform designed for automotive-grade STM8 8-bit microcontrollers featuring dual boards for STM8AF and STM8AL device families. This kit facilitates versatile prototyping with two boards: one with a 24MHz STM8AF5288T MCU and the other with a 16MHz STM8AL3L68T MCU. Both MCU families are AEC-Q100 qualified and stress-tested for automotive reliability.

The STM8AF board includes a 64KB Flash memory, 6KB RAM, 2KB EEPROM, 5 user LEDs, and a potentiometer connected to the MCU ADC, enabling extensive functionality for embedded development. It supports CAN and LIN automotive communication protocols. The STM8AL board offers 32KB Flash, 4KB RAM, 1KB EEPROM, 2 user LEDs, and a 4-digit 14-segment plus 4-bar LCD for display applications, alongside IDD current measurement circuitry.

Key hardware features include an on-board ST-LINK/V2 for programming and debugging, USB Mini-B socket for PC connection, and a PMIC (L99PM62GXP) with LIN and CAN bus controllers integrated. Both boards are powered via USB or an external +12V DC supply enhanced by an ST662A +12V boost converter. Extension headers provide additional connectivity for MCU peripherals and PMIC functions.

This kit is ideal for industrial and automotive embedded systems development, offering comprehensive support for automotive communication protocols and display interfaces. It is highly suitable for use in workshops, laboratories, automotive electronics prototyping, embedded controls learning, and product development processes.

The kit comprises two development boards tailored for STM8AF and STM8AL microcontroller families. Both MCUs are automotive qualified and support CAN and LIN communication. On-board programming and debugging capabilities via ST-LINK/V2.

Power management includes a +12V boost converter and integrated PMIC with bus interfaces. Extensions for LCD display and current measurement enhance evaluation scenarios. Explore more Microcontroller Development Kits and automotive-grade embedded solutions at EnvMart for efficient prototyping and innovation.
