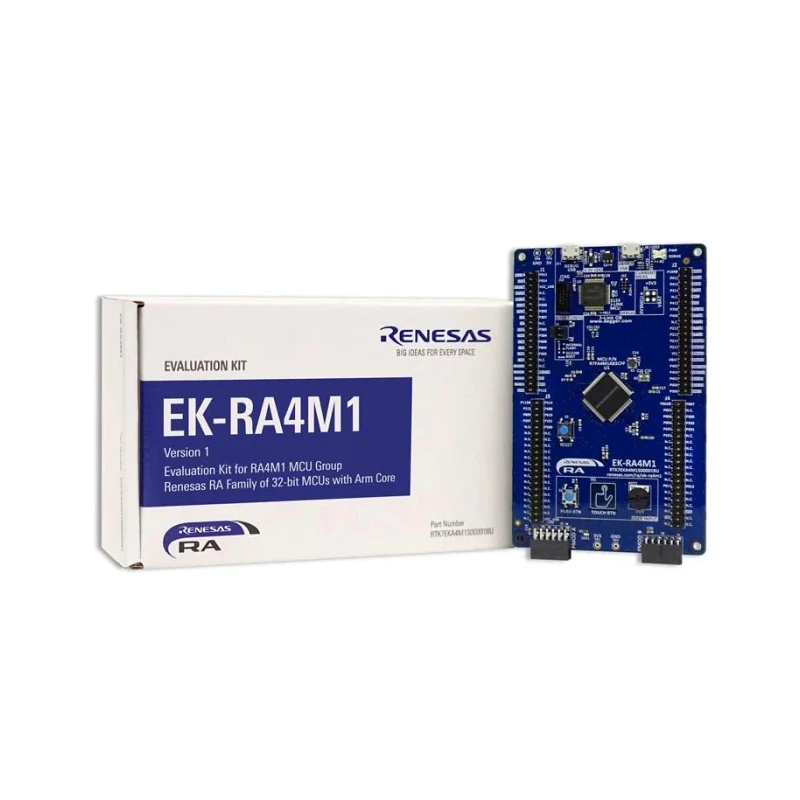

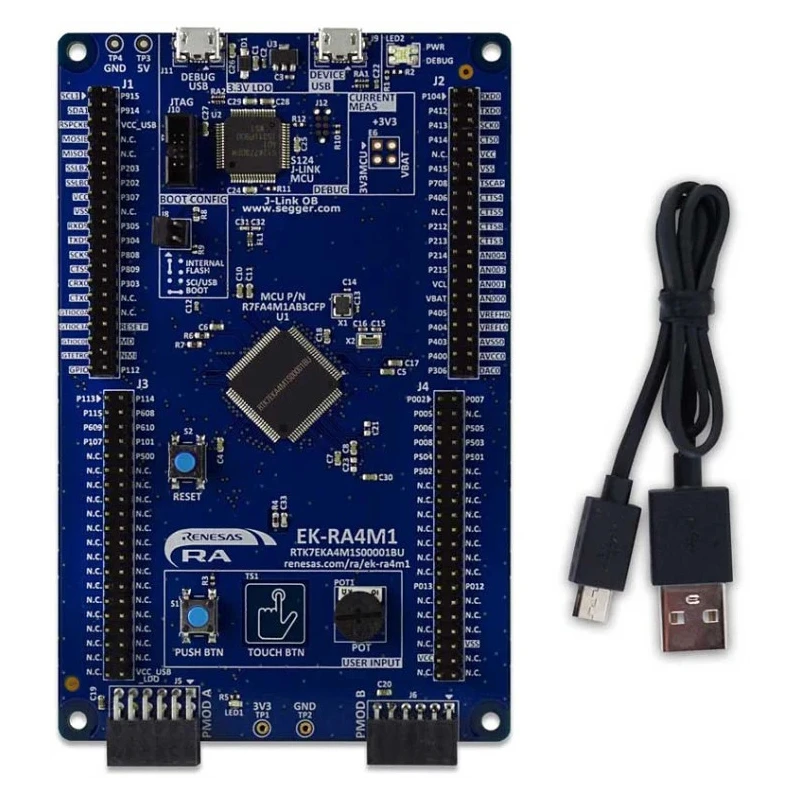

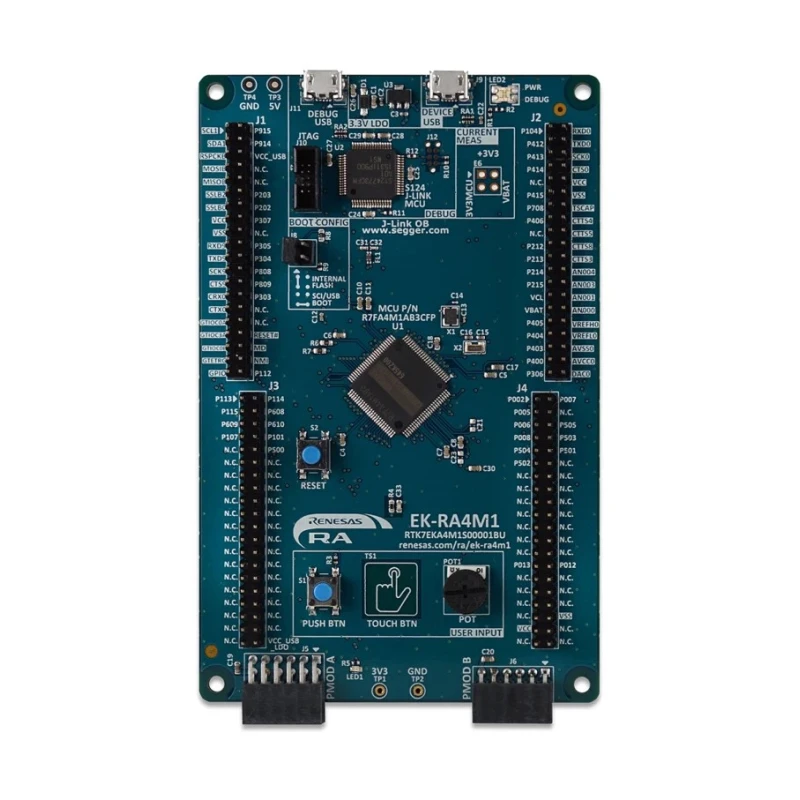

Renesas Electronics Development Kit 32 Bit MCU Microcontroller Board RTK7EKA4M1S00001BU

Renesas Electronics RTK7EKA4M1S00001BU is a versatile Development Kit for 32 Bit MCU microcontrollers built around the ARM Cortex-M4F core operating at 48MHz. This kit is designed for users requiring advanced human-machine interface (HMI) functionality including Segment LCD display support and capacitive touch sensing capabilities.

The MCU features 256kB Flash Memory and 32kB SRAM, complemented by an 8kB DataFlash for data retention similar to EEPROM technology. It supports a broad range of serial communication protocols such as USB 2.0 Full Speed, CAN 2.0B, and simple SPI, I2C, and UART interfaces known collectively as SCI.

Constructed with a power-efficient process, the RA4M1 MCU is ideal for use cases involving fire and burglar detection security products, industrial door openers, HVAC controls such as heating, air conditioning, and boiler management, as well as various home appliance and general-purpose embedded applications.

The development kit leverages the Flexible Software Package (FSP) built on FreeRTOS, allowing easy ecosystem integration and expandable support for other real-time operating systems (RTOS) and middleware components.

Equipped with a high-performance 48MHz ARM Cortex-M4F core. Supports Segment LCD Controller for sophisticated display management. Includes Capacitive Touch Sensing Unit enhancing user interface capability. Integrates USB 2.0 Full Speed interface for connectivity.

Provides CAN 2.0B communication suitable for automotive and industrial networks. Offers multiple serial communication interfaces (SCI, SPI, I2C). Designed with RoHS compliance emphasizing environmental safety. Applications include industrial, security, HVAC, home appliances, and general embedded systems.

This Renesas Electronics development kit significantly simplifies prototyping and deployment of 32 Bit MCU-based embedded systems requiring rich user interfaces and robust connectivity.
