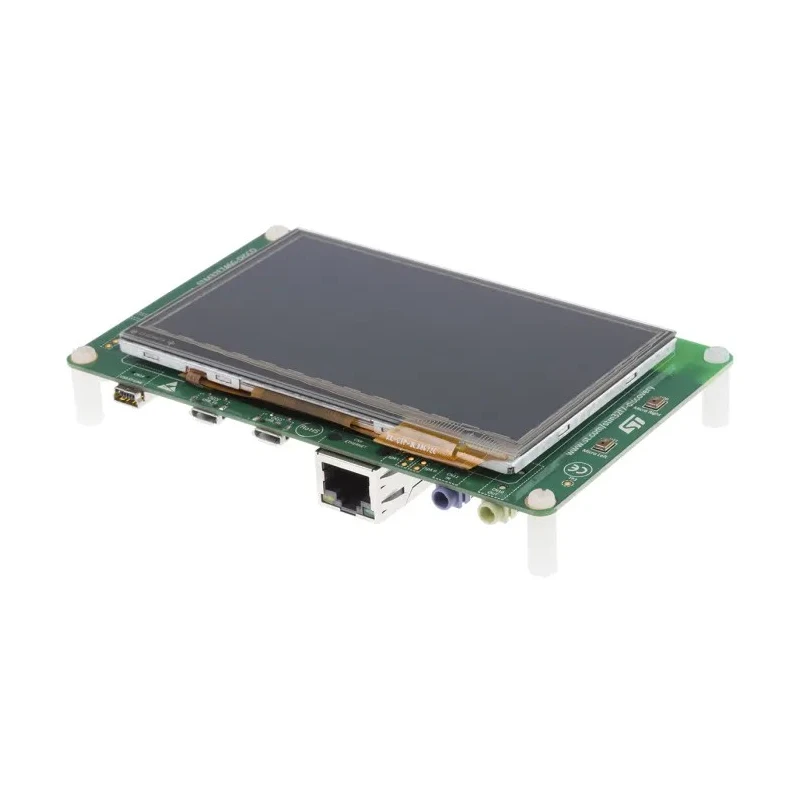

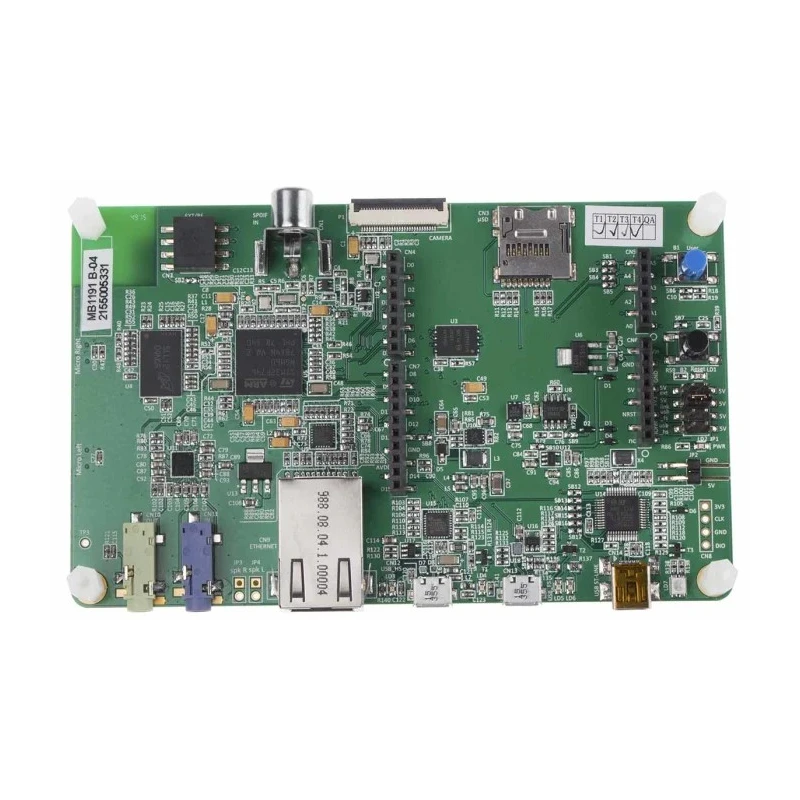

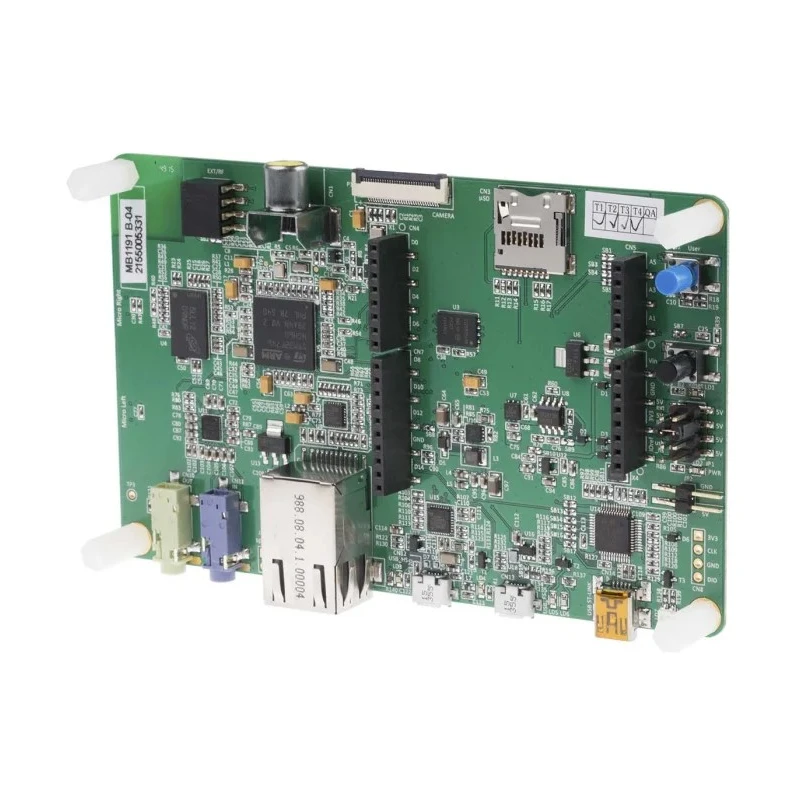

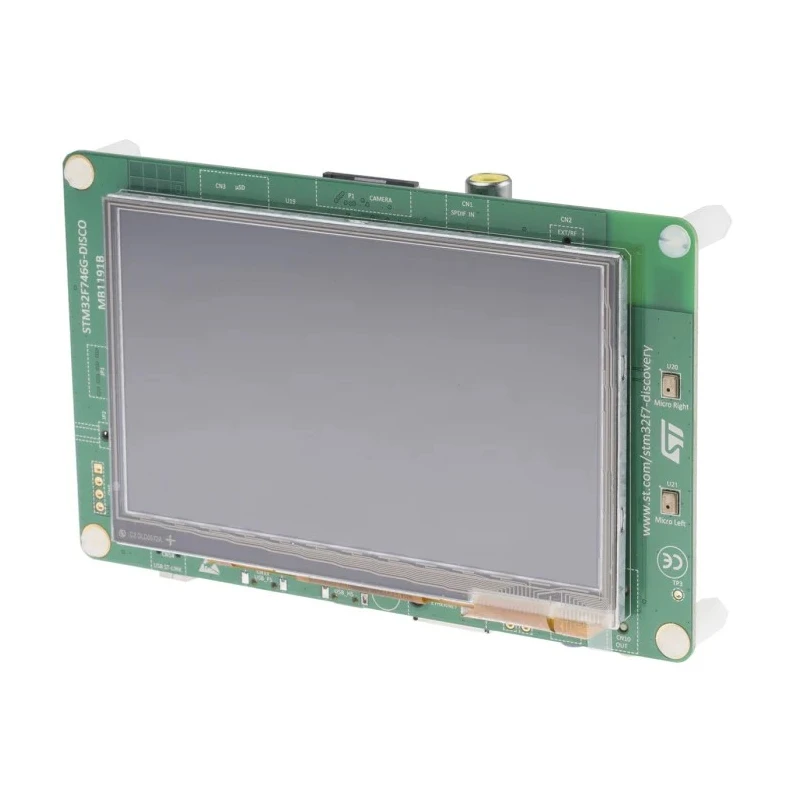

STMicroelectronics Discovery MCU Development Kit with 216MHz Cortex-M7 Microcontroller, 1MB Flash, 340KB STM32F746G-DISCO
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Memory | 128Mb Flash, 128Mb SDRAM |
| Model | STM32F746G-DISCO |
| Technology | MCU |
| Ethernet | 10/100 Ethernet via RJ45 connector |
| Microphone | 2 x MP34DT01TR MEMS microphones on DFSDM inputs |
| Buttons | Reset and User |
| Screen | 4.3in 480 x 272pixel LCD display panel with touch screen |
| Interfaces | USB OTG: HS & FS via Micro-AB connector |
| Standards/Approvals | RoHS |
| Device Core | ARM Cortex M7 |
| LCD Controller | LCD-TFT controller up to XGA resolution with dedicated Chrom-ART Accelerator™ |
| Kit Classification | Development Kit |
| Kit Name | Discovery |
| Processor Part Number | STM32F746NGH6 |
| Processor Type | Microcontroller |
| Processor Family Name | STM |
| MCU | 216MHz STM32F746NGH6 Cortex-M7 core microcontroller |
| USB OTG | HS & FS via Micro-AB connector |
| MCU Memory | 1MB Flash, 340KB SRAM |
| Camera Connector | DCMI (suitable module STM32F4DIS-CAM RS 880-2069) |
| Audio Codec | On-board WM8994 stereo audio Codec |
| Audio Line | 3.5mm jack stereo audio Line In and Out |
| Speaker | 2 x stereo speaker outputs |
| SD | MicroSD card slot |
| Debugger | ST LINK/V2-1 via USB Mini-B connector |
| SensiEDGE SensiBLE Module SIMBA-PROBrand | SensiEDGE |
| STMicroelectronics Discovery MCU Development Kit STM32F469I-DISCOBrand | STMicroelectronics |
Key Features
- Features 1MB Flash and 340KB SRAM memory for complex applications.
- Includes a 4.3-inch 480 x 272 pixel LCD touch screen with dedicated Chrom-ART Accelerator™ for graphics.
- Supports Arduino Uno V3 connectivity for versatile expansion options.
- On-board WM8994 stereo audio codec with dual stereo speakers and microphones.
- Equipped with MicroSD slot, Ethernet RJ45, USB OTG, and ST LINK/V2-1 debugger interfaces.
- Power supply outputs provide 3.3V or 5V for external circuits.
- Ideal for applications involving audio, sensors, graphics, video, and high-speed connectivity.
Product Description
STMicroelectronics STM32F746G-DISCO Discovery MCU Development Kit features a 216MHz STM32F746NGH6 Cortex-M7 core microcontroller, offering 1MB Flash and 340KB SRAM memory, housed in a 216-pin BGA package. The kit includes a 4.3-inch 480 x 272 pixel LCD display panel with touch screen and LCD-TFT controller with Chrom-ART Accelerator™ for enhanced graphics performance.
Designed for evaluation and development, it supports a wide range of applications including audio processing, sensor integration, graphics, video streaming, and high-speed data communications. The kit is expandable via Arduino Uno V3 format shield connectors, enabling the use of diverse add-on boards.
Connectivity features include USB OTG with high-speed and full-speed support, 10/100 Ethernet via RJ45, MicroSD card slot, and a debugger interface through ST LINK/V2-1 via USB Mini-B connector. The kit integrates an on-board WM8994 stereo audio codec, dual stereo speaker outputs, and dual MP34DT01TR MEMS microphones for advanced audio applications.
Additional peripherals include reset and user buttons, a camera connector compatible with STM32F4DIS-CAM modules, and 3.3V/5V power supply outputs for external devices. Technical features of the STM32F7 microcontrollers include ST’s ART Accelerator™, L1 cache, and multi-AHB bus matrixes for optimal performance and peripheral isolation.
This development kit is suitable for industrial, laboratory, educational, and commercial applications involving microcontroller-based designs requiring high processing power, advanced display, and versatile connectivity options.
Features 1MB Flash and 340KB SRAM memory for complex applications. Includes a 4.3-inch 480 x 272 pixel LCD touch screen with dedicated Chrom-ART Accelerator™ for graphics. Supports Arduino Uno V3 connectivity for versatile expansion options.
On-board WM8994 stereo audio codec with dual stereo speakers and microphones. Equipped with MicroSD slot, Ethernet RJ45, USB OTG, and ST LINK/V2-1 debugger interfaces. Power supply outputs provide 3.3V or 5V for external circuits.
Ideal for applications involving audio, sensors, graphics, video, and high-speed connectivity. Explore more development kits and MCU solutions suited for your project requirements on EnvMart.
