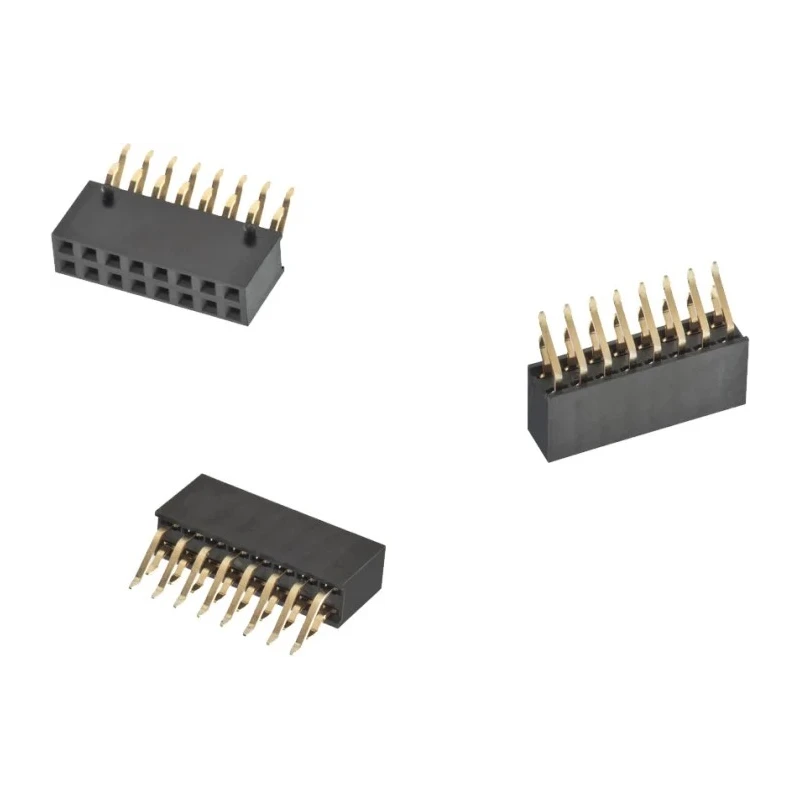

Wurth Elektronik WR-PHD Series Right Angle Through Hole PCB Socket, 16-Contact, 2 Row, 2.54 mm Pitch Surface 610126249221

Wurth Elektronik 610126249221 Right Angle Through Hole PCB Socket is a precision-engineered component designed for robust board-to-board connections. This PCB socket features 16 female contacts arranged in 2 rows with a 2.54 mm pitch, meeting industry-standard spacing requirements for electronic components.

The housing is manufactured from polybutylene terephthalate, offering excellent mechanical strength and resistance to high temperatures. The contacts are made from copper material with gold plating, ensuring low contact resistance and reliable electrical conductivity. This combination offers effective corrosion resistance to maintain performance over prolonged use.

Rated for a maximum working voltage of 250V and a current of 12A, this socket suits a range of electronic and electrical applications in industrial, laboratory, and commercial environments. The right angle orientation and through-hole mount type facilitate secure PCB installation and optimize board layout designs.

Operating temperature range from -40°C to 105°C enables the socket to function reliably in harsh environmental conditions, including outdoor and industrial settings. The stacking height of 8.5 mm allows for compact multilayer PCB assembly without compromising mechanical integrity.

This WR-PHD series socket supports up to 25 mating cycles, ensuring longevity and durability in applications requiring frequent connections and disconnections. It is RoHS compliant, aligning with environmental standards for electronic components.

Equipped with 16 female contacts in 2 rows at 2.54 mm pitch. Copper contacts plated with gold for durability and conductivity. Polybutylene terephthalate housing for thermal and mechanical stability. Right angle, through-hole mount for secure PCB assembly.

Electrical ratings: 250V, 12A, suitable for versatile use cases. Temperature tolerance from -40°C to 105°C for industrial applications. Stacking height is 8.5 mm to conserve PCB space. Supports 25 mating cycles for long operational life.

This PCB socket is ideal for use in electronics manufacturing, repair, and prototyping across industrial automation, telecommunications, and control systems. Its reliable construction supports demanding environments and complex PCB designs.
