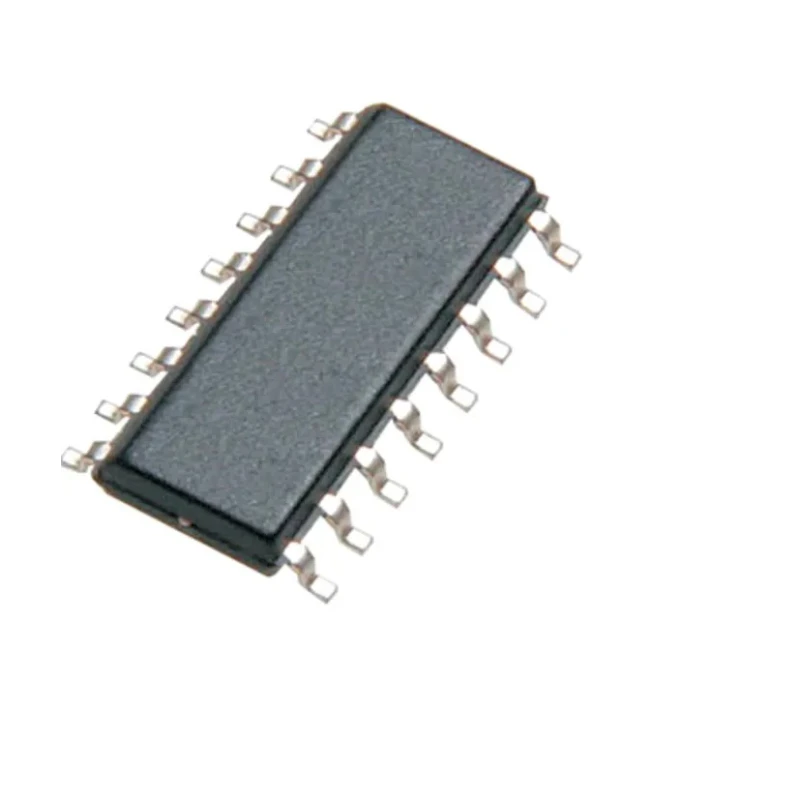

Broadcom DC Input 4-Channel Phototransistor Optocoupler Surface Mount 16-Pin SO Package ACPL-247-560E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | ACPL-247-560E |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Output type | Transistor |
| Series | ACPL |
| Maximum Operating Temperature | 110°C |
| Package Type | SO |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 50mA |
| Number Of Channels | 4 |
| Standards/Approvals | EN, IEC, UL |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 16 |
| Input Current Type | DC |
| Typical Rise Time | 2μs |
| Maximum Current Transfer Ratio | 600% |
| Typical Fall Time | 3μs |
| Minimum Current Transfer Ratio | 100% |
| Automotive Standard | AEC-Q100 |
Key Features
- Contains four LEDs optically coupled to four separate phototransistors.
- High input-output isolation voltage of 3750Vrms ensures safety and signal integrity.
- Typical rise time of 2 microseconds with non-saturated response for fast switching.
- Operates over a wide temperature range from -55°C to 110°C.
- Max input current rating of 50mA with typical fall time of 3 microseconds.
- Has a maximum forward voltage of 1.4V for each input LED.
- Manufactured to meet EN, IEC, UL standards and AEC-Q100 automotive qualification.
- Packaged in Tape & Reel for automated assembly processes.
Product Description
Broadcom ACPL-247-560E is a DC input quad-channel half-pitch phototransistor optocoupler packaged in a 16-pin SO surface mount package, ideal for industrial and automotive electronic isolation applications.
This optocoupler features four LEDs optically coupled to four phototransistors, providing channel separation and excellent signal isolation. It supports a maximum isolation voltage of 3750Vrms, ensuring high voltage surge protection and noise immunity in control and measurement systems.
The device offers a minimum current transfer ratio of 100% and can reach up to 600%, which aids in efficient signal conversion and amplification. Fast switching characteristics are supported by a typical rise time of 2 microseconds and a fall time of 3 microseconds with a non-saturated response, making it suitable for high-speed digital signals.
Operating temperature ranges from -55°C to 110°C, facilitating usage in a variety of harsh environmental conditions. The maximum forward voltage per LED input is 1.4V, with a maximum input current of 50mA. It uses DC input current type and transistor output configuration.
Compliant with multiple international safety and quality standards including EN, IEC, UL certifications, and AEC-Q100 automotive standard, this optocoupler is reliable for automotive and industrial electronics. The product is supplied in tape and reel packaging to support high volume manufacturing environments.
Contains four optically coupled LED-phototransistor channels for isolated signal transmission. Provides high input-output isolation voltage of 3750Vrms ensuring electrical safety. Fast switching with typical rise and fall times of 2μs and 3μs respectively.
Wide operating temperature range from -55°C to 110°C suitable for different industrial environments. Manufactured to automotive standard AEC-Q100 ensuring robust operation. Packaged in standard SO 16-pin surface mount for PCB design compatibility.
This component is ideal for use in industrial control systems, power management, telecommunications, automotive electronics, and other applications requiring reliable electrical isolation and fast signal processing. Explore more Optocouplers and electronic components from Broadcom in EnvMart’s Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current rating for this model is 50mA.
It has a typical rise time of 2 microseconds.
The maximum operating temperature for this optocoupler is 110°C.
This model features four channels, providing isolated signal transmission.
It supports a maximum isolation voltage of 3750Vrms, ensuring high voltage surge protection.
This optocoupler is packaged in Tape & Reel for automated assembly processes.
The typical fall time for this device is 3 microseconds.
It is manufactured to meet EN, IEC, UL standards and is AEC-Q100 automotive qualified.
The maximum forward voltage for each input LED is 1.4V.
The minimum current transfer ratio is 100%, with a maximum of 600%.
This model uses DC input current type.
It is a surface mount device, packaged in a 16-pin SO package.
