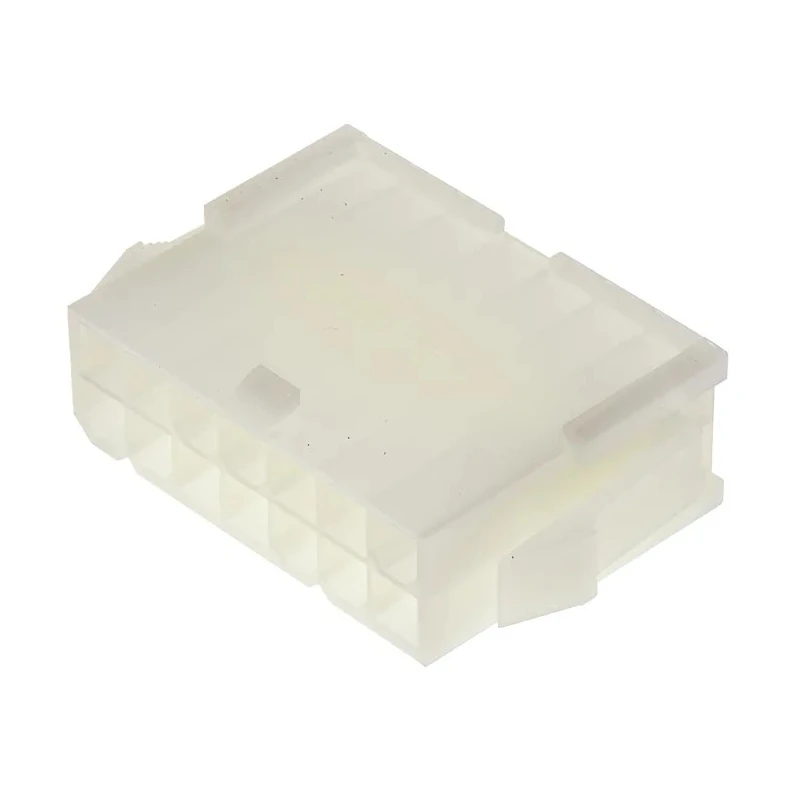

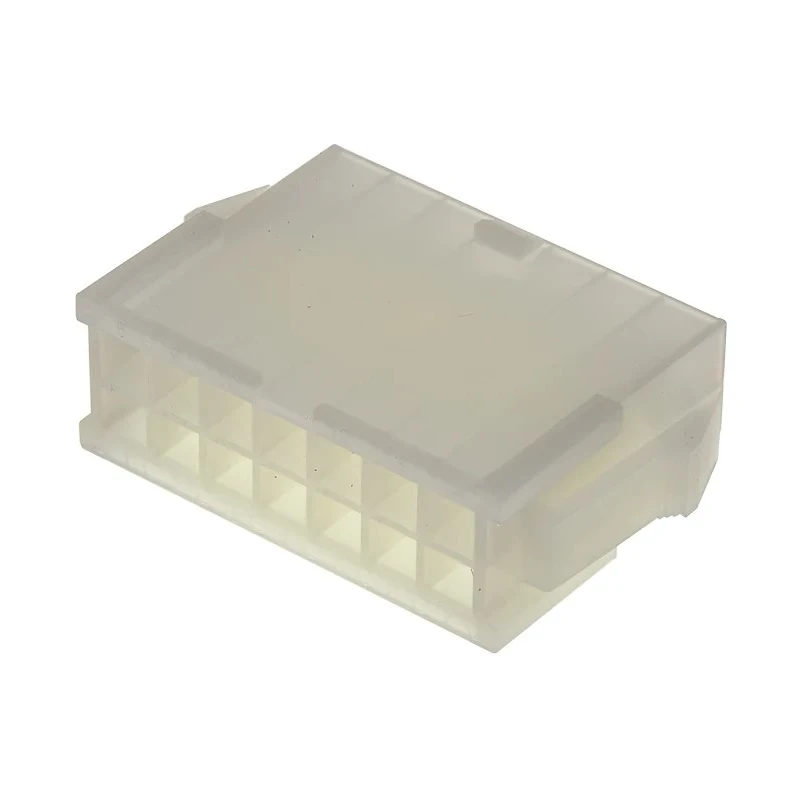

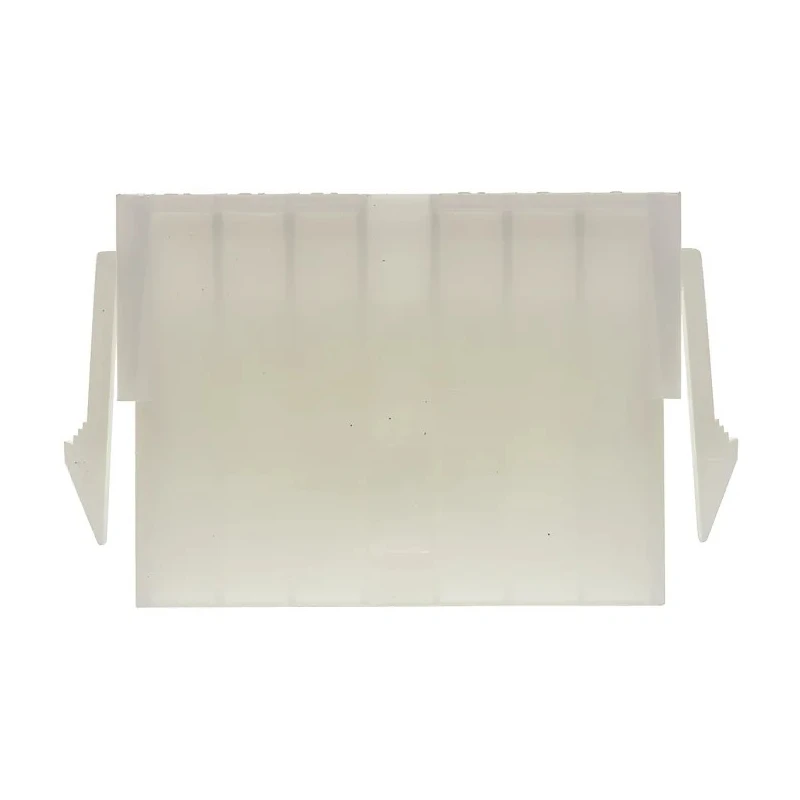

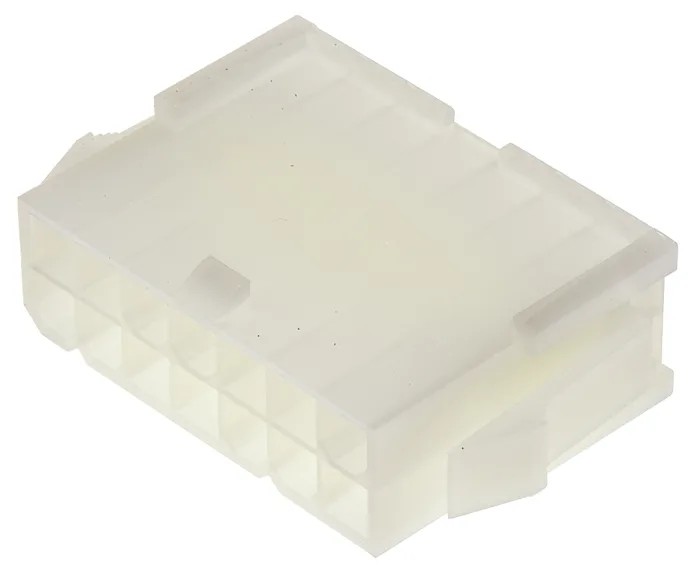

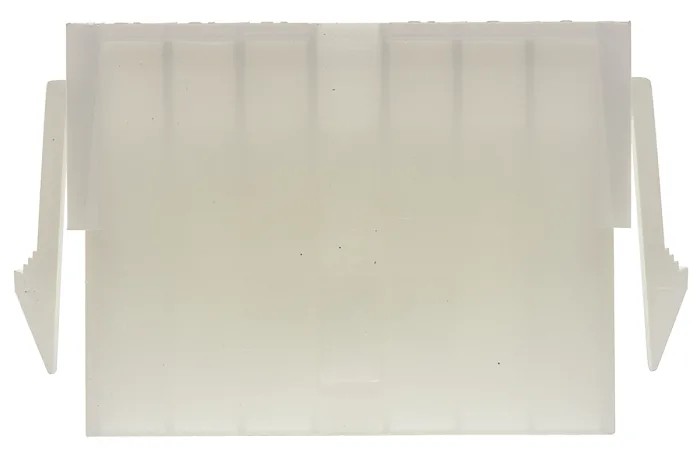

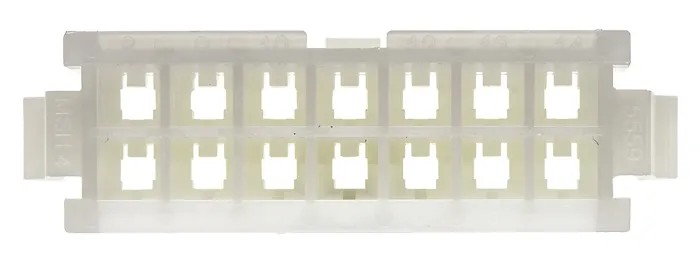

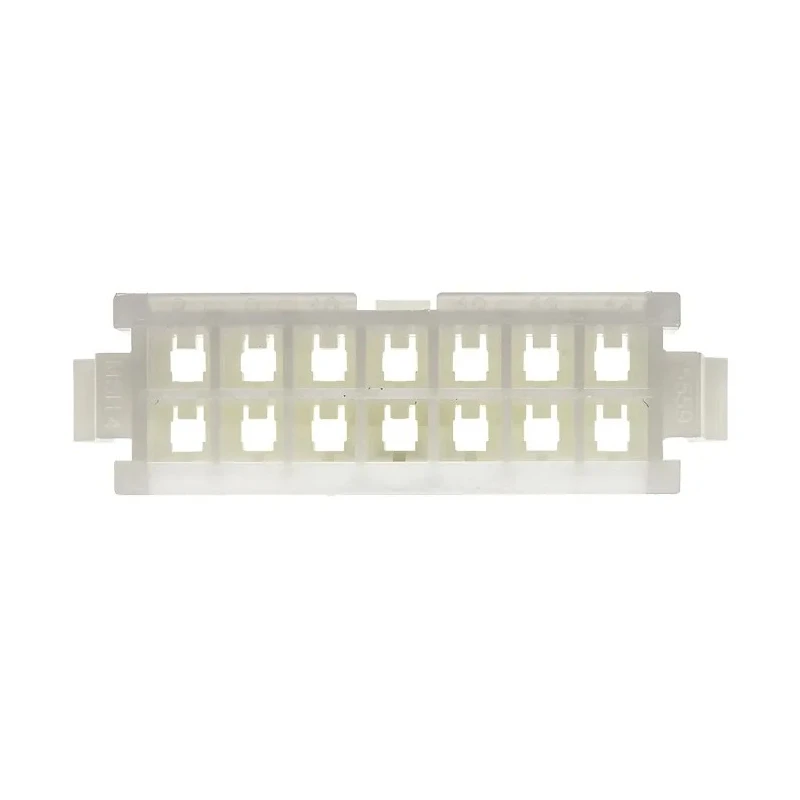

Molex Mini-Fit Jr Male Connector Housing 14 Way 2 Row 4.2 mm Pitch Nylon Panel Mount 39-01-2141
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 36mm |
| Width | 12mm |
| Mount Type | Panel |
| Housing Material | Nylon |
| Series | Mini-Fit Jr |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| For Use With | Mini-Fit Jr. Plug |
| Number of Contacts | 14 |
| Connector Gender | Male |
Key Features
- Supports up to 13A maximum current per circuit for efficient power transmission.
- Made from durable nylon housing material allowing operation between -40°C and +105°C.
- Features a positive locking mechanism to secure robust, vibration-resistant connections.
- Polarised design prevents incorrect mating ensuring reliable performance.
- Straight orientation with panel mount type suits diverse electronic assemblies.
- Compact dimensions of 36 mm length, 12 mm width, and 23.9 mm depth save PCB space.
- Compatible with Mini-Fit Jr and Mini-Fit Plus crimp terminals for flexible wiring options.
- Applications include consumer electronics, medical instruments, industrial control, and test equipment.
Product Description
Molex 39-01-2141 Mini-Fit Jr Male Connector Housing is a precision-engineered 14-way, 2-row electronic connector housing designed for robust wire-to-board and wire-to-wire connections. Manufactured from rugged nylon, it endures temperature extremes from -40°C up to +105°C, making it suitable for industrial, medical, and consumer electronic applications.
This panel mount male housing features a 4.2 mm pitch and straight orientation, with compact dimensions of 36 mm in length, 12 mm in width, and 23.9 mm in depth to optimize PCB real estate. It supports currents up to 13A per circuit, ensuring dependable power delivery in high-current connector systems.
Key design elements include a polarised structure that prevents connector mismatches and a positive locking mechanism securing the mating connection against shocks and vibrations. The housing is self-extinguishing for fire safety and fully isolates terminals to protect against debris and damage.
Compatible with Mini-Fit Jr and Mini-Fit Plus crimp terminals, this connector housing allows flexible wire harness assembly for both wire-to-wire and wire-to-board configurations. Its wide industrial applicability spans consumer electronics, medical instrumentation, test and measurement devices, and industrial control panels.
Supports up to 13A maximum current per circuit for efficient power transmission. Durable nylon housing material tolerates harsh temperature ranges from -40°C to +105°C. Positive locking mechanism secures connections against vibration and accidental disconnects.
Polarised design prevents connector mismatching, ensuring correct assembly. Straight panel mount configuration fits compact electronic assemblies. Compact size reduces PCB footprint with 36 x 12 x 23.9 mm dimensions. Compatible with standard Mini-Fit Jr and Mini-Fit Plus crimp terminals.
Ideal for consumer electronics, industrial controls, medical instruments, and testing equipment.
Explore more in the Electronics Components category for high-quality Connector Housings by Molex and other manufacturers. EnvMart offers a wide selection of power and PCB connectors for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports up to 13A maximum current per circuit, allowing for efficient power transmission.
The nylon housing material allows operation between -40°C and +105°C, making it suitable for various environments.
This connector housing has compact dimensions of 36 mm in length, 12 mm in width, and 23.9 mm in depth.
Yes, it is compatible with Mini-Fit Jr and Mini-Fit Plus crimp terminals for flexible wiring options.
It features a positive locking mechanism that secures connections against shocks and vibrations, along with a polarised design to prevent incorrect mating.
The connector housing has a straight orientation, which is suitable for panel mounting in electronic assemblies.
It is suitable for a wide range of applications including consumer electronics, medical instruments, industrial control, and test equipment.
This model features 14 contacts arranged in 2 rows, designed for robust wire-to-board and wire-to-wire connections.
The housing is made from durable nylon, which provides resilience in various environmental conditions.
The polarised design prevents incorrect mating, ensuring reliable performance and correct assembly during installation.
It is designed for panel mounting, making it suitable for integration into various electronic devices.
The country of origin for this connector housing is China.
