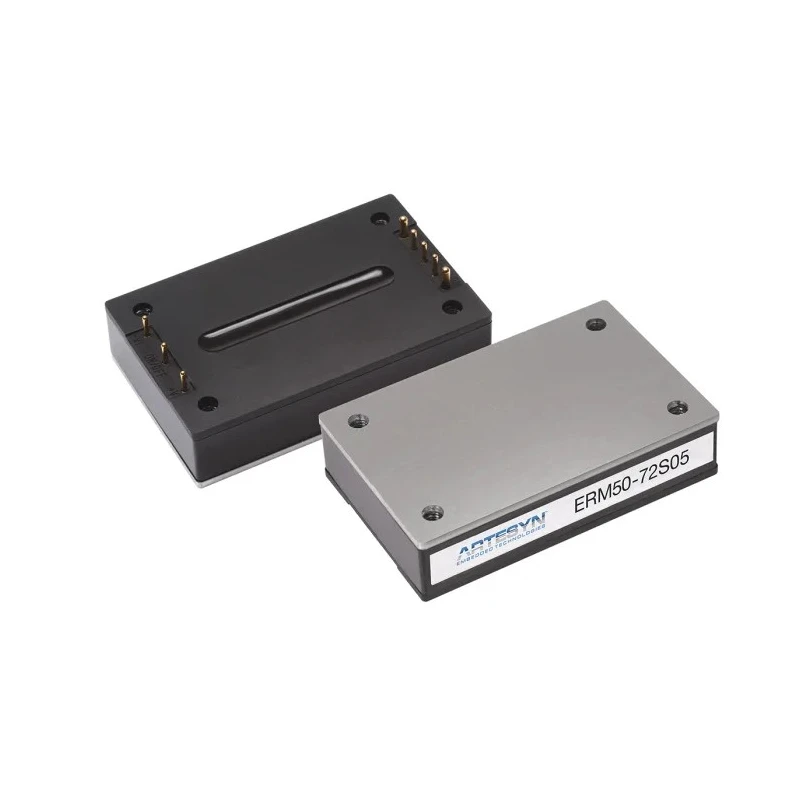

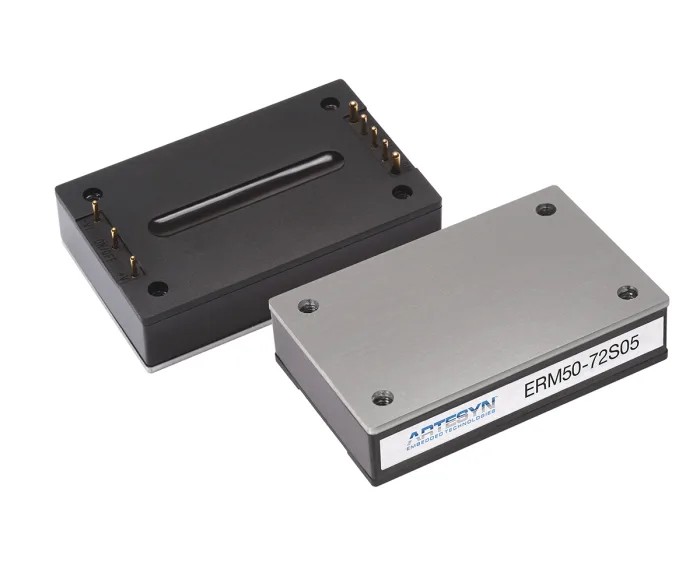

Artesyn / Advanced Energy High Performance 50W DC/DC Converter 15V DC Output 3.33A Input 43-101V DC Through Hole DIP ERM50

Artesyn / Advanced Energy ERM50 DC/DC Converter model ERM50 is a high performance 50 watt isolated power module designed primarily for demanding railway applications and industrial power conversion systems. This converter provides a 15V DC output at a maximum output current of 3.33A, with input voltage support from 43V up to 101V DC, enabling use in diverse voltage environments including rolling stock equipment.

The compact DIP package measures 57.9 mm in length, 36.8 mm in width, and 12.7 mm in depth, allowing easy integration in PCB layouts with through-hole mounting technology. The converter is fully encapsulated in a metal case equipped with an isolated baseplate, providing enhanced mechanical robustness, thermal conduction, and electromagnetic interference (EMI) reduction capabilities.

Efficiency reaches up to 92%, which minimizes heat generation and improves system reliability. The operating temperature range between -40 °C and +85 °C suits challenging environmental conditions often encountered in industrial and transportation sectors. Reinforced insulation with an isolation voltage of 1.5 kV DC ensures safe electrical separation between input and output circuits.

Additional features such as under-voltage shutdown protect the converter from brownout conditions, while remote on/off functionality allows easy system-level control. The ERM50 series modules have an impressive MTBF of 472,000 hours reflecting their reliability and suitability for continuous operation.

This product is particularly appropriate for industrial, railway, manufacturing, and transportation power management applications requiring step-down DC voltage conversion with isolation. It helps meet stringent power quality and safety requirements in complex electrical systems.

This DC/DC converter is a part of the ERM50 series engineered for high-reliability environments. Compact through-hole DIP form factor simplifies PCB design and assembly. Reinforced insulation and metal casing improve safety and electromagnetic performance.

Wide input voltage range supports various DC bus voltages used in railway and industrial equipment. High efficiency reduces cooling requirements and extends product life. Metal case with isolated baseplate ensures robust mechanical support and thermal management.

Designed for long operational lifespan with MTBF of 472,000 hours. Explore Artesyn / Advanced Energy and related DC/DC Converter products on EnvMart for further power conversion solutions tailored to industrial and railway applications.
