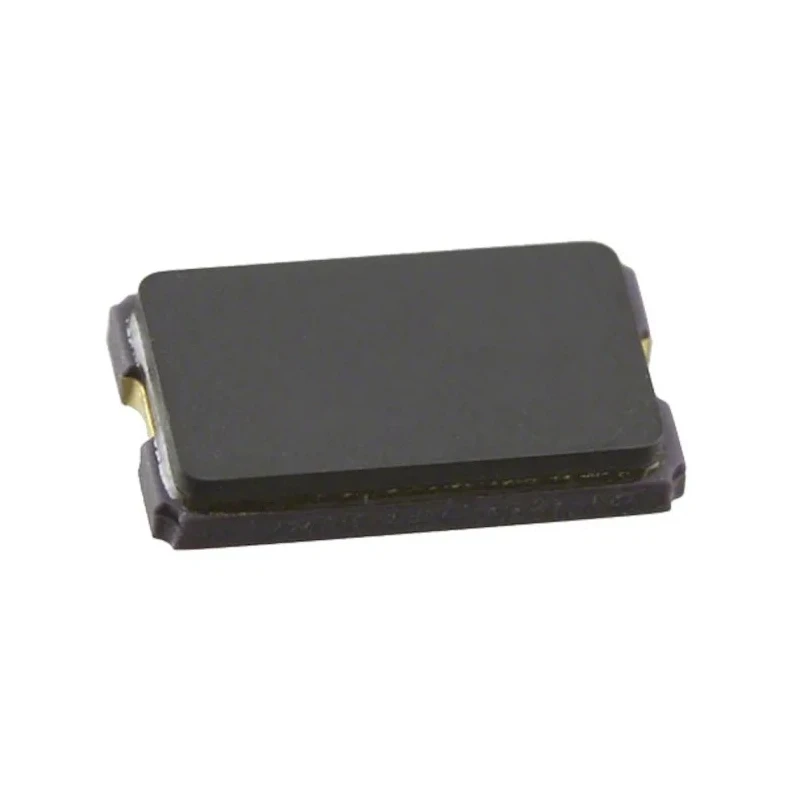

Abracon 20 MHz Crystal ±20 ppm Surface Mount Ceramic Package 5 mm x 3.2 mm x 1.3 mm ABM3-20.000MHZ-D2Y-T
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 1.3mm |
| Length | 5mm |
| Model | ABM3 |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | ABM3 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | REACH, RoHS |
| Standard Frequency | 20MHz |
| Load Capacitance | 18pF |
| Series Resistance | 40Ω |
Key Features
- Operates at a standard frequency of 20 MHz with a frequency stability of ±30 ppm.
- Load capacitance rated at 18 pF supporting stable oscillator circuits.
- Hermetically glass-sealed ceramic case provides durable and high-precision operation.
- Suitable for cellular telephones, pagers, PCMCIA, wireless applications, and communication equipment.
- Temperature range operates between -40°C to 85°C.
- Series resistance of 40 Ω ensures consistent electrical performance.
- Packaged in tape and reel format facilitating automated PCB assembly.
- Complies with REACH and RoHS environmental standards.
Product Description
The Abracon ABM3-20.000MHZ-D2Y-T is a miniature ceramic surface mount crystal oscillator designed for high precision electronic applications. Featuring a 20 MHz fundamental frequency with a tight ±20 ppm frequency tolerance, this component ensures dependable performance in demanding environments.
The crystal uses AT-cut fundamental or 3rd overtone mode and is hermetically glass sealed in a ceramic package measuring 5 mm in length, 3.2 mm in width, and 1.3 mm in height. This robust construction offers excellent reliability and resistance to environmental stresses. The device possesses an 18 pF load capacitance compatible with standard oscillator circuits.
Operating temperature ranges from -40°C to 85°C, making it suitable for industrial and commercial electronics, including cellular phones, pagers, PCMCIA cards, wireless communication, and test equipment. The series resistance of 40 Ω provides stable operation within the required electrical parameters.
The product is supplied in tape and reel packaging, optimized for automated PCB assembly processes, improving production efficiency. It meets the regulatory standards of REACH and RoHS, ensuring compliance with international environmental directives.
Operates at a frequency of 20 MHz with ±20 ppm tolerance. Hermetically sealed ceramic SMD package measuring 5 mm x 3.2 mm x 1.3 mm. Load capacitance of 18 pF supports oscillator circuit stability. Wide operating temperature range from -40°C to 85°C for versatility.
Series resistance of 40 Ω for consistent electrical characteristics. Tape and reel packaging compatible with automated assembly. Meets REACH and RoHS environmental and safety standards. Suitable for cellular, wireless, and communication electronic applications.
This Abracon crystal is ideal for industrial, communication, and electronic manufacturing applications requiring reliable frequency control. Explore more electronic components and oscillators in the Electronics Components category at EnvMart for your design and manufacturing needs.
Explore more products in our Crystals, Oscillators & Resonators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Abracon model operates at a standard frequency of 20 MHz.
It has a frequency tolerance of ±20 ppm, ensuring reliable performance.
The crystal measures 5 mm in length, 3.2 mm in width, and 1.3 mm in height.
The load capacitance is rated at 18 pF, which supports stable oscillator circuits.
It has a series resistance of 40 Ω, contributing to consistent electrical performance.
The operating temperature range is from -40°C to 85°C, making it suitable for various applications.
It is packaged in tape and reel format, facilitating automated PCB assembly.
It complies with REACH and RoHS environmental standards, ensuring compliance with international directives.
This model uses a surface mount type, suitable for various electronic applications.
It is suitable for cellular telephones, pagers, PCMCIA cards, wireless applications, and communication equipment.
The country of origin for this crystal is China.
This crystal belongs to the ABM3 series, known for high precision in electronic applications.
