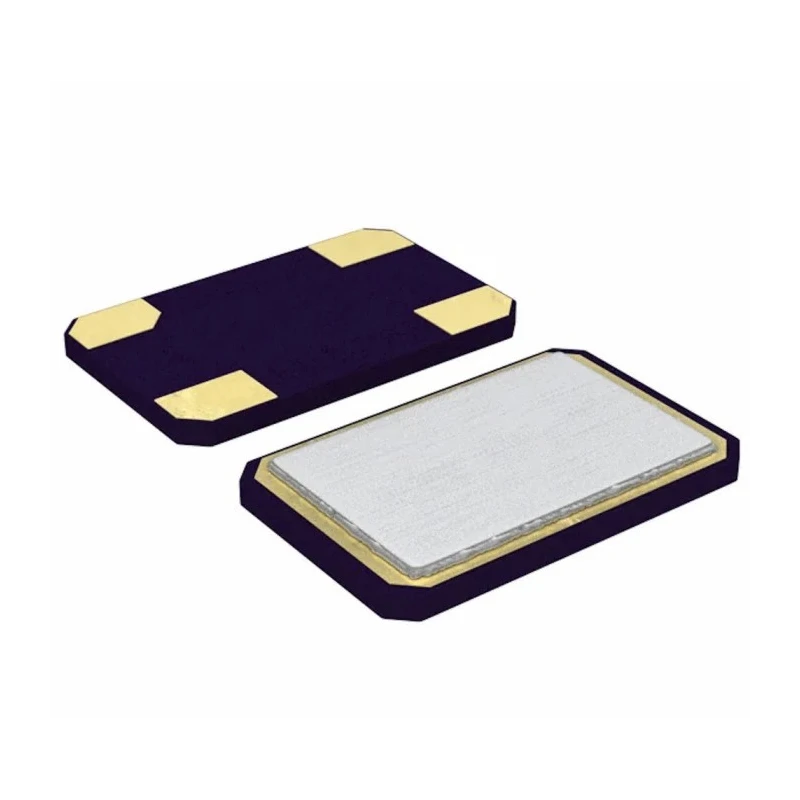

Abracon 12.8 MHz Crystal Surface Mount 15 pF Load Capacitance 70Ω Series Resistance ABM3B-155-12.800MHZ-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 12.8 MHz Crystal Surface Mount 15 pF Load Capacitance 70Ω Series Resistance ABM3B-155-12.800MHZ-T

Name: Abracon 12.8 MHz Crystal Surface Mount 15 pF Load Capacitance 70Ω Series Resistance ABM3B-155-12.800MHZ-T
Brand: Abracon
SKU: 150735
Price: 0.74 USD
Availability: InStock



Category Crystals, Oscillators & Resonators Brand Abracon Condition New

Specifications

Country of Origin	China
Brand	Abracon
Height	1.1mm
Length	5mm
Model	ABM3B
Packaging	Tape & Reel
Width	3.2mm
Mount Type	Surface
Series	ABM3B
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	REACH, RoHS
Standard Frequency	12.8MHz
Load Capacitance	15pF
Series Resistance	70Ω

Key Features

This crystal features a surface mount package type with dimensions of 5 mm length, 3.2 mm width, and 1.1 mm height.
It has a load capacitance of 15 pF and a series resistance of 70 Ω ensuring stable oscillation performance.
The frequency tolerance is tightly controlled to ±10 ppm with a frequency stability of ±20 ppm for reliable operation.
Designed for operating temperatures ranging from -40°C to 85°C, suitable for diverse environments.
Packaged in tape and reel, this product is optimized for automated assembly processes.
Uses a ceramic SMD package with a metal lid for enhanced precision and reliability.
Applications include cellular telephones, high-density electronics, pagers, PCMCIA, wireless applications, and communication test equipment.

Product Description

Abracon ABM3B-155-12.800MHZ-T is a high precision 12.8 MHz crystal designed with a surface mount package and a load capacitance of 15 pF, ideal for frequency control applications requiring ±10 ppm tolerance.

This crystal features a compact ceramic SMD package measuring 5 mm in length, 3.2 mm in width, and 1.1 mm in height, with a metal lid to ensure mechanical and environmental stability.

Its series resistance of 70 Ω supports stable oscillation, and it operates reliably between temperatures of -40°C and 85°C, making it suitable for use in harsh and temperature-sensitive environments.

Packaging in tape and reel format facilitates automated placement in manufacturing processes. The crystal is qualified under REACH and RoHS standards, ensuring compliance with environmental and safety regulations. This model is widely applied in cellular telephones, high-density electronic devices, pagers, PCMCIA cards, wireless systems, and communication and test equipment.

This crystal ensures high frequency accuracy and stability in demanding industrial and commercial electronics applications. Its compact size and surface mount design allow for space-constrained PCB layouts. Reliable performance at a wide temperature range ensures usability in various industrial environments.

Environmental compliance ensures safe and responsible product usage and disposal. Explore more precision crystal units and oscillators in the Electronics Components section at EnvMart for your industrial and commercial project needs.
