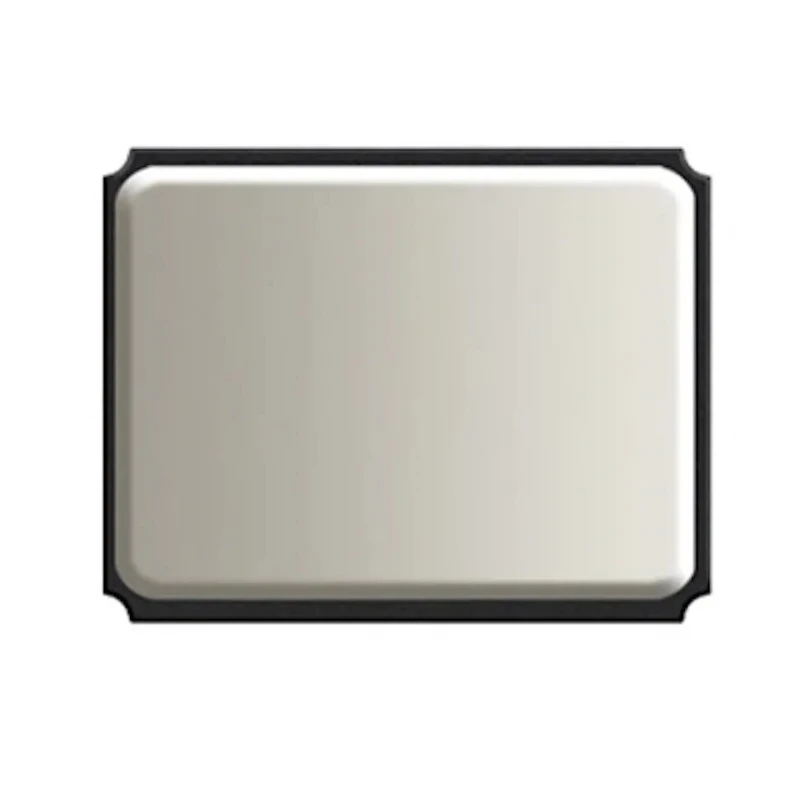

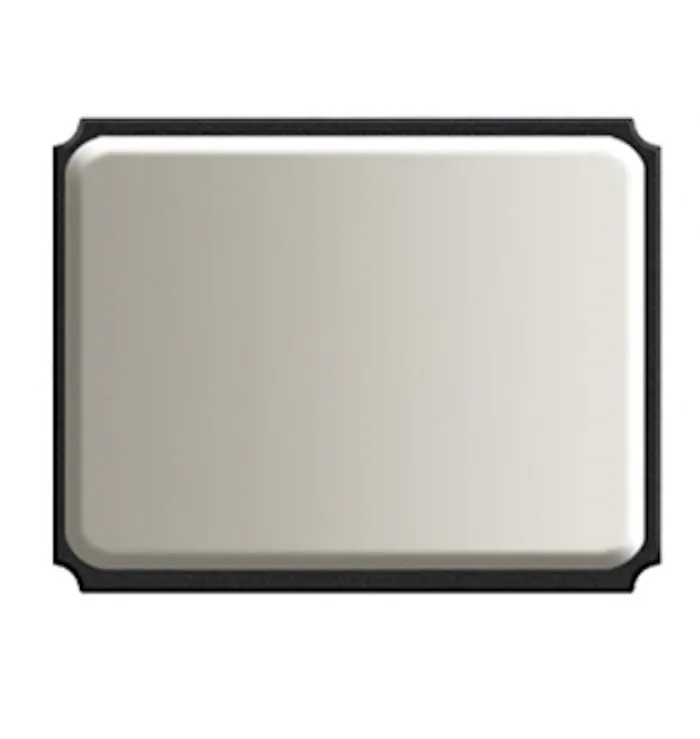

Abracon 25 MHz Crystal ±20 ppm Surface Mount 0.7 mm Height 2.5 mm Length 2 mm Width ABM10-25.000MHZ-E20-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 25 MHz Crystal ±20 ppm Surface Mount 0.7 mm Height 2.5 mm Length 2 mm Width ABM10-25.000MHZ-E20-T

Name: Abracon 25 MHz Crystal ±20 ppm Surface Mount 0.7 mm Height 2.5 mm Length 2 mm Width ABM10-25.000MHZ-E20-T
Brand: Abracon
SKU: 150711
Price: 1.46 USD
Availability: InStock



Category Crystals, Oscillators & Resonators Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.7mm
Length	2.5mm
Model	ABM10
Packaging	Tape & Reel
Width	2mm
Mount Type	Surface
Series	ABM10
Maximum Operating Temperature	70°C
Package Type	Surface Mount
Minimum Operating Temperature	-20°C
Standards/Approvals	REACH, RoHS
Standard Frequency	25MHz
Load Capacitance	10pF
Series Resistance	100Ω

Key Features

Operates with a standard frequency of 25 MHz.
Features surface mount package type with compact size of 2.5 mm length and 2 mm width.
Load capacitance is 10 pF, optimized for electronic circuits requiring stable timing.
Temperature range from -20°C to 70°C ensures reliable operation in various environments.
Series resistance is 100 Ω, maintaining signal integrity.
Complies with REACH and RoHS standards for environmental safety.
Packaging is tape and reel for efficient manufacturing processes.
Ideal for Bluetooth, wireless applications, microprocessors, communication devices, test equipment, and portable radios.

Product Description

Abracon ABM10-25.000MHZ-E20-T is a high-precision 25 MHz crystal designed for surface mount applications. Housed in an ultra-miniature ceramic package with 0.7 mm height, 2.5 mm length, and 2 mm width, it ensures reliability and compactness for modern electronic designs.

This component features a frequency tolerance of ±20 ppm and a load capacitance of 10 pF, offering stable frequency output for sensitive electronics. It operates reliably across a temperature range from -20°C to 70°C and has a series resistance of 100 Ω, making it suitable for a wide array of industrial and commercial electronics.

Designed to meet REACH and RoHS standards, the ABM10 series crystal is environmentally compliant and ideal for applications in Bluetooth devices, wireless communications, high-density electronic systems, microprocessors, and various test and measurement equipment.

The packaging in tape and reel format facilitates automated assembly processes in manufacturing. Its sealed ceramic package protects the crystal unit, ensuring long-term precision and performance in demanding environments.

Operates at standard frequency of 25 MHz with ±20 ppm tolerance. Compact surface mount body measuring 2.5 mm × 2 mm × 0.7 mm. Load capacitance optimized at 10 pF. Wide operating temperature range suitable for industrial use.

Complies with environmental standards REACH and RoHS. Low series resistance of 100 Ω improves signal stability. Packaging tape and reel supports efficient PCB assembly. Ideal for Bluetooth, wireless, microprocessors, and portable devices.

This crystal unit is an essential component for precision timing in electronic circuits within electronics manufacturing, telecommunications, laboratory devices, and consumer electronics sectors. Browse our extensive catalog of high-quality crystals and resonators for varied industrial needs on EnvMart.
