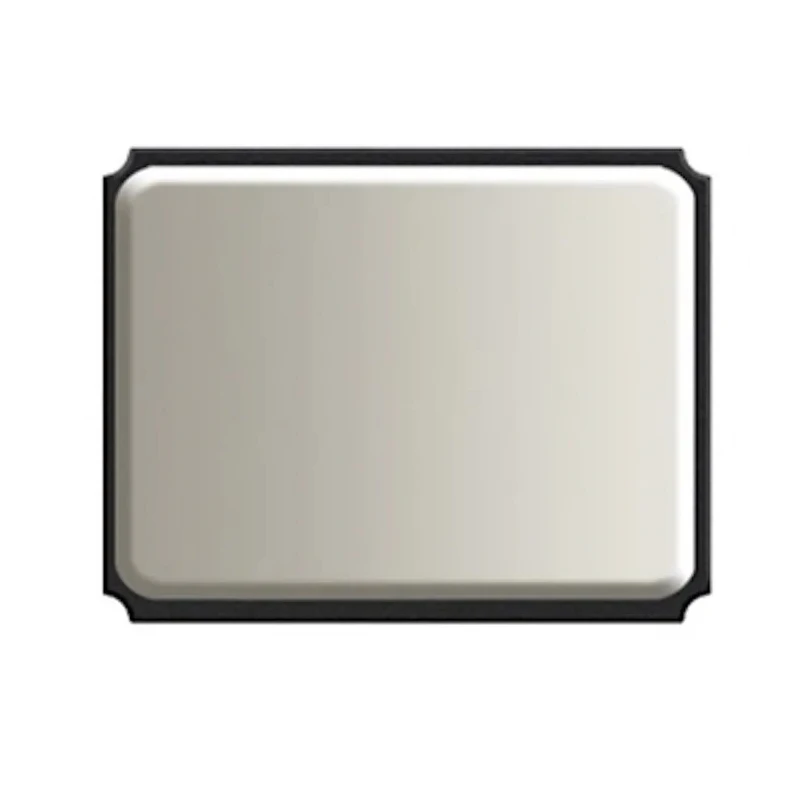

Abracon 24 MHz Crystal ±20 ppm Surface Mount 10pF Load Capacitance 2.5x2x0.7 mm ABM10

Abracon ABM10 24 MHz Crystal is a surface mount crystal oscillator with a ±20 ppm frequency tolerance, designed for high precision and reliability in demanding electronic applications. The device delivers a standard frequency of 24 MHz and is packaged in a sealed ceramic base ultra-miniature package measuring 2.5 mm length, 2 mm width, and 0.7 mm height.

This ABM10 series crystal features a load capacitance of 10pF and series resistance of 100 Ω, providing stable frequency output with excellent temperature stability from -40°C to 85°C operating temperature range. The compact surface mount design is ideal for high-density electronics such as Bluetooth modules, wireless communication devices, microprocessors, computers, test equipment, portable radios, and MP3 players.

Constructed to meet REACH and RoHS environmental standards, this crystal is not designed for automotive applications but excels in many industrial, laboratory, communication, and consumer electronics environments requiring high reliability and precision timing.

Standard frequency: 24 MHz with ±20 ppm tolerance. Surface mount package measuring 2.5 mm × 2 mm × 0.7 mm. Load capacitance: 10pF for frequency stability. Operating temperature range from -40°C to 85°C. Series resistance: 100 Ω to minimize power loss.

Tape and reel packaging suitable for automated assembly. Suitable applications include Bluetooth, wireless devices, microprocessors, and portable electronics. Compliance with REACH and RoHS standards. Explore the extensive range of Abracon timing and frequency control products on EnvMart for your electronics manufacturing and design needs.
