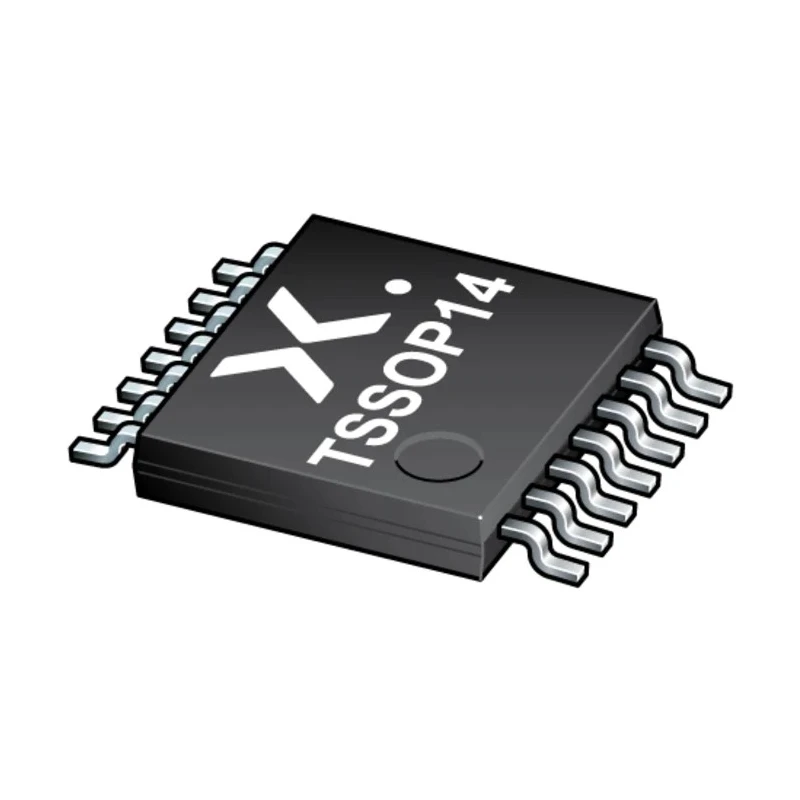

Nexperia 4 2-Input OR Logic Gate, 14-Pin TSSOP, TTL Input, 74HCT Logic Family 74HCT32PW,118

Nexperia 74HCT32PW,118 is a new, quad 2-input OR logic gate semiconductor device designed for surface mount applications. It features TTL input type and is housed in a compact 14-pin TSSOP package, with a length of 5.1 mm and height of 950 micrometers. The device operates reliably within a temperature range of -40°C to 125°C and a supply voltage range of 4.5V to 5.5V.

This logic IC contains four independent 2-input OR gates and integrates clamp diodes on its inputs which allow the use of current limiting resistors to interface inputs with voltages exceeding the VCC supply voltage, enhancing protection and flexibility of circuit design.

With a maximum propagation delay of 23 nanoseconds, the device supports high-speed digital logic functions suitable for complex electronic systems. It is part of the 74HCT logic family, making it compatible with standard TTL input levels.

The 74HCT32PW,118 is effectively used in various industrial and commercial electronics including cellular phones, computing modules, LCD TVs, and industrial controllers. Its low power CMOS technology ensures reduced power consumption which is vital in portable and battery-powered devices.

Apart from its electrical and physical robustness, this device does not implement Schmitt trigger inputs or automotive standards. The country of origin is Thailand, ensuring international manufacturing quality.

Contains four 2-input OR gates integrated into a single semiconductor chip. Wide operating temperature range from -40 degrees Celsius up to 125 degrees Celsius. Supports supply voltage from 4.5 volts minimum to 5.5 volts maximum for flexible operation.

Maximum propagation delay time of 23 nanoseconds at specified load capacitance for fast switching. Compact 14-pin TSSOP surface-mount package ideal for space-constrained PCB designs. Includes input clamp diodes for voltage overdrive protection enhancing reliability.

TTL compatible inputs within the 74HCT logic family standard. Applications include cell phones, industrial controllers, computing devices, and LCD TVs. Explore more semiconductor and Logic Gate solutions at EnvMart for diverse electronic design requirements.
