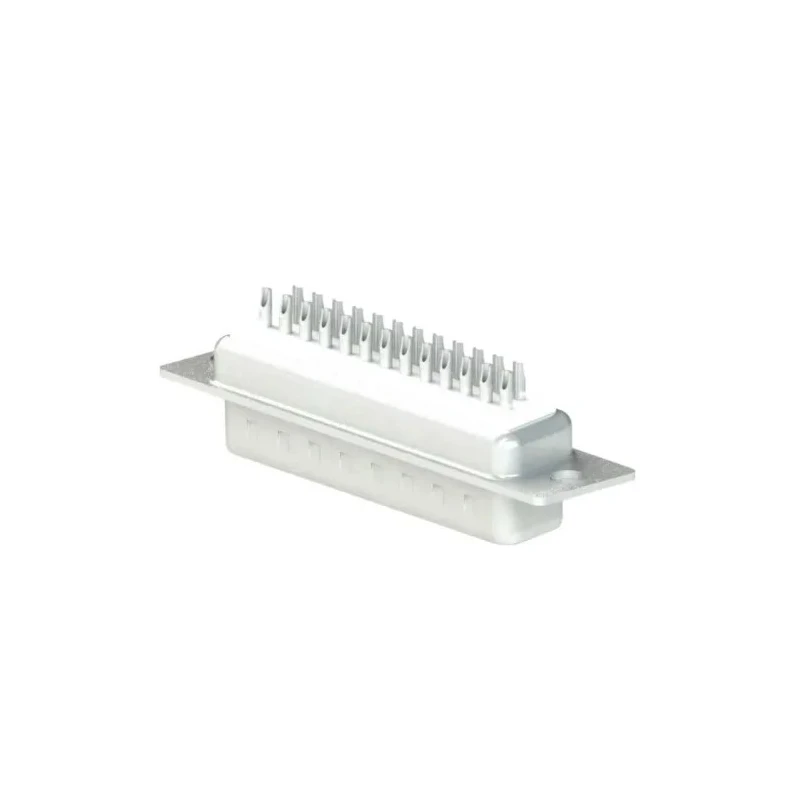

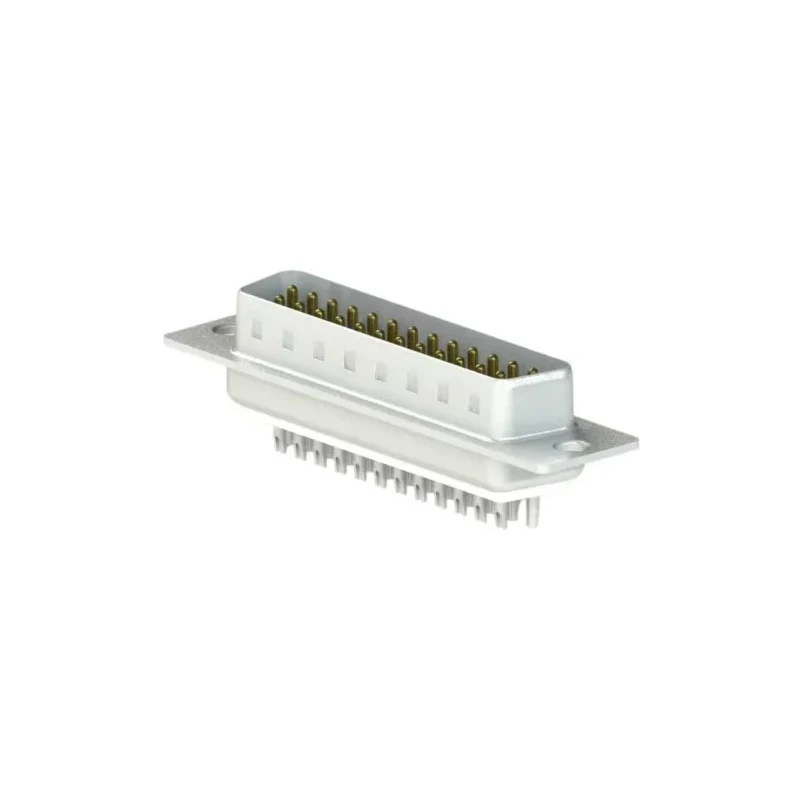

RS PRO 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector with Screw Male 217-7798

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector with Screw Male 217-7798

Name: RS PRO 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector with Screw Male 217-7798
Brand: RS PRO
SKU: 170241



Category D-Sub Connector Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	1kV
Brand	RS PRO
Orientation	Straight
Current	5A
Model	217-7798
Mount Type	Panel Mount
Housing Material	Steel
Contact Material	Brass
Mounting Hardware	Screw
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-50°C
Pitch	2.77mm
Standards/Approvals	RoHS
Contact Plating	Gold Flash
Number of Contacts	25
Contact Gender	Male
Connector Gender	Male
Contact Size	1.09 mm
Connector Type D	D-Sub
D-Sub Shell Size	B

Key Features

The connector has a robust steel housing suitable for panel mounting with screw hardware.
It features 25 brass contacts plated with gold flash for reliable connectivity.
The connector operates at voltages up to 1 kV and supports solder termination.
Operating temperature range is from -50°C to 105°C, making it suitable for harsh environments.
Its straight orientation and D-sub shell size B provide compatibility with standard panel cut-outs.
Ideal for use in communications, data processing, and network equipment.
Provides good EMI/RFI protection due to the robust tin-plated steel shell.
Designed for precise and secure mating with male screw mounting for panel installation.

Product Description

RS PRO 217-7798 is a 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector with male contacts and screw mounting hardware. Manufactured with a durable steel housing and brass contacts plated with gold flash, this D-Sub Connector is built for reliability and long service life.

Featuring a current capacity of 5A and rated for 1 kV voltage, the connector operates efficiently within industrial environments, tolerating temperatures from -50°C to 105°C. The straight orientation and shell size B design ensure compatibility with standard panel configurations.

The robust steel shell offers excellent EMI and RFI protection, making it suitable for critical communication and data processing applications. This connector is ideal for connecting computers, monitors, scanners, networking equipment, industrial apparatus, test instruments, remote sensors, and portable electrical generation systems.

The male connector terminals use solder termination for secure connections. Mounting is achieved via screw flanges, allowing stable panel installation with easy alignment and secure fixing.

Manufactured under RoHS compliance, the product originates from China and is designed for industrial-grade performance. The RS PRO 217-7798 connector ensures dependable electrical and mechanical connections in various industrial and commercial equipment.

The connector has a robust steel housing suitable for panel mounting with screw hardware. It features 25 brass contacts plated with gold flash for reliable connectivity. The connector operates at voltages up to 1 kV and supports solder termination.

Operating temperature range is from -50°C to 105°C, making it suitable for harsh environments. Its straight orientation and D-sub shell size B provide compatibility with standard panel cut-outs. Ideal for use in communications, data processing, and network equipment.

Provides good EMI/RFI protection due to the robust tin-plated steel shell. Designed for precise and secure mating with male screw mounting for panel installation. Explore the RS PRO brand and the extensive range of electronic connectors available on EnvMart for industrial and commercial usage.
