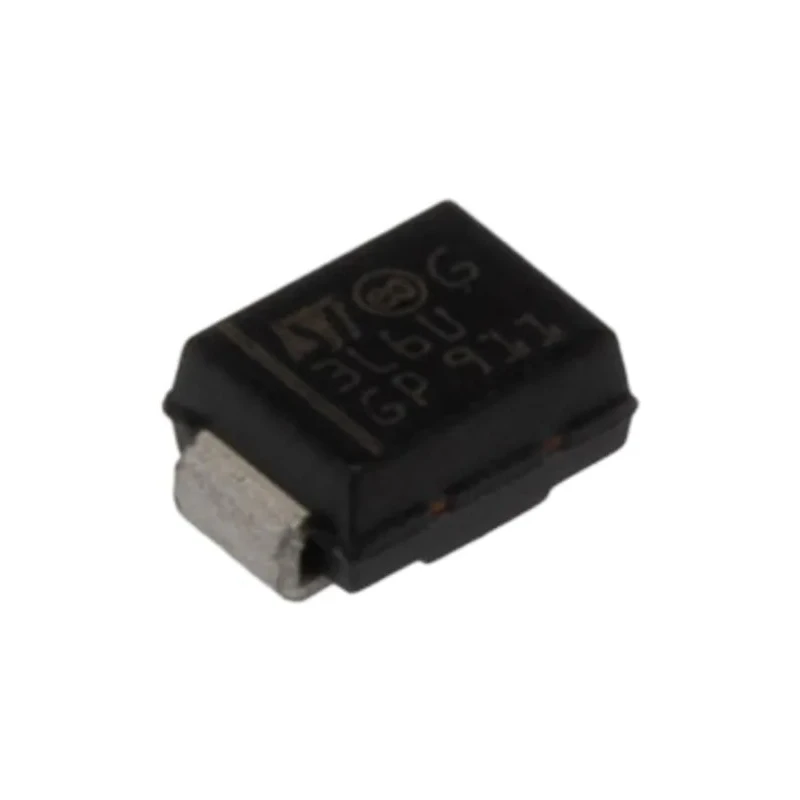

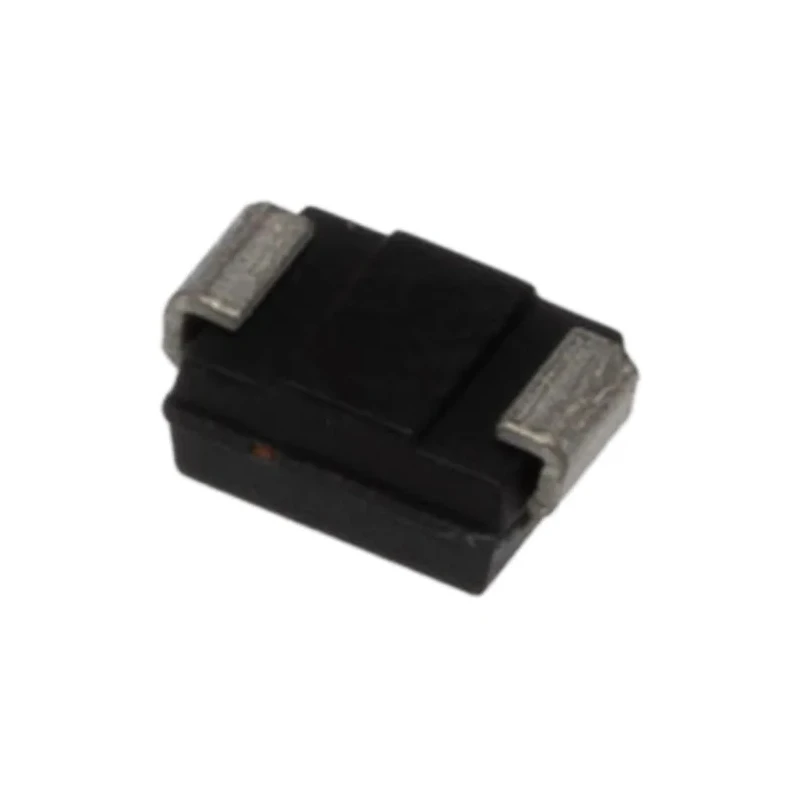

STMicroelectronics 600 V 3 A Diode Switching 2-Pin Surface Mount DO-214AA STTH3L06U

STMicroelectronics STTH3L06U is a high-performance 600 V, 3 A switching diode featuring a 2-pin DO-214AA surface mount package, suitable for robust industrial, electronic, and power supply rectification requirements. It provides efficient switching with a peak reverse recovery time of 85 ns, enabling high-speed operation.

This diode supports a maximum continuous forward current of 3 A and peak reverse repetitive voltage of 600 V, making it reliable for power management in demanding electrical circuits. The maximum forward voltage of 1.3 V reduces conduction losses, improving energy efficiency.

Its compact dimensions (4.6 mm length, 3.95 mm width, 2.45 mm height) and surface mount design support space-saving PCB layouts and ease of automated assembly. It operates reliably over a wide temperature range from -65°C to 175°C, ensuring performance stability in harsh and variable environmental conditions.

The STTH3L06U diode is fully RoHS compliant, underscoring its manufacture with environmentally responsible processes. Typical applications include power rectification in electronic devices, power supplies, and industrial automation systems.

Maximum continuous forward current of 3 A. Peak reverse repetitive voltage rating of 600 V. Fast switching with 85 ns peak reverse recovery time. Compact surface mount DO-214AA package. Wide operating temperature range (-65°C to 175°C).

Low forward voltage drop of 1.3 V for efficient energy use. Peak surge current capacity of 60 A for transient conditions. Meets RoHS environmental standards. Ideal for power supply and industrial electronics applications.

2-pin configuration suited for surface mount PCB assembly. Explore the full range of semiconductor components in EnvMart’s Electronics & Electricals category for dependable industrial and commercial electronic solutions.
