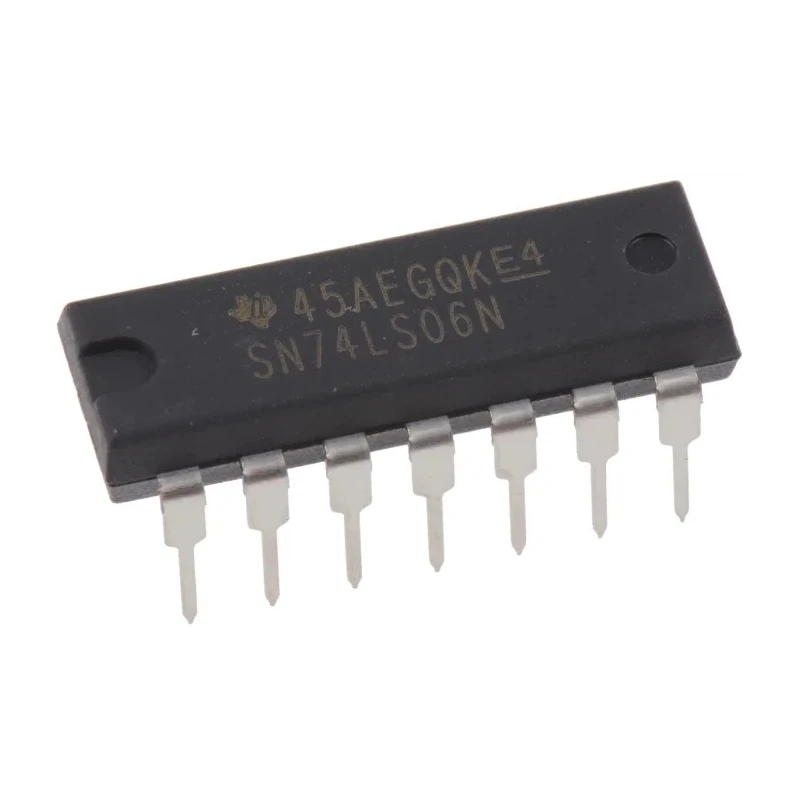

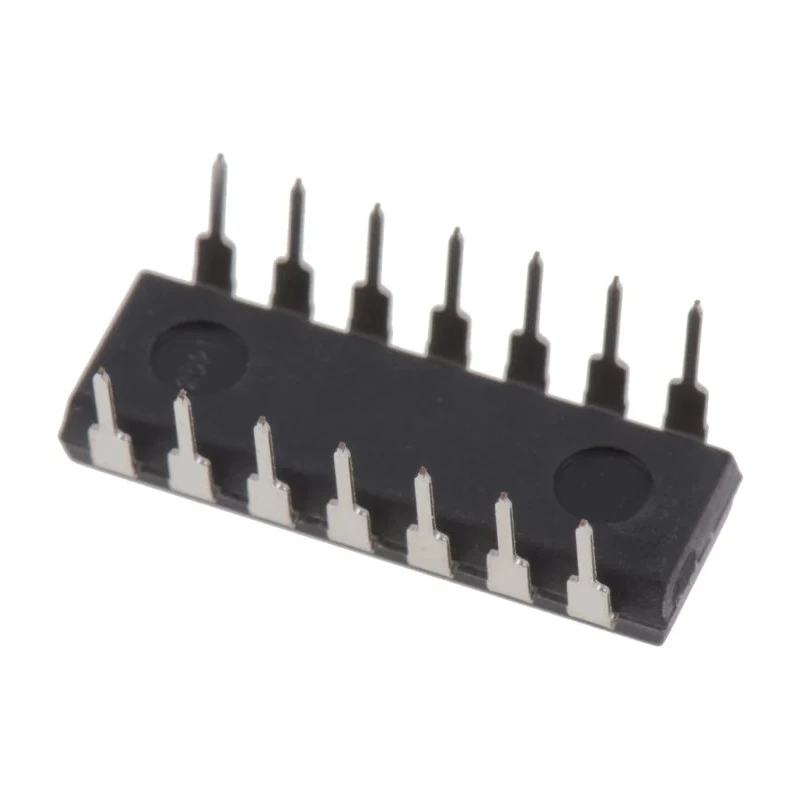

Texas Instruments Inverter Logic IC, 6 Elements, 14-Pin PDIP, TTL Input, Open Collector Output SN74LS06N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | SN74LS06N |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Output type | Open Collector |
| Series | SN74LS06 |
| Input Type | TTL |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Pin Count | 14 |
| Number of Elements per Chip | 6 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | LS |
| Logic Function | Inverting Buffer |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -0.25mA |
| Maximum Propagation Delay Time @ CL | 20ns |
| Maximum Low Level Output Current | 40mA |
Key Features
- Implements 6 inverter buffer elements per chip with open collector outputs.
- Operates within a supply voltage range of 4.75V to 5.25V.
- Maximum propagation delay time at CL is 20ns for fast switching.
- Through hole mount type with 14-pin PDIP packaging ensuring easy integration.
- Operating temperature range from 0°C to 70°C suitable for standard environments.
- Maximum high-level output current is -0.25mA and low-level output current is 40mA.
- Constructed using LS logic family technology for low power consumption.
Product Description
Texas Instruments SN74LS06N is a precision inverter logic IC from the 74LS family, containing 6 inverting buffer elements configured with TTL inputs and open collector outputs. This IC is packaged in a standard 14-Pin PDIP, suitable for through-hole mounting on printed circuit boards.
Powered with a supply voltage range from 4.75V to 5.25V, it provides reliable logic inversion with a maximum propagation delay time of 20ns, enabling fast switching performance required in industrial and electronic applications.
The device operates within a temperature range from 0°C to 70°C, accommodating typical operating conditions in electronics manufacturing, automation, and control system projects. Its maximum output currents, -0.25mA (high level) and 40mA (low level), ensure compatibility with various loads and peripheral circuits.
Physical dimensions of this component are 19.3mm in length, 6.35mm in width, and 4.57mm in height, making it compact for PCB layouts.
Designed with low power Schottky (LS) logic technology, the SN74LS06N minimizes power consumption while maintaining high speeds. It is widely used in industrial, laboratory, and manufacturing fields requiring reliable digital logic inverters.
6 inverter buffer elements integrated in one chip. TTL input logic compatible. Open collector output allows wired-AND logic functionality. Through-hole 14-Pin PDIP package for robust mounting and soldering. Suitable for electronics production, embedded systems, and circuit prototyping.
This Texas Instruments logic inverter IC is ideal for use in electronic assemblies, control systems, and general purpose logic inversion tasks. It complies with industry standards and delivers trusted performance for industrial automation and electronic component manufacturing.
Explore the electronic components category at EnvMart for a wide selection of semiconductor devices including logic ICs, inverters, and other essential components.
Explore more products in our Inverters ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The supply voltage range for this model is from 4.75V to 5.25V.
The maximum propagation delay time at CL is 20ns, allowing for fast switching performance.
It features open collector outputs, which allow for wired-AND logic functionality.
The operating temperature range is from 0°C to 70°C, suitable for standard environments.
This inverter logic IC contains 6 inverter buffer elements per chip.
The dimensions are 19.3mm in length, 6.35mm in width, and 4.57mm in height.
It uses a through-hole mounting type with a 14-pin PDIP package for easy integration.
The maximum high-level output current is -0.25mA.
The maximum low-level output current is 40mA.
It is constructed using LS logic family technology, which is designed for low power consumption.
This model is compatible with TTL input logic.
It is widely used in industrial automation, electronic assemblies, and control systems requiring reliable digital logic inversion.
