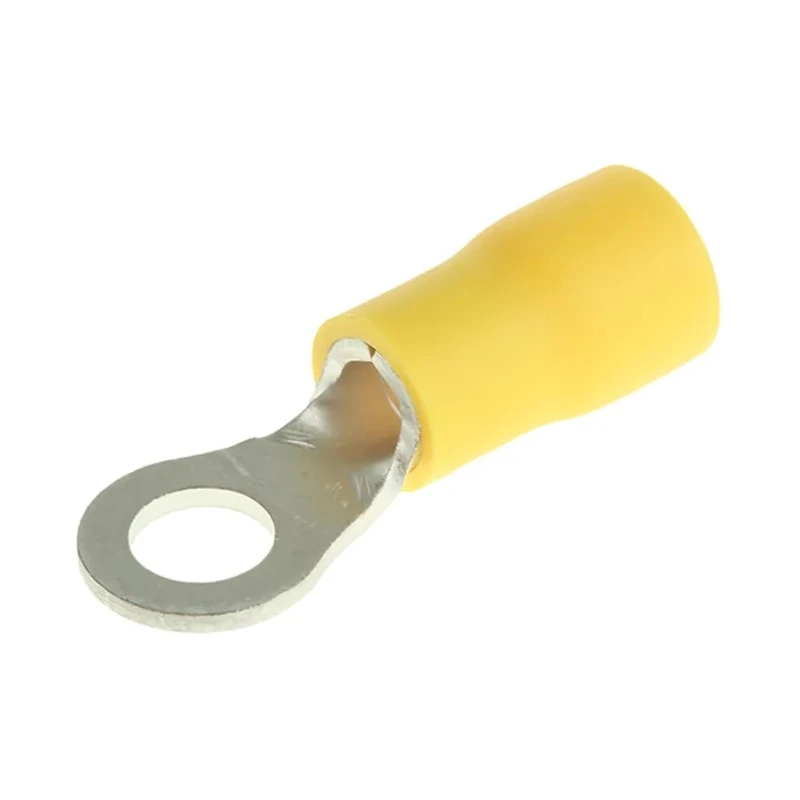

JST FV Insulated Ring Terminal M5 Stud Size 12 AWG 10 AWG Wire Size Yellow FVWS5.5-5(LF)
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | JST |
| Colour | Yellow |
| THICKNESS | 1mm |
| Model | FVWS5.5-5(LF) |
| Insulation | Insulated |
| Overall Length | 26.5mm |
| Series | FV |
| Insulation Material | Vinyl |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 9.5mm |
| Inner Ring Diameter | 5.3mm |
| Stud Size | M5 |
Key Features
- Manufactured with oxygen-free copper providing excellent electrical conductivity.
- Vinyl insulation ensures high flame resistance and added electrical insulation.
- Overall length measures 26.5 mm for compact and reliable installation.
- Flared vinyl insulation provides ease of wire insertion and durability.
- Compatible with M5 stud size with 9.5 mm outer ring diameter and 5.3 mm inner ring diameter.
- Thickness of 1 mm for sturdy mechanical strength.
- Suitable for wire sizes ranging from 12 AWG (2.6 mm²) to 10 AWG (6.6 mm²).
- High temperature resistance up to 105°C ensures safe operation in demanding conditions.
Product Description
JST FVWS5.5-5(LF) insulated ring terminal provides a secure and reliable electrical connection for various industrial and electronic applications. This ring terminal features an M5 stud size and supports wire sizes from 12 AWG to 10 AWG, making it versatile for multiple wiring scenarios. The terminal is constructed using oxygen-free copper, which offers excellent electrical conductivity and corrosion resistance, ensuring durability and long-lasting performance.
The insulation is made from yellow vinyl, offering high flame resistance, electrical insulation, and protection against environmental stress. The flared vinyl insulation design facilitates smooth wire entry, minimizing the risk of damage during installation and enhancing mechanical strength. The terminal has a compact overall length of 26.5 mm, an outer ring diameter of 9.5 mm, an inner ring diameter of 5.3 mm, and a thickness of 1 mm, providing a robust connection interface.
This product is rated for high-temperature resistance of up to 105°C, suitable for demanding industrial environments. The insulated ring terminal is widely used in electronic components, power connectors, and wire terminal assemblies where dependable connection integrity is critical. Manufactured in Japan, the terminal meets stringent quality requirements for electrical components.
Oxygen-free copper construction for optimal electrical properties. Vinyl insulation ensures flame resistance and electrical safety. Flared vinyl insulation for ease of use and durability. Supports M5 stud size with precise dimensions for secure fitting.
Compatible with 12 AWG to 10 AWG wire sizes. High temperature resistance up to 105°C. Compact size suitable for tight spaces in industrial installations. Manufactured in Japan for premium quality assurance.
For professionals seeking reliable wire terminal solutions, JST insulated Ring Terminals provide proven performance in electronics, power distribution, industrial automation, and HVAC systems. Explore related products and detailed specifications on EnvMart to meet your connector and terminal needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes ranging from 12 AWG (2.6 mm²) to 10 AWG (6.6 mm²).
It is compatible with an M5 stud size, ensuring a secure fit.
The terminal has an overall length of 26.5 mm, an outer ring diameter of 9.5 mm, an inner ring diameter of 5.3 mm, and a thickness of 1 mm.
The insulation is made from yellow vinyl, which provides high flame resistance and electrical insulation.
It has a high temperature resistance of up to 105°C, making it suitable for demanding conditions.
This product is manufactured in Japan, meeting stringent quality requirements for electrical components.
The flared vinyl insulation design facilitates smooth wire entry, minimizing the risk of damage during installation.
It is constructed using oxygen-free copper, which provides excellent electrical conductivity and corrosion resistance.
It is widely used in electronic components, power connectors, and wire terminal assemblies where dependable connection integrity is critical.
The thickness of 1 mm provides sturdy mechanical strength, ensuring a reliable connection.
The terminal is yellow in color, which is typical for vinyl insulated terminals.
This model is part of the FV series of insulated ring terminals.
